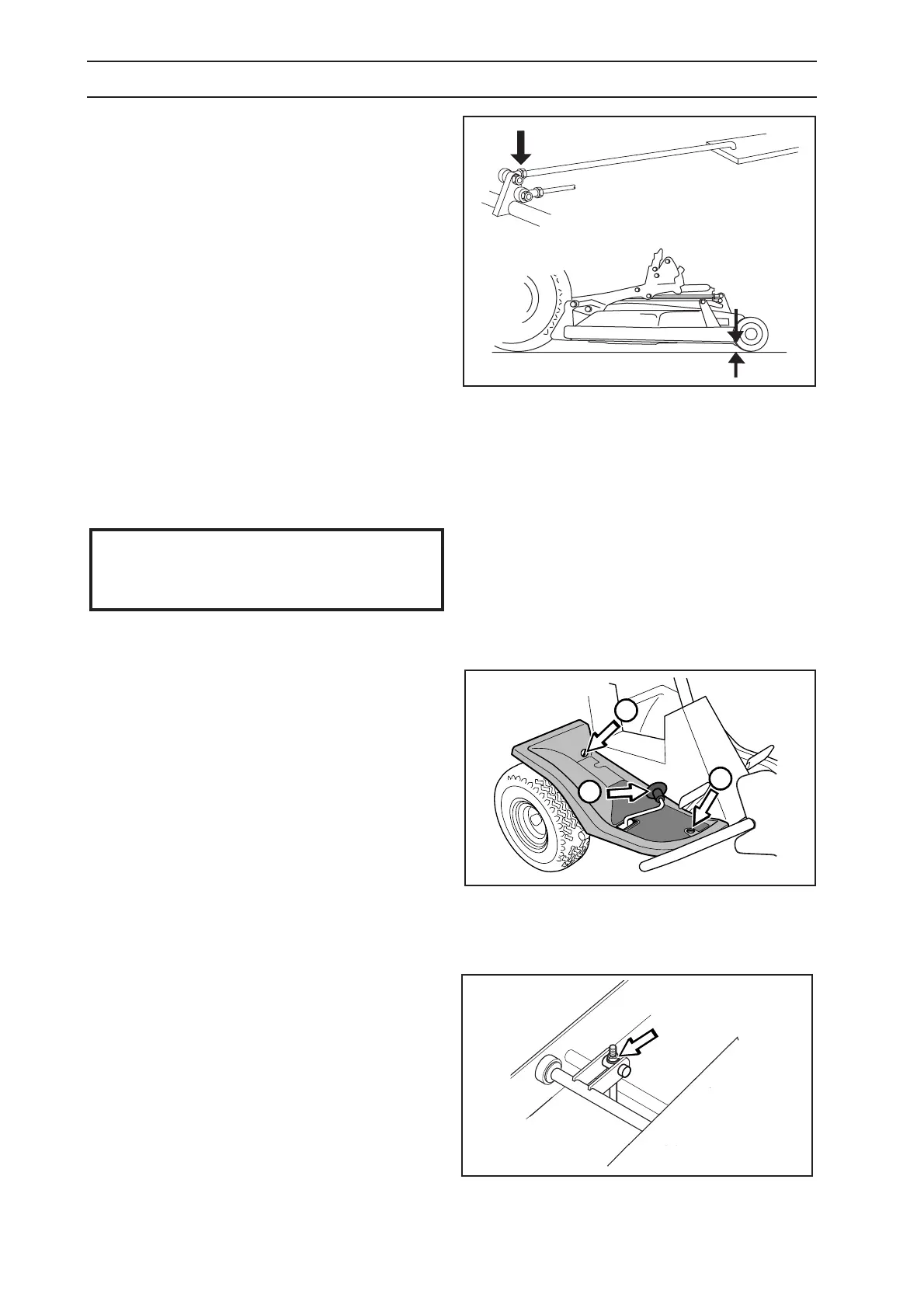

REPAIR INSTRUCTIONS
Cutting height
1. Loosen the nut on the height adjustment
strut.
2. Adjust so that the distance between
ground and the cutting unit’s edge at the
front of the cover is for:
• Combi 94 40 mm
• Combi 103 40 mm
• Combi 112 35 mm
3. Tighten the nut.
4. Recheck that the parallelism has not
changed. If so, the parallelism must be
readjusted.
5. Check and adjust if necessary the
cutting unit’s ground pressure as
described in the next section.
6. Attach the nose cover.
Adjusting the Cutting Height Range
1. Remove the right-hand wing cover.
2. Raise or lower the entire cutting range by
screwing the nuts up or down.
If the highest cutting height is raised by
5 mm/3/16", the other fixed cutting heights
will also be raised by the same amount.
8009-028
8009-556
Adjusting the cutting height
IMPORTANT INFORMATION
When changing the cutting unit, you must
readjust the parallelism and cutting height.
6017-003
The Right-hand Wing Cover
2
11
3
1
8009-281
Adjusting the cutting height range
To Next Page
