REPAIR INSTRUCTIONS
Replacing the Steering Cables

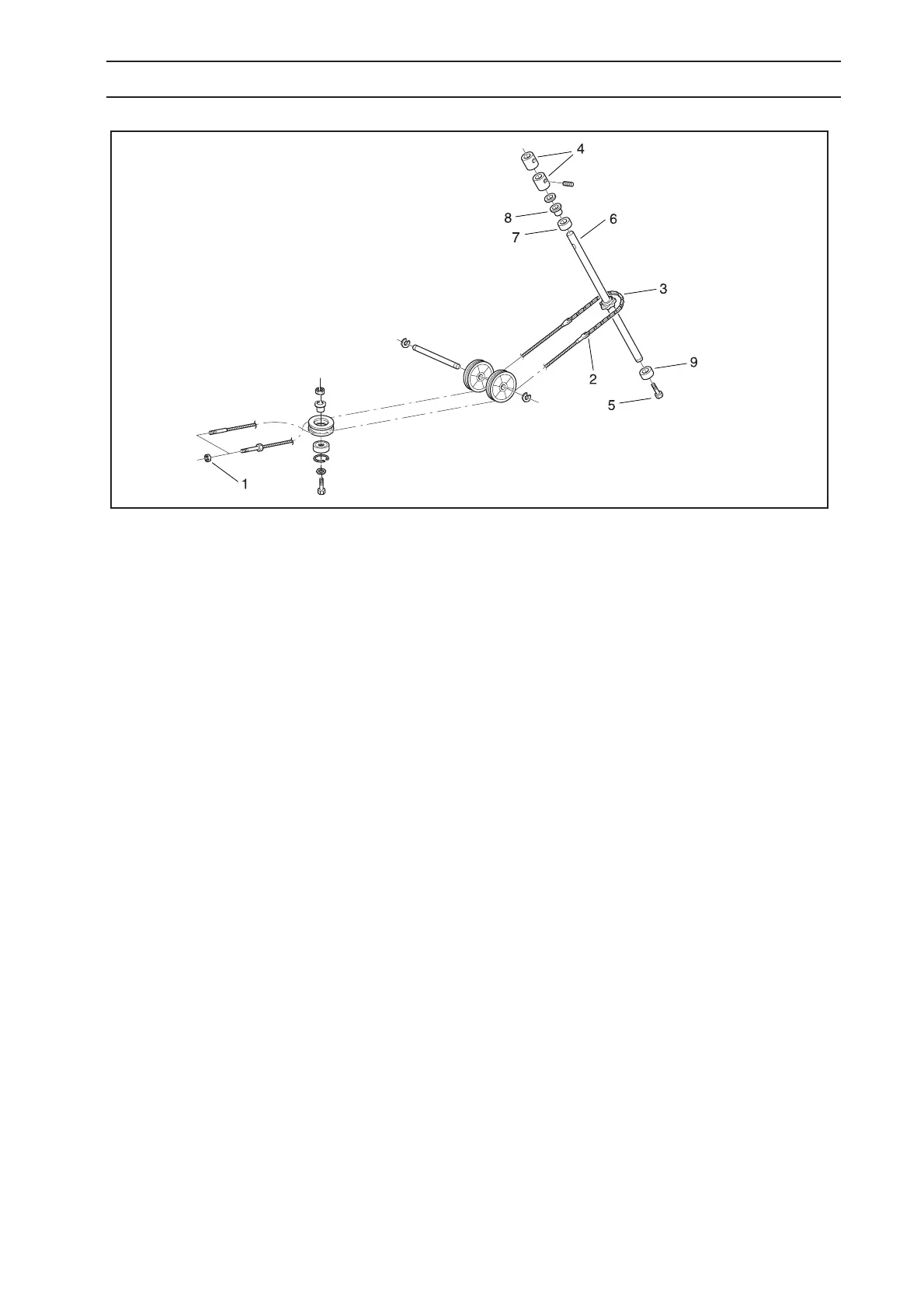

Loosen the steering cables’ rear mount (1).
Remove the frame plate.
Loosen the steering cables’ front fixture (2) by the steering chain (3) and pull out the steering cables
through the frame.
Note If the old cables are whole, the new cables can be attached to the old when they are pulled out
through the frame. The new cables will then automatically sit in the proper position.
The steering cable’s chain coupling should be fitted with the spring lock upwards.
Hold the cables with, for example, a wrench when mounting so that they do not twist.
Ensure that the steering wheel is in the centre position when the rear wheels are centred. Re-set the chain
on the power steering sprocket or adjust the rear fixture for the steering cables (1) as needed.
When the new cables are mounted, the cable tension should be checked (see “Checking and Adjusting the
Steering Cables”).
