Husqvarna TE 250-310 2012 I.E. User Manual

H.56
TE 250 - 310 2012 I.E. / TE 250 - 310 2012 I.E. USA
TC 250 2012 - TC 250 2012 I.E. USA
TXC 250 - 310 2012 I.E. USA
H11085
ENGINE REASSEMBLY
Workshop Manual Ed. 12-2011

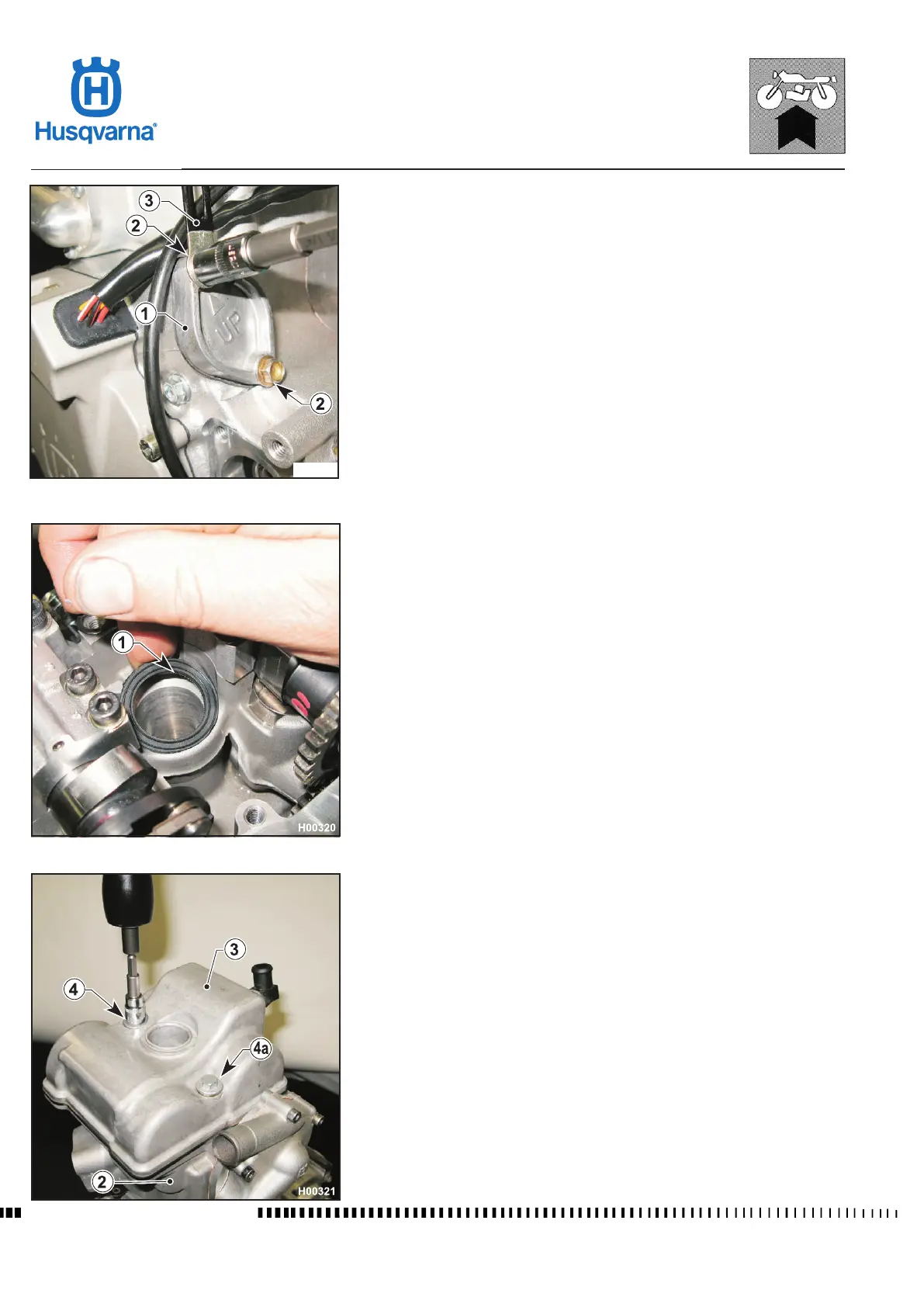

Starter motor seat cover installation (TC)
Ret the cover (1) with its gasket making sure the arrow is pointing "UP".
Tighten the screws (2) with the wire clip (3) placed on the upper screw.
Cylinder head cover, spark plug (TE-TXC)
Position the central seal (1).
Fit the head cover (3) with its gasket to the head (2).
Tighten the screws (4) and (4a) (8 Nm, 0.8 Kgm, 5.9 ft/lb).
Screw 4 - L=23.4 mm
Screw 4a - L=31.3 mm
Install the spark plug (10-12 Nm, 1-1.23 Kgm, 7.2 -8.9 ft/lb).
