ELECTRICAL SYSTEM
Workshop Manual Ed. 12-2011

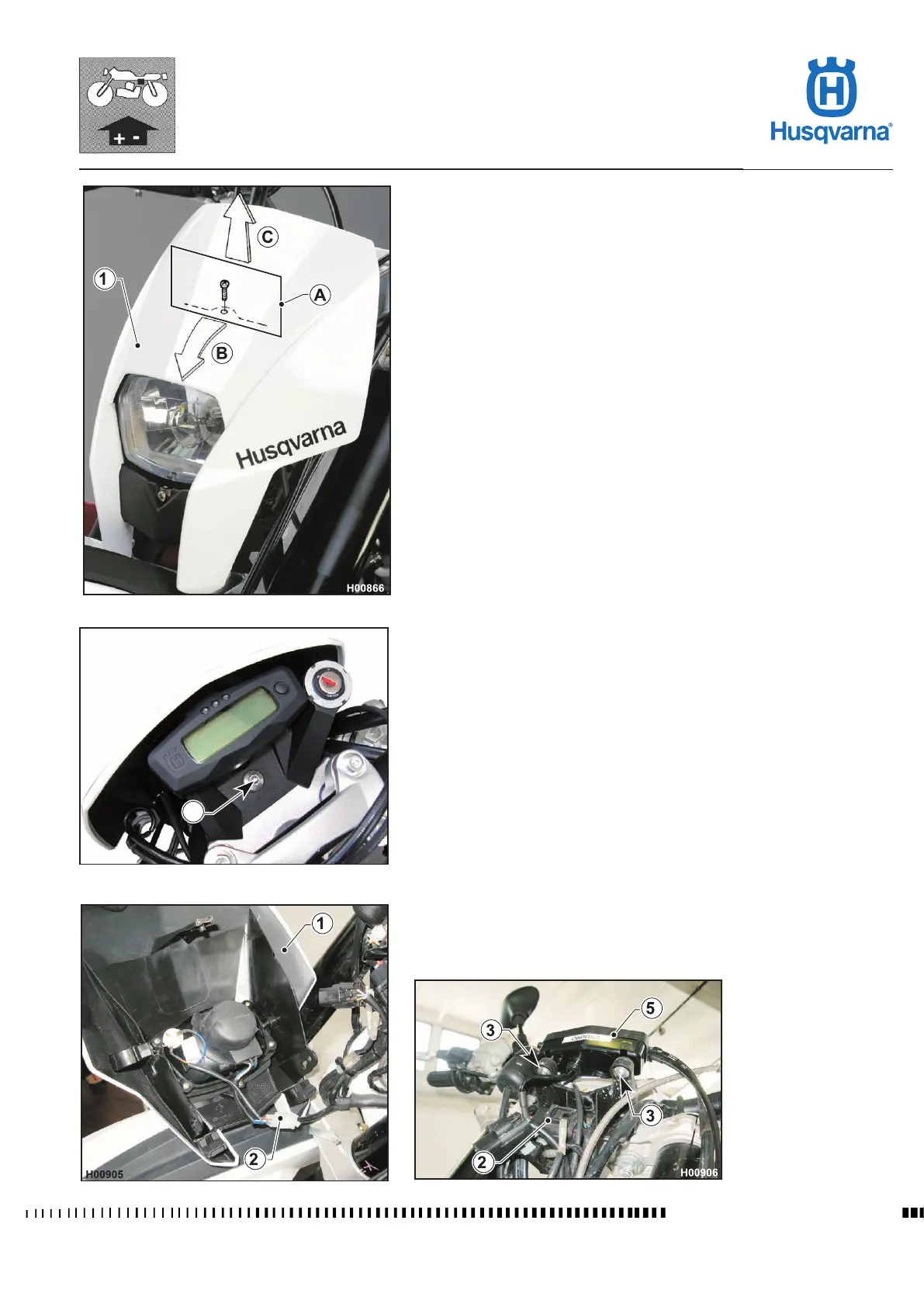

Dashboard replacement (TE)
- Remove the upper retaining screw securing headlamp fairing to dashboard
bracket (A);
- slide the headlamp fairing (B) forward and pull upwards (C) to ease it off the
two lower mounts;
- disconnect the connector (2) and remove the headlamp fairing (1);
Remove the two retaining screws (3) securing the dashboard to its bracket,
disconnect the connector (4) and remove the dashboard (5).
To ret the dashboard, reverse the disassembly procedure.
Troubleshooting
Charging system (TE-TXC)
A battery that does not hold charge might be a symptom of:
1) current loss (see paragraph "Current loss at the battery");
2) incorrect voltage (see paragraph "Regulated voltage");
3) no continuity in generator (see paragraph "Checking generator stator wind-
ings resistance");
4) incorrect no-load performance of generator (see paragraph "Generator no-
load performance")
5) voltage regulator malfunction (see paragraph "Voltage regulator/rectier
inspection")
- a battery overload indicates:
1) faulty voltage regulator (see paragraph "Voltage regulator/rectier inspec-
tion");
2) faulty battery (see paragraph "Current loss at the battery").
Starting system (TE-TXC)
If the starter motor does not start, this might be a symptom of:
1) faulty solenoid starter (see paragraph "Solenoid starter inspection");
2) loose starter motor cable;
3) faulty starter motor (see paragraph "Starter motor inspection");
4) at battery (see paragraph "Battery charger").
Electronic ignition system
A weak or missing spark might be a symptom of:
1) incorrect connections in the electrical system;
2) faulty spark plug or wrong heat rating or incorrect spark plug gap (see para-
graph "Spark plug");
3) faulty ignition coil (see paragraph "Checking coil windings resistance");
4) faulty spark plug cap (see paragraph "Checking coil windings resistance").
