SETTINGS AND ADJUSTMENTS
Workshop Manual Ed. 12-2011

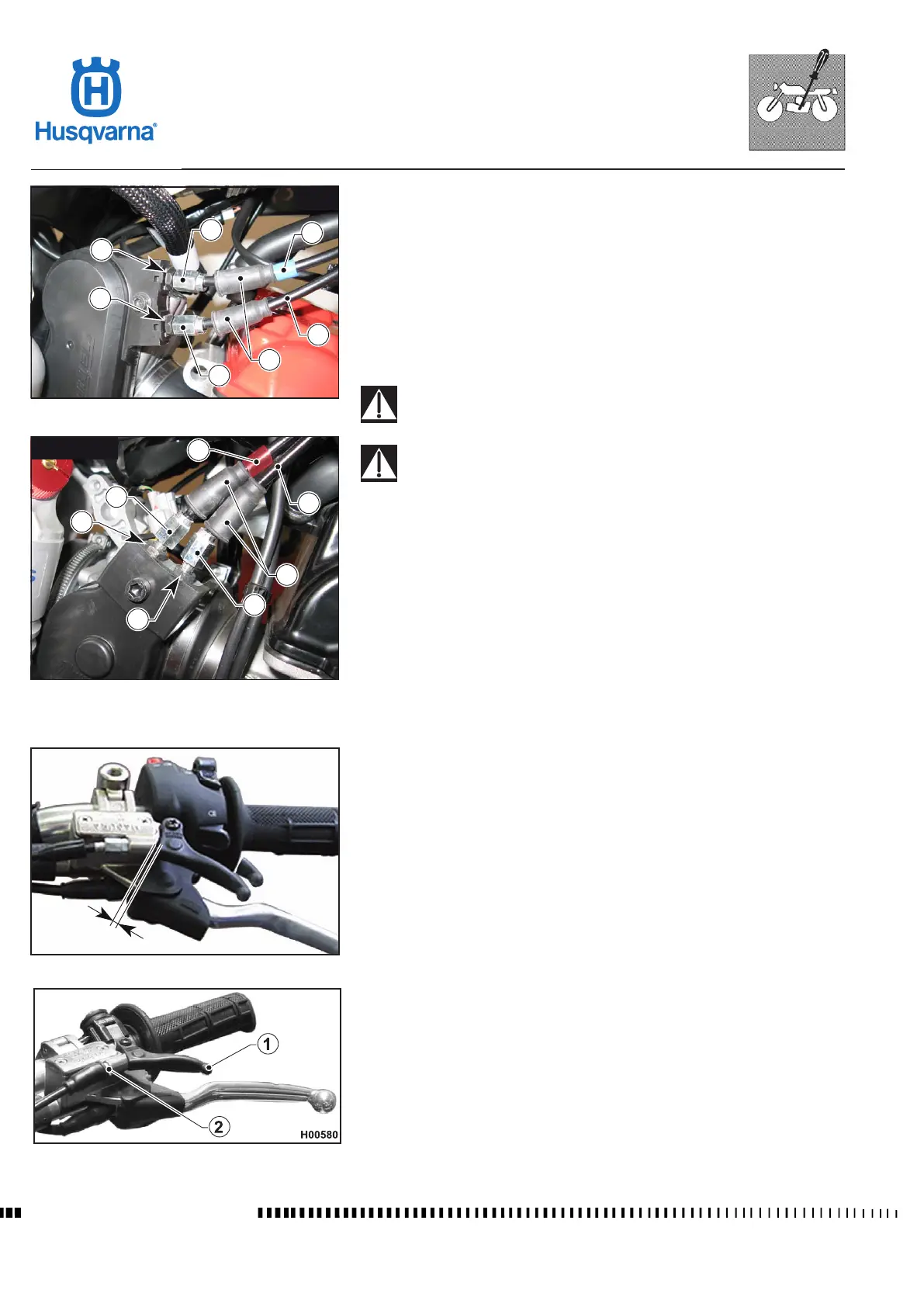

Adjustment throttle cable
To check the correct adjustment of the throttle operate as follows:
- Remove rubber caps (1);
- By moving the opening cable (2) back and forth, check that free play is 3
mm;
- By moving the closing cable (3) back and forth, check that free play is 1
mm;
- If it does not happen, loosen the nut (4) and appropriately turn the adjuster
screw (5);
(loosen it to decrease clearance, tighten it to increase it);
- After adjustment block the nut (4).
Operation with damaged throttle cable could result in an unsafe
riding condition.
Exhaust gas contains poisonous carbon monoxide. Never run the
engine indoors.
To replace the cables, you will need to remove the fuel tank as described in the
relevant paragraph.
Enrichener lever play adjustment
The lever (1) holder features an adjuster screw (2) to adjust free play. Free play
should be about 3 mm: if not so, loosen the check nut and turn the adjuster screw
as required (loosen to decrease play or tighten to increase it).
