Husqvarna TE 250-310 2012 I.E. User Manual

M.54
TE 250 - 310 2012 I.E. / TE 250 - 310 2012 I.E. USA
TC 250 2012 - TC 250 2012 I.E. USA
TXC 250 - 310 2012 I.E. USA
ELECTRICAL SYSTEM
Workshop Manual Ed. 12-2011

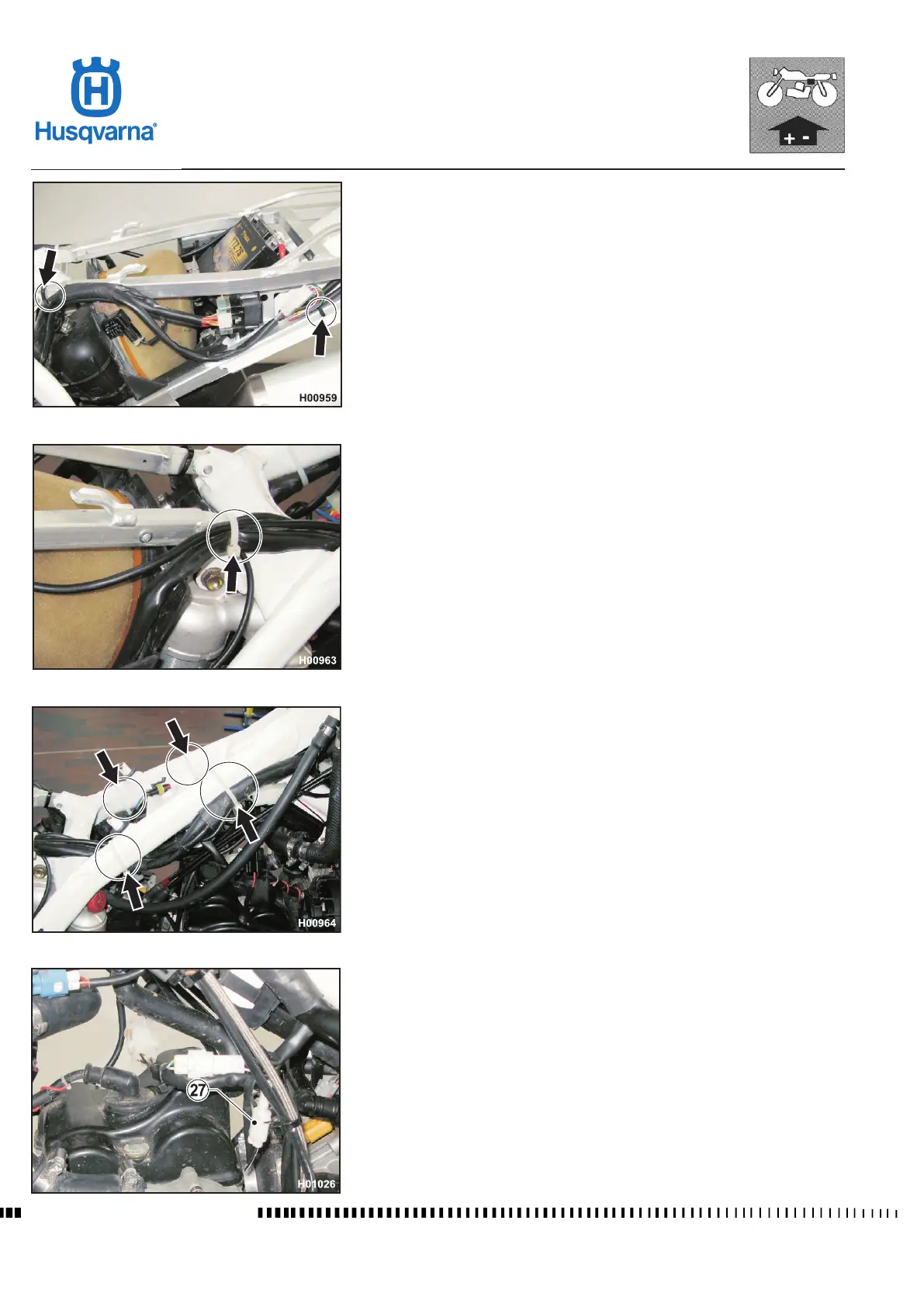

• Securing the wiring harness to rear chassis right side
Strap wiring to rear chassis with clips as shown in the gure.
• Securing the wiring harness to rear chassis left side
Secure wiring harness with a clip as shown in the gure.
• Securing the wiring harness to the chassis
Strap wiring harness to chassis on right and left side with clips as shown in the
gure.
Position the GPS and Pick-Up connectors (27) as shown.
