9. The set screw and adjusting bolt are now
accessible.
• The set screw must be backed out before
turning the adjusting bolt (
1
/8 inch set
screw). The set screw serves as a positive
stop.
• The adjusting bolt should be turned no
more than a half-turn before inspecting
glass position and operation.
• Turning the adjusting bolt clockwise will
raise the front glass.
• Turning the adjusting bolt counter-
clockwise will lower the front glass.
• Once the glass position is set, tighten the set
screw (positive stop).
10. Once glass is positioned and operating
correctly, re-install components and
hardware removed.
Note: The door frame is designed to have a
tight fit. A putty knife between the top of the
frame and the insulated panel will help guide
it into position.
11. Re-apply caulk or silicone as required.
12. Verify glass is positioned and operating
correctly.

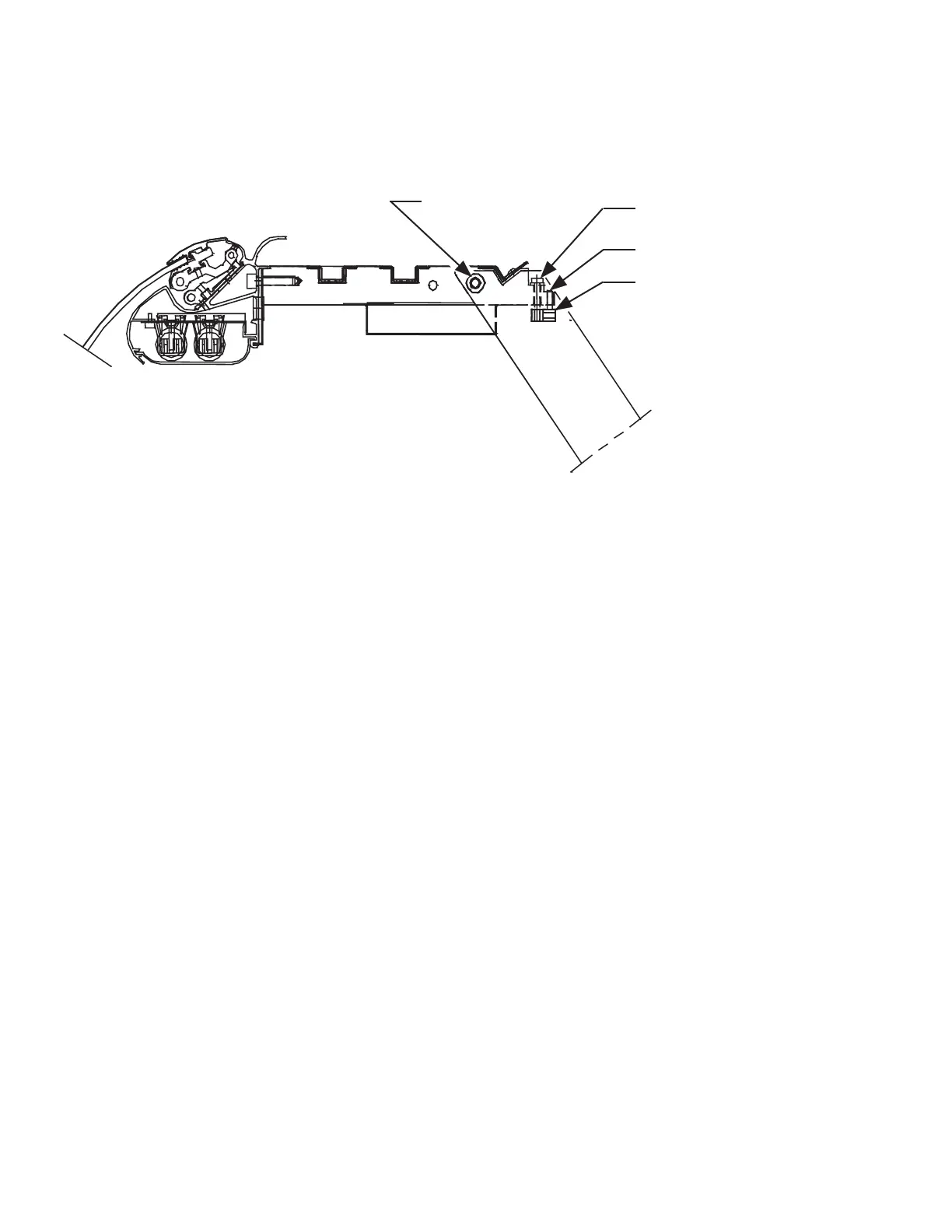

Adjusting Bolt
Set Screw
Positive Stop
Pivot Support
