109706 10/08 8-7

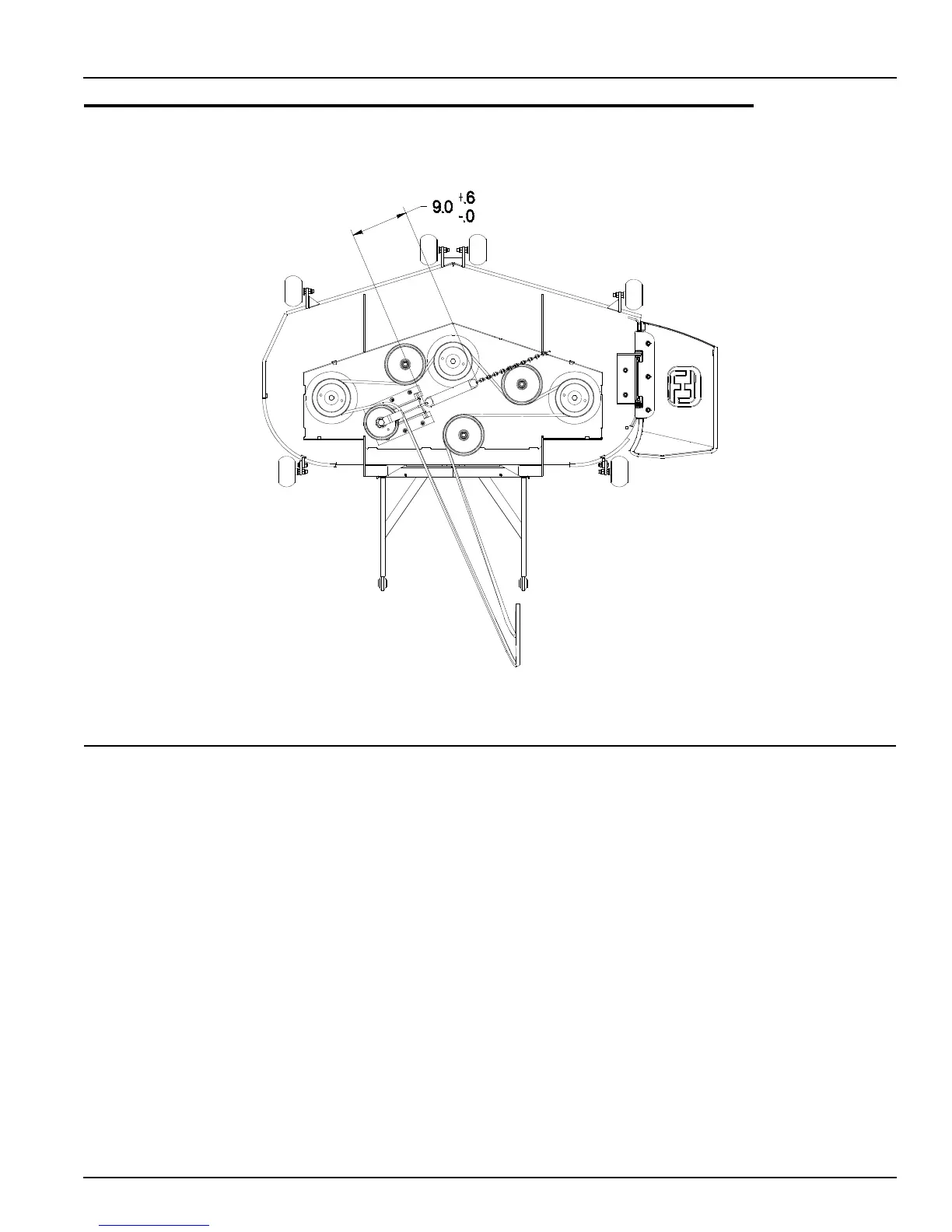

60" Side Disch. XR7 Deck Belt Routing/Tensioning
NOTES:
1. Spring length after tensioning belt. Measure spring from outside of hook
to outside of hook.
2. Route belt as shown.
