HUSTLER Diesel Z Parts Manual

10-8 109706 10/08

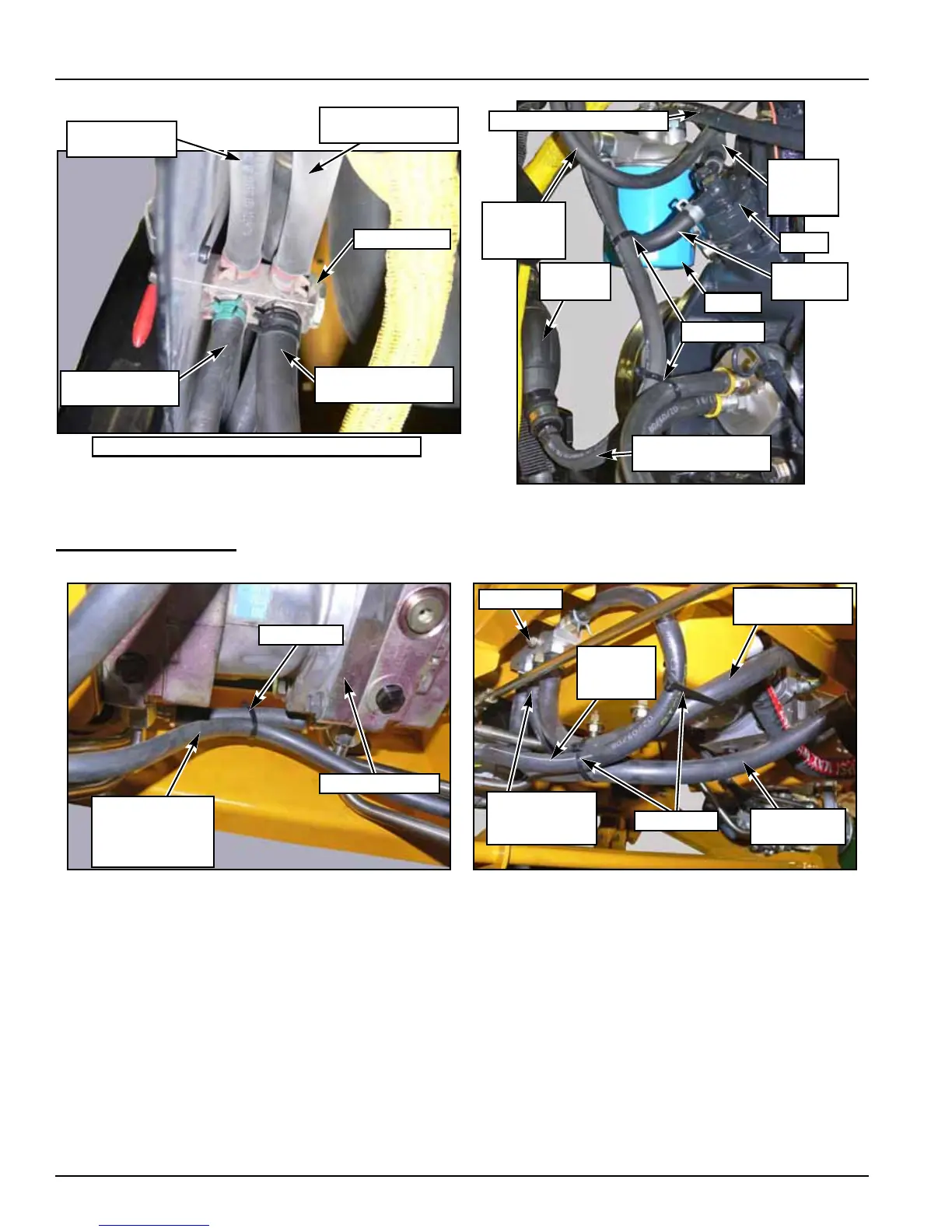

Fuel valve and fuel filter (FIG. 19 & FIG. 20)
Hydraulic routing
Hydraulic hose routings (FIG. 21, FIG. 22 & FIG. 23)
FIG. 19 FIG. 20
FIG. 21 FIG. 22
FUEL VALVE
RETURN LINE
LEFT SIDE
FROM ENGINE
RETURN LINE
TO PRIMING BULB
SUPPLY LINE
FROM LEFT TANK
SUPPLY LINE
LEFT LINES SHOWN—RIGHT SIDE SIMILAR
ENGINE
RETURN
FILTER
FILTER TO INJECTORS
TO PRIMER BULB
SUPPLY LINE
TO VALVE
PUMP TO
FILTER
PRIMING
BULB TO
PUMP
PUMP
PRIMING
BULB
TIE STRAP
HYDRO PUMPS
TIE STRAP
HYDRO HOSE
FROM LEFT
WHEEL MOTOR
TO MANIFOLD
MANIFOLD
HOSE TO
RESERVOIR
MANIFOLD TO
LEFT WHEEL
MOTOR
MANIFOLD TO
TANDEM PUMP
TO RIGHT
WHEEL
MOTOR
TIE STRAP
