HUSTLER Diesel Z Parts Manual

10-3 109706 10/08
Assembly Pictures and Aids
General Information for all models

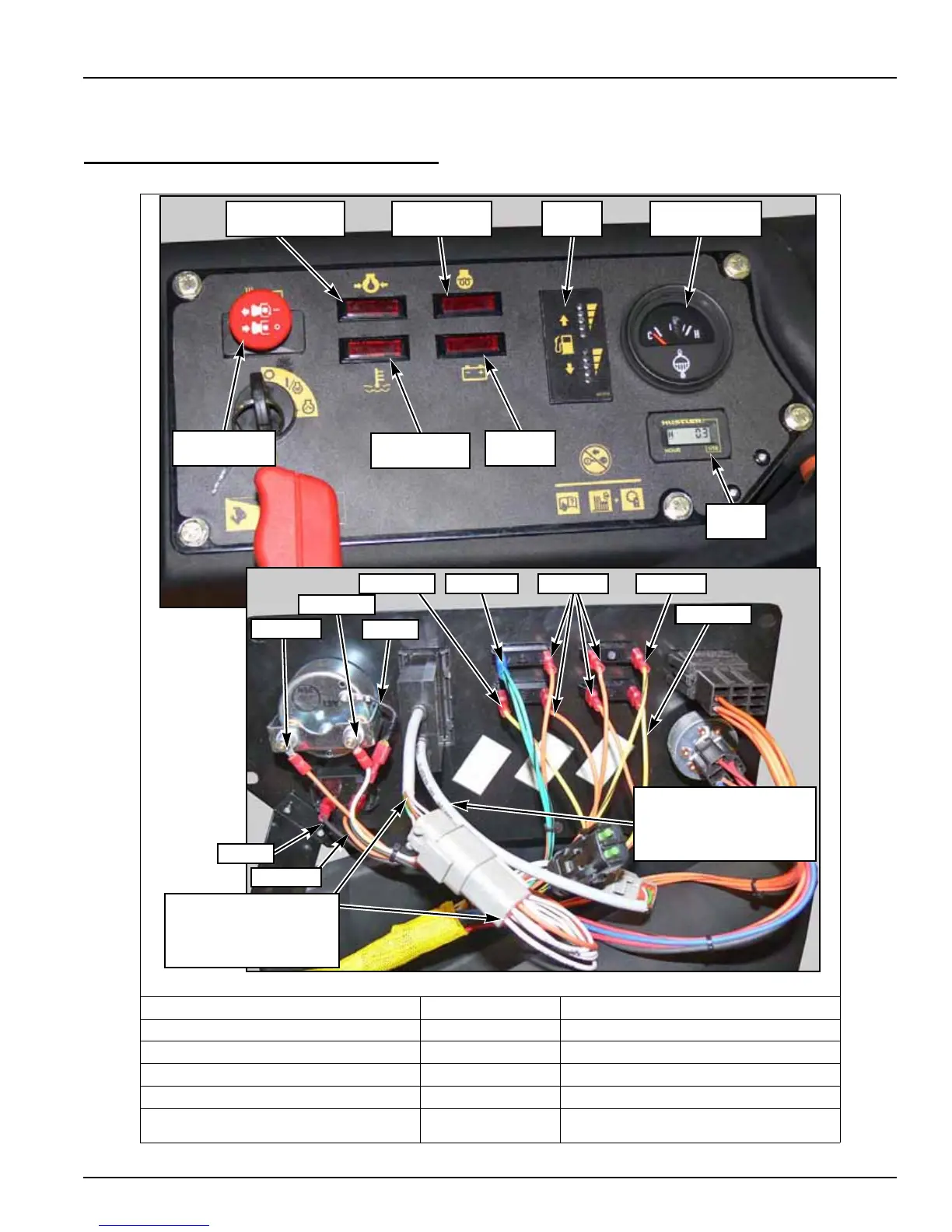

Instrument panel and wire connections (FIG. 1).
FIG. 1
Oil Pressure Light Orange Yellow w/ Black stripe
Glow Plug Light Orange Green w/ Black stripe
Coolant Temperature Light Orange Yellow w/ White stripe
Charge Light Orange Yellow w/ Red stripe
Hour Meter Orange Black
Coolant Temperature Gauge
Orange ring & Black
spade
White w/ Yellow stripe ring
PTO CLUTCH
SWITCH
CHARGE
LIGHT
COOLANT
TEMP. LIGHT
OIL PRESSURE
LIGHT
GLOW PLUG
LIGHT
FUEL
GAUGE
COOLANT
TEMP. GAUGE
HOUR
METER
YEL/BLK
YEL/WHT
ORANGEGRN/BLK
YEL/RED
WHT/YEL
ORANGE
ORANGE
BLACK
BLACK
CONNECT LONG
SENSOR WIRE TO
SHORT WIRE HARNESS
CONNECTOR
CONNECT SHORT
SENSOR WIRE TO
LONG WIRE HARNESS
CONNECTOR
