HUSTLER Diesel Z Parts Manual

6-4 109706 10/08

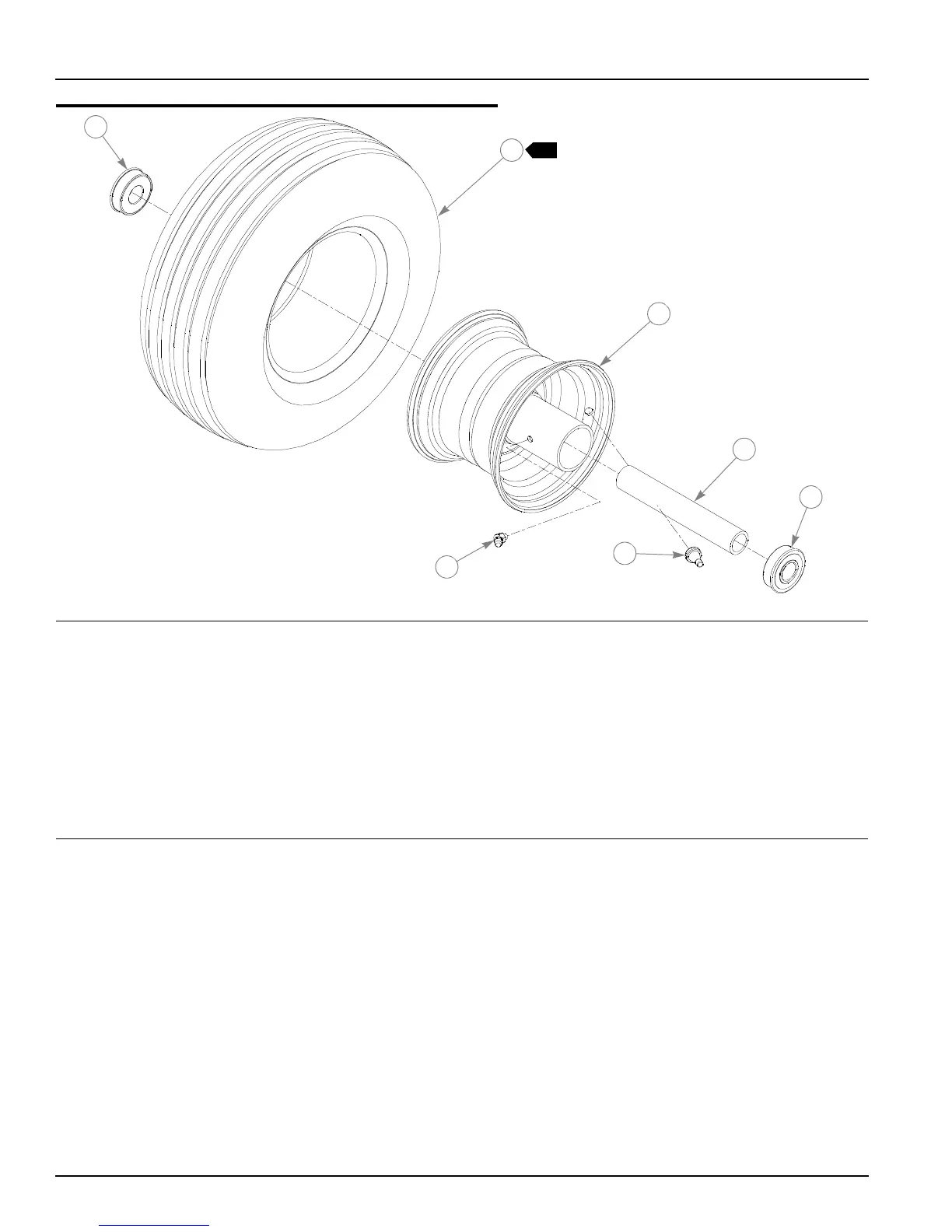

Front Wheel Breakdown—747782
NOTES:
1. Inflate tire to 8-12 psi.
ITEM
NO.
SERVICE
PART NO.
MFG.
PART NO.
QTY DESCRIPTION
1 039677 N/A 2 WHEEL BEARING
2 747741 N/A 1 13 X 6.50 TIRE
3 747832 N/A 1 6 X 4.5 WHEEL
4 782771 N/A 1 BEARING SPACER
5 019521 N/A 1 TIRE VALVE
6 015511 N/A 1 GREASE FITTING 45 DEG 1/4
1
1
1
2
4
3
5
6
