HUSTLER Diesel Z Parts Manual

10-27 109706 10/08
Belt replacement

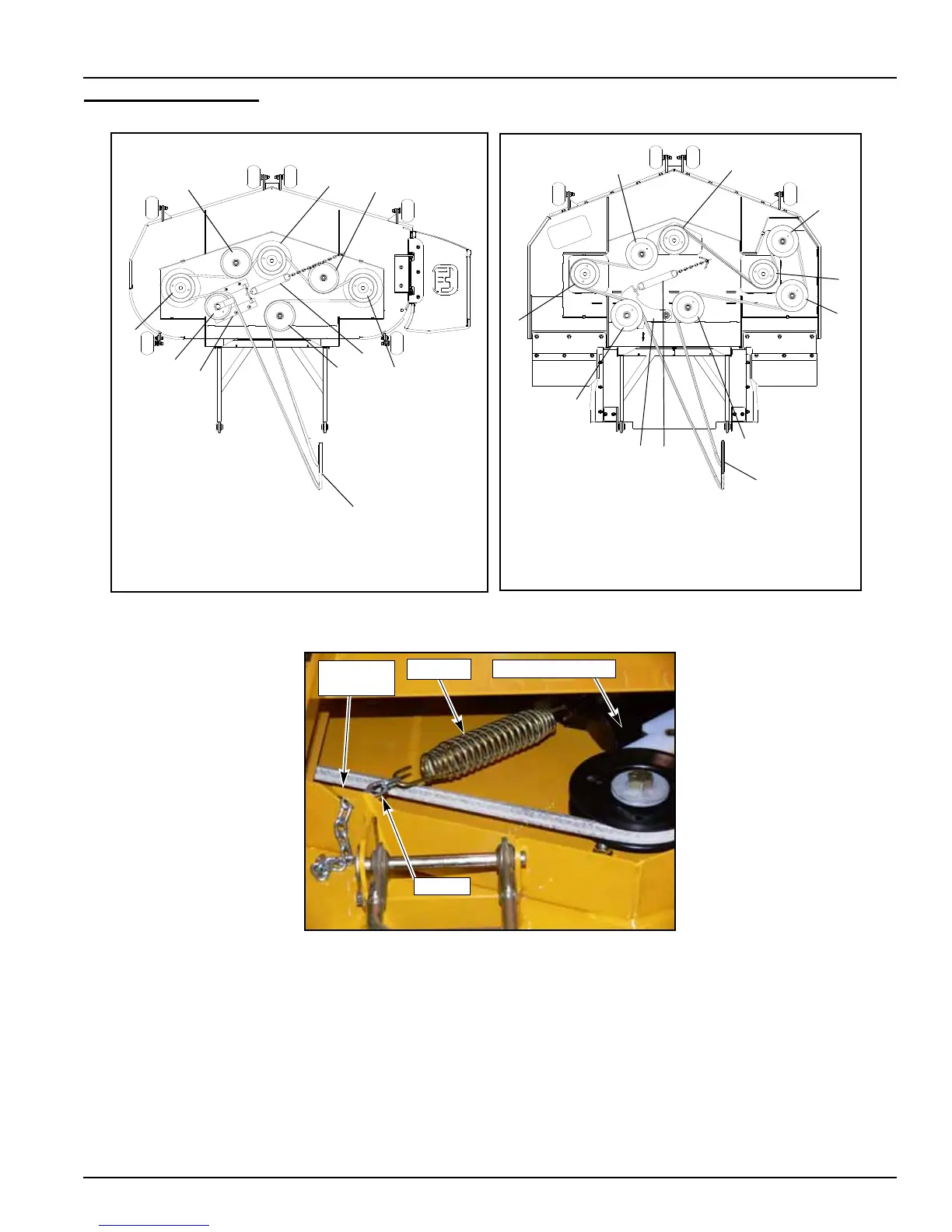

FIG. 43, FIG. 44, FIG. 45, FIG. 46 and FIG. 47 show diagrams and descriptions of the unit’s belt drive systems.
FIG. 43 FIG. 44
FIG. 45
2
1
2
2
5
5
4
6
3
1. Spindle drive belt
2. Deck blade spindle pulley
3. Spindle belt tension idler
4. Spindle belt tension idler spring
(spring 8.4" at operation)
5. Deck belt idler pulley
6. Idler arm
Deck Belt Drive Layout
5
1. Spindle drive belt
2. Deck blade spindle pulley
3. Spindle belt tension idler
4. Spindle belt tension idler spring
(spring 8.4" at operation)
5. Deck belt idler pulley
6. Idler arm
Deck Belt Drive Layout
2
1
2
2
5
5
4
6
3
5
5
ANCHOR
SPRING
TENSION IDLER
CHAIN
BRACKET
