3. Disassembling Procedures And Parts
Description
3.1 Removing the main body cover
3.1.1 Removing the Rear cover of the main body
Unscrew the screws and remove the Rear Cover Ass’y R (or Front cover
Ass’y L).

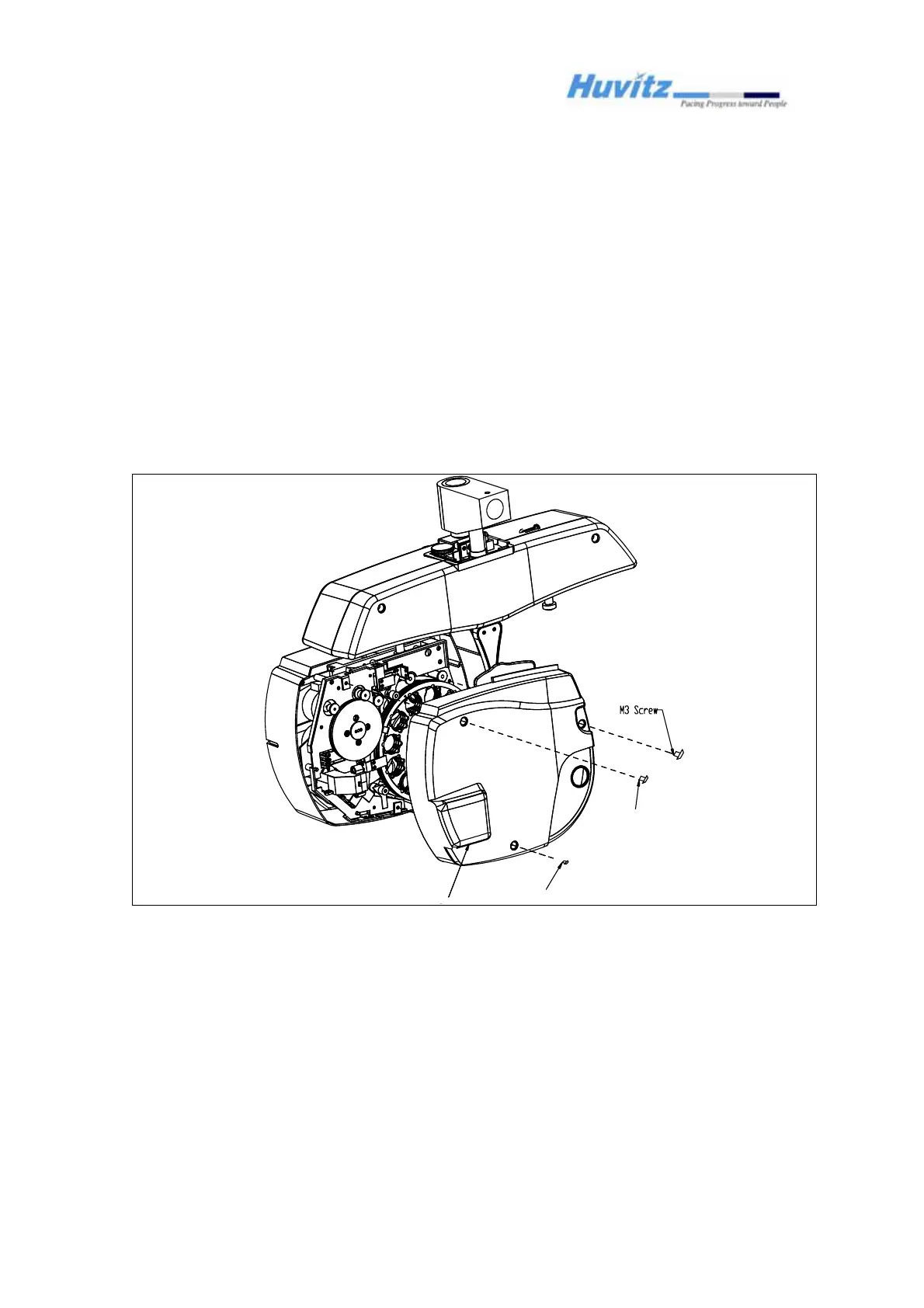

Fig. 3-1-1
Rear Cover Ass’y
M3 Screw
M3 Screw
