4. Block Adapter and Lens Clamp Replacement

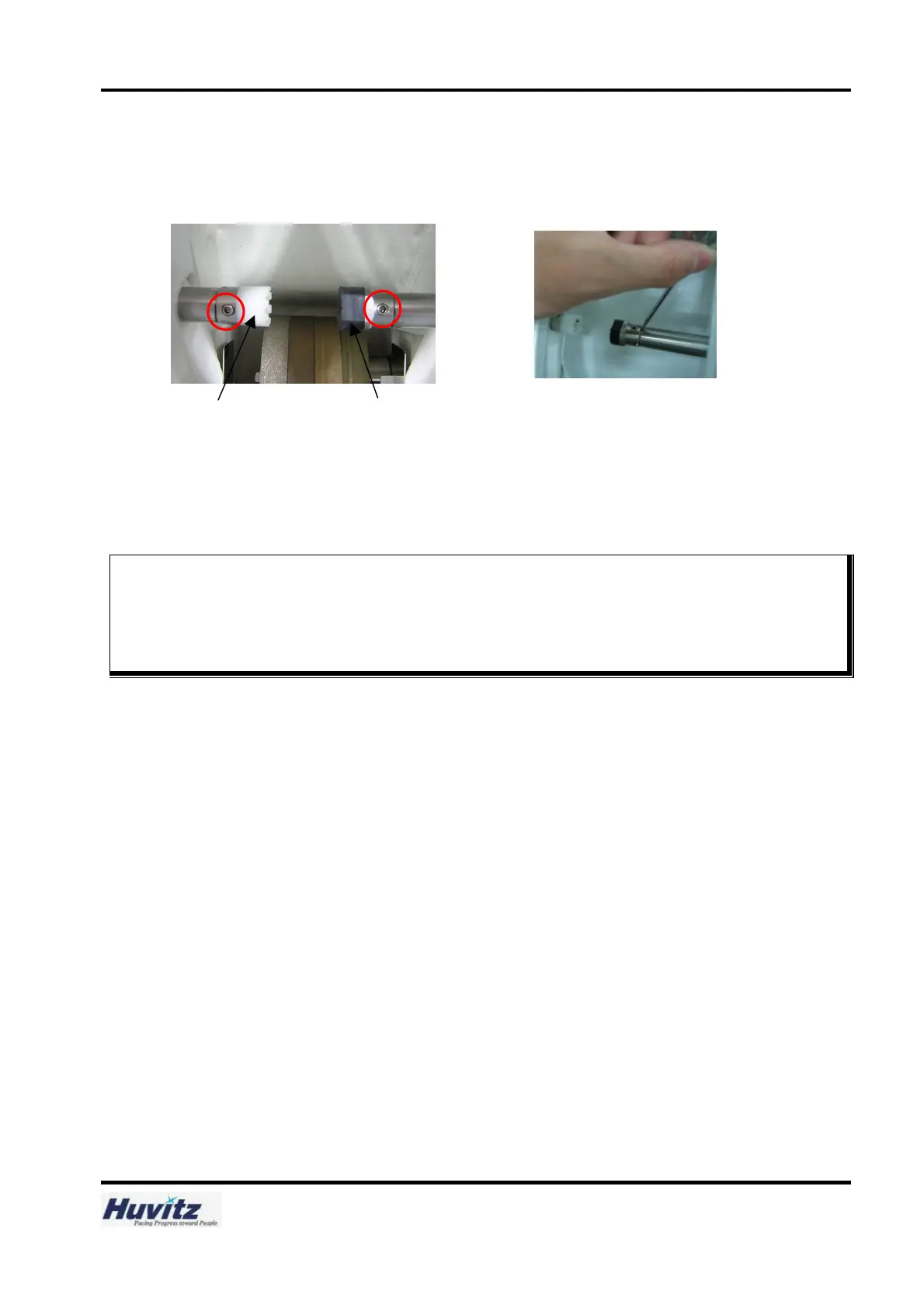

1. Open the Edging Room Window.
2. Loosen setscrew.
3. Replace them with new ones. When replacing Block adapter be sure to check whether there is any
gap. If so loosen both setscrews a little bit and turn the power on and press CHUCK button. Make
sure to insert both Block adapter and Lens clamp. Then tighten both setscrews.
Caution
Do not close chuck without Block adapter and Lens clamp. If so the Chuck clamp will be stuck and will not move. In this
case refer to step4 and pull out manually.
Adjustment needed
Check the Bevel Adjustment.
Step 2
Lens Clamp
Block Adapter
Step 2
To Next Page
