5. Maintenance; Injection of the grease
1. Rotation Worm & Worm Wheel

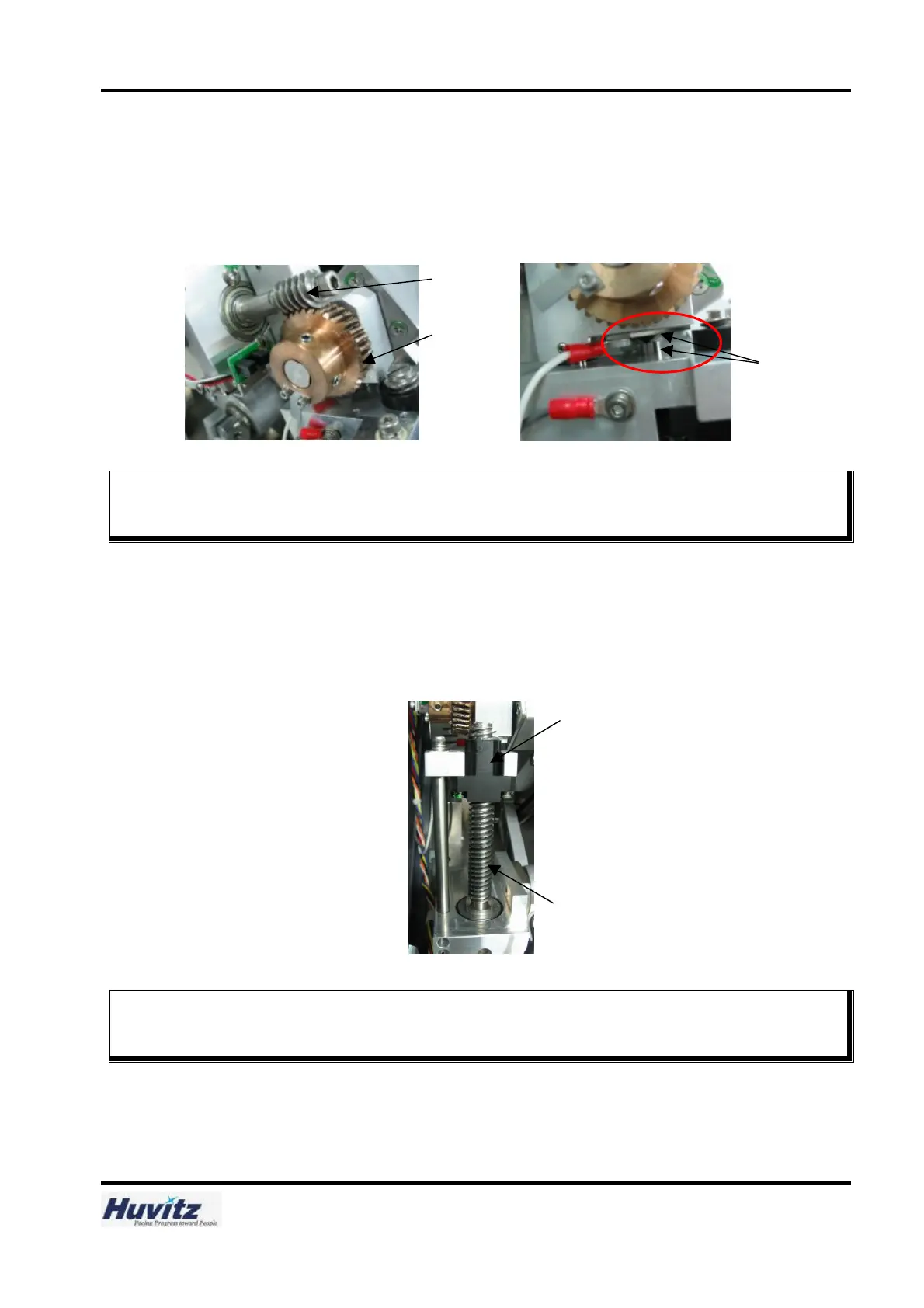

① Wipe out dirty grease from the Rotation Worm & Worm Wheel surface.
② After spreading the grease on the Worm and the Worm Wheel, perform Rotation Test to spread
grease evenly.
Caution
Be sure to protect the Contact Switch surface from grease.
Keep the hands off when it rotates. It can cause severe harm.
2. Y-axis Screw & Nut
① Wipe out dirty grease from the Screw & Nut surface.
② After spreading the grease on the Screw and Nut, perform Y-Test to spread grease evenly.
Caution
Be sure to protect the Contact Switch surface from grease.
Keep your hands off when it moves. It can cause severe harm.
Worm Wheel
Worm
Contact Switch
Screw
Nut
