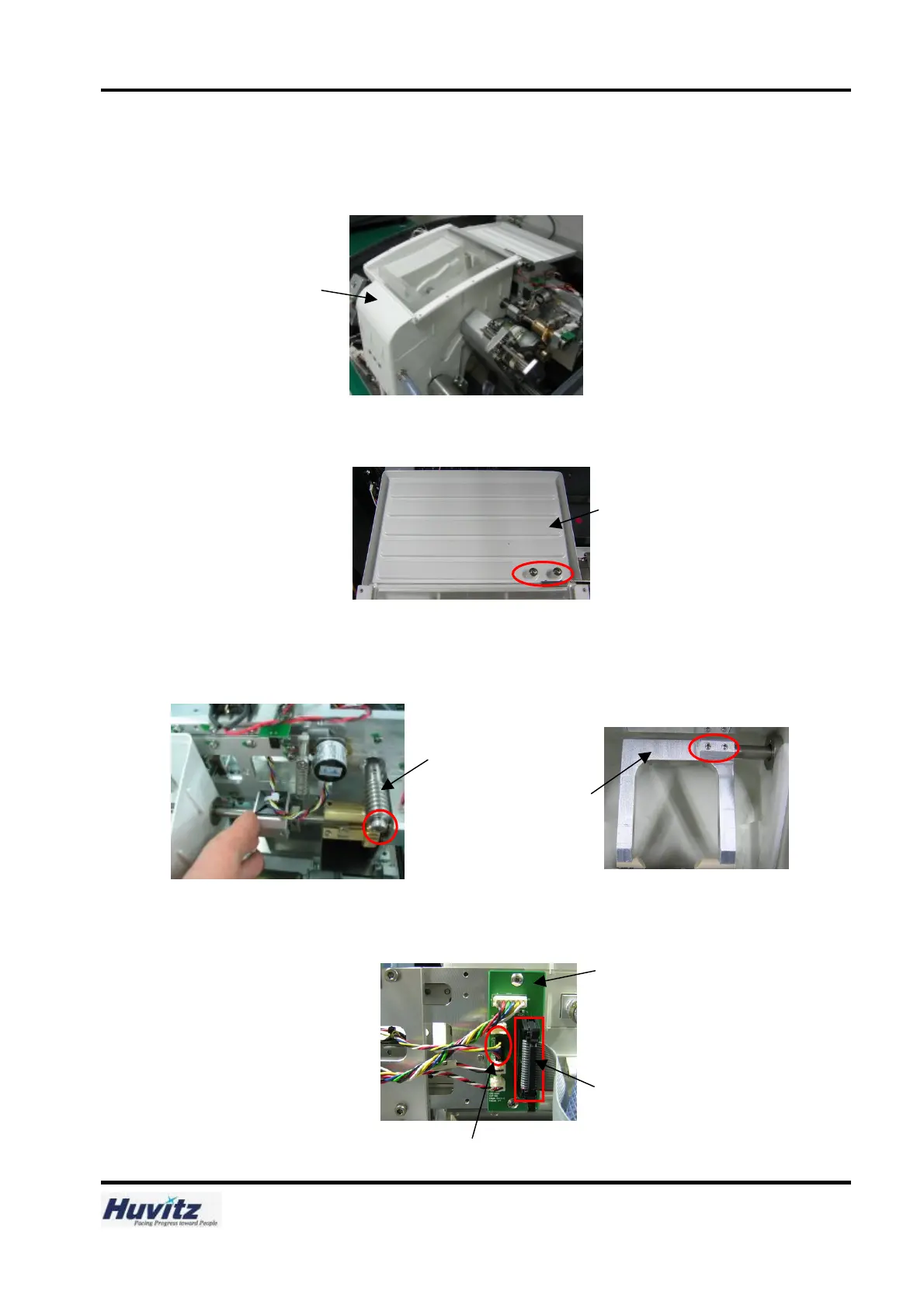

5. Feeler Ass’y Replacement
1. Open the Main Cover.
2. Remove the Edging Room Window Ass’y.
3. Remove the Edging Window Pot.
4. Rotate the Feeler Rotate Worm manually and let the Feeler Tip Ass’y go downward as below picture.
Remove the Feeler Tip Ass’y.
5. Disconnect the Flat Cable linked between the Motor Control Board and the Feeler Interface Board.
6. Disconnect the Encoder Connector linked to the Feeler Interface Board.
Feeler Rotate Worm
Step 4
Step 5
Feeler Tip
ss’y
Edging Window Pot
Step 3
Edging Room
Window Ass’y
Step 2
Feeler Interface
Board
Step 6, 7
Encoder Connector
Flat Cable
Connector
To Next Page
