③ Loosen locking screw of Gap-Controller-R.
④ While rotating Gap-controller-R align Encoder & DC Motor Ass’y and R-Encoder Rack so that
backlash to be the least.
⑤ When alignment finished tighten the locking screw carefully to fix the Gap-Controller-R.
⑥ Assemble all removed parts in reverse order.
9. Connect the DC Motor cable connector and Encoder cable connector of R-axis Encoder & DC Motor
Ass’y to the board.
10. Assemble I/F board in reverse order.
11. Assemble all removed parts in reverse order.
Caution
Be sure to check R direction backlash.
Adjustment needed
Perform Full calibration.

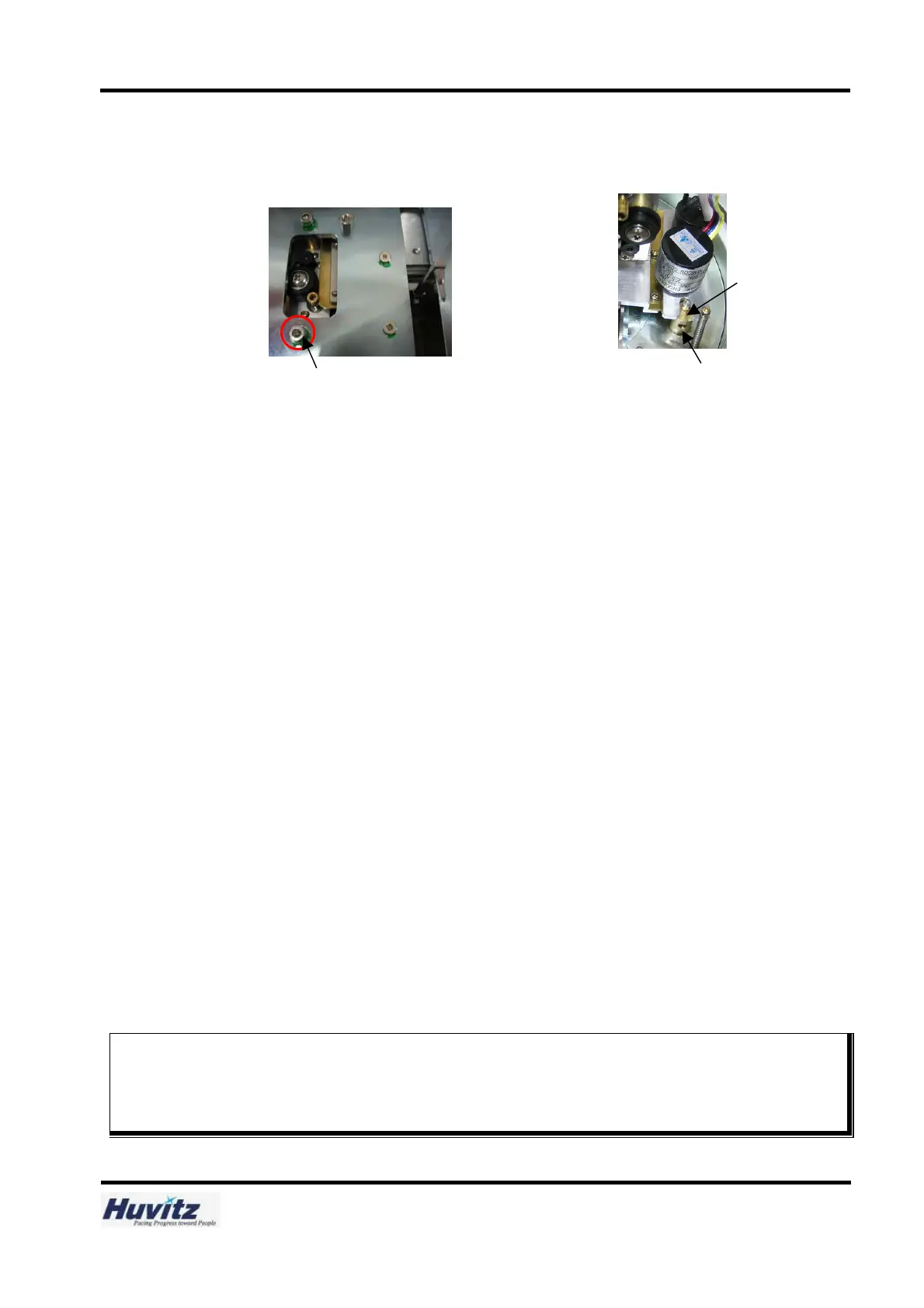

Gap-Controller-R
Step 8-④
Step 8-③
To Next Page
