Hy-Gain MK2 - Installation of Tubing Clamps; 10 Meter Reflector Assembly

Installation of
Tubin
g

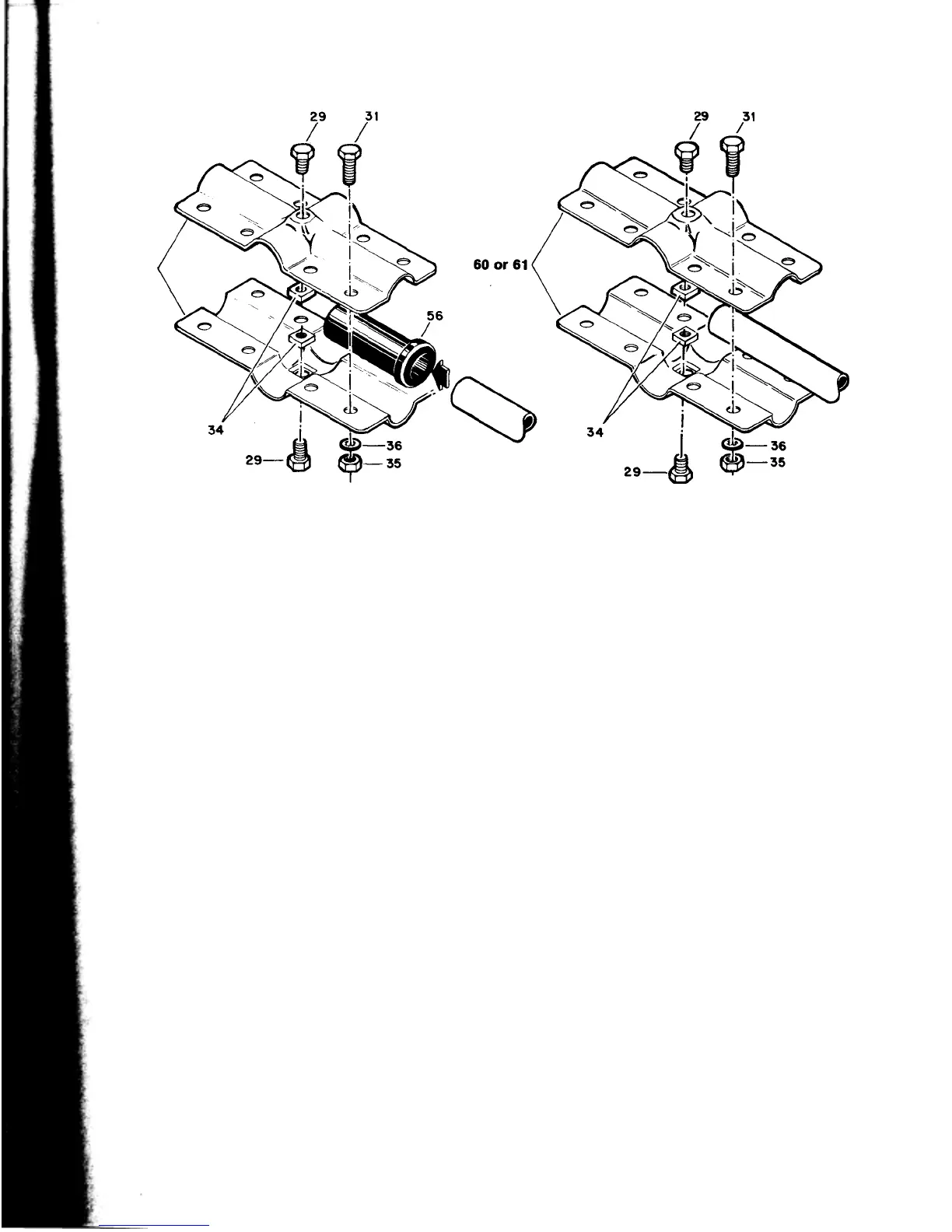

DRIVEN ELEMENT DETAIL
Item
No.
Description No. Description
Bolt, hex head, '/."-20 x
3
/8 "
36 Lockwasher, internal, '/,"
Bolt, hex head, Y."-20 x
3/4"
56 Insulator, Driven Element
Nut, square,
1
/4" - 20 60 Bracket, Element-to-Boom, #4
Nut, hex, '/."-20 61
Bracket, Element-to-Boom,
62 Bracket
,
Element-to-Boom
,
2
9
3
1
Figure 3 Element-to-
Boom Bracket
Select the proper size tubing clamp as shown in the chart When
installing the clamps, place the clamp near the tube end with the top of
the clam
p
over the slot in the tube as shown in Fi
g
ure 4.
After adjustment of the tubing lengths, tighten the clamp with a 5/16
inch nut driver, socket, or open end wrench until the tubing will not
twist or telesco
p
e. DO NOT OVERTIGHTEN.
REFLECTOR
-
DIRECTOR
AO
-
393S
-
B
-
010
