Hy-Gain MK2 - Element-to-Boom Brackets Assembly; Front Driven Element Assembly

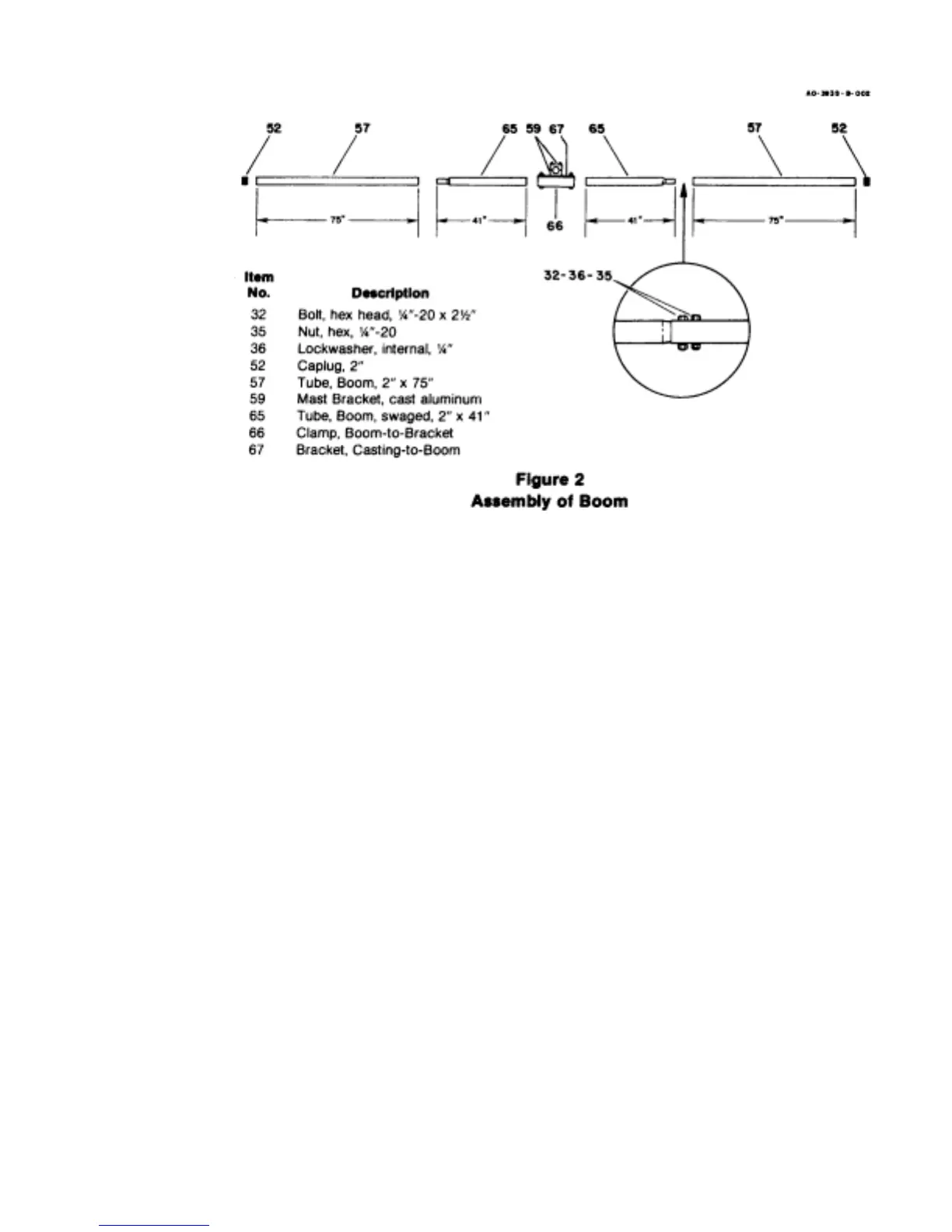

Assembly of the Front Driven Element -
Element-to-Boom Select one pair of the largest element-to-boom brackets (Item No. 62).
These are
Brackets on the marked with a number 14. Assemble the brackets on the boom 35 inches to
Rear Driven Element -
Select another pair of the largest element-to-boom brackets (Item No. 62).
Assemble these brackets on the boom 20 inches to the right of the center of
the mast bracket. Refer to Fi
g
ure 3. DO NOT ti
g
hten the bolts at this time.
10 Meter Reflector
-
Select a pair of the smallest element-to-boom brackets (Item No. 60). These
are marked with a number 4. Assemble these brackets on the boom 531/4
inches to the right of the rear driven element brackets. Refer to Figures 3 and
6. DO NOT tighten at this time.
10
-
15
-
20 Director and 15
-
20 Reflector
-
Select two sets of medium sized element-to-boom brackets (Item No. 61) and
loosely assemble these on the boom ends. The front set should be 68 inches
to the left of the Front Driven Element brackets. The rear set should be 36
inches to the right of the 10 meter reflector brackets. Refer to Figures 3 and
6. DO NOT ti
g
hten now.
