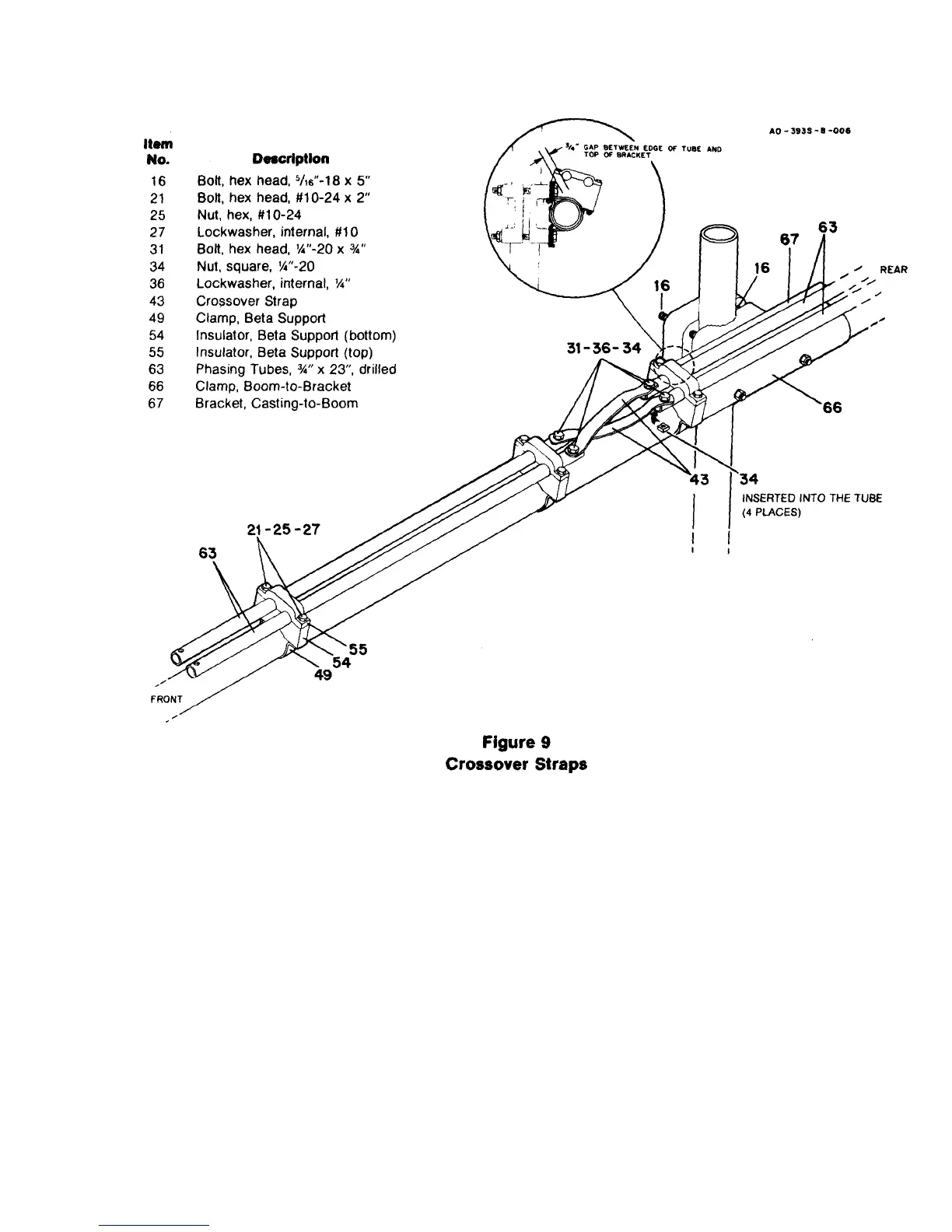

Select two (2)
1'/4"
aluminum tubing clamps, two (2) 7" pigtail assemblies and
associated hardware as shown in Figure 10. Install on the Rear Driven Element
as shown and ti
hten all bolts securel
.
Beta Match Select the two (2) beta match tubes
(
3
/"
x 70"), two (2) beta support clamps, two Assembly
(2) beta support insulators, two (2) beta top insulators, and associated hardware and clamps as
shown in Figure 11 and Details A and B. Assemble the beta match tubes and shorting clamp assembly as
shown in Figure 11 and Details A and B. The shorting clamp should be flush with the ends of the beta
match tubes. The opposite ends of the beta tubes should be approximately 2% inches from the center of
the Front Driven Element bracket. The final dimension will depend on the attachment of the beta tubes
and the phasing tubes through the beta feed jumper straps.
