Hy-Gain MK2 - Reflector Element; Trap Detail

Install a #16 tubing clamp on the slotted end of the RDE-1 and insert the
unslotted end of the RDE-2 (1 1/8" x 36") to the dimension shown in
Figure 6. Tighten the #16 tubing clamp securely and recheck the RDE-2
dimension. Assemble the remainder of the Rear Driven Element in the

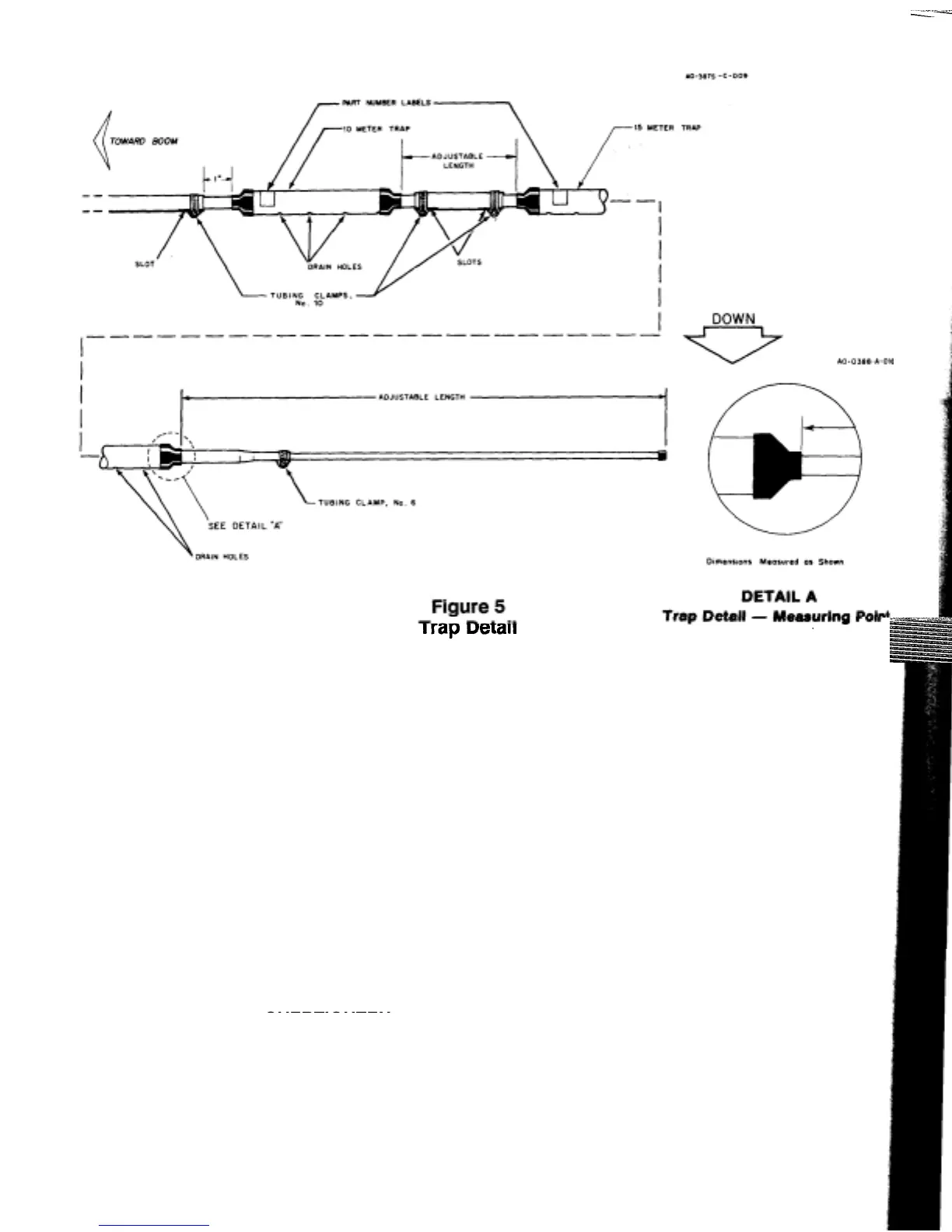

same manner using dimensions from Figure 6. Use Figure 5 and Detail
A as guides. Use the same traps as on the Front Driven Element.
10 Meter Select the R2-1 section (7/8" x 55") and slip the unswaged end of the R2
Reflector Element
1
completely into the bracket (Item
60)
assembled on the boom 53 1/4"
in
c
h
es
to
t
h
e
ri
g
h
t
o
f
t
h
e
R
ea
r Driv
e
n El
e
m
e
n
t
. Ti
g
h
te
n
t
h
e
e
i
g
h
t
(8)
Assemble the remainder of the 10 meter reflector as shown in Figure 6
using #6 tubing clamps. Tighten all element tubing clamps with the
slots facing the ground and recheck all dimensions. DO NOT
OVERTIGHTEN
15-20 Meter Select the R-1 section (1 1/4" x 83") and slip the unslotted end completeReflector
Element ly into the bracket (Item No. 61) assembled on the boom 36 inches to the right of
the 10 meter reflector. Tighten the eight (8) bolts to hold the element onto the boom.
-
10
-
