7.3
Roll Off Guard

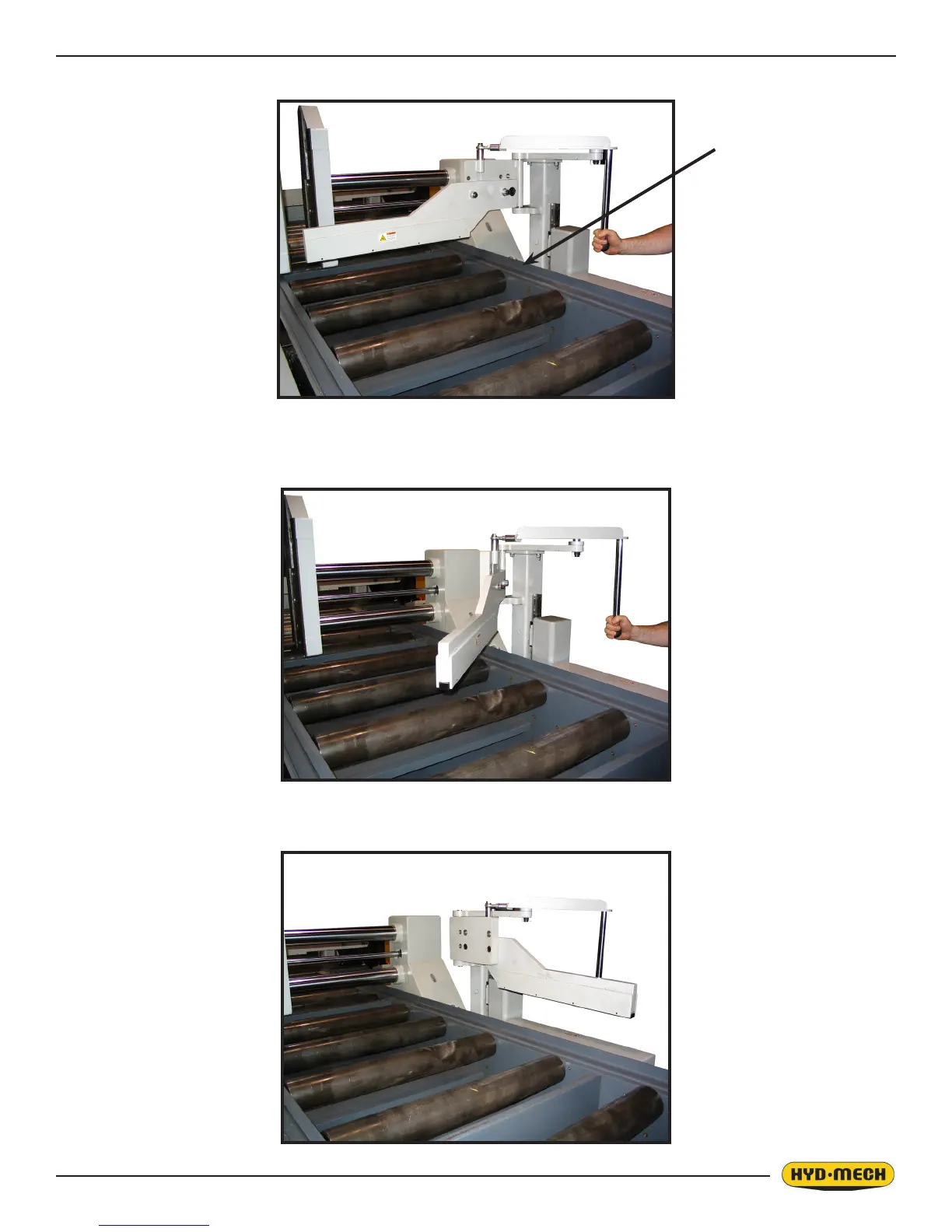

1. Raise the shuttle bundling arm high enough to clear the roll off guard of the barfeed.
2. Lift the swing arm upwards to lift the control link weldment off of the latch spool. This will allow the handle to be
pulled away from the barfeed which will begin to rotate the arm away from the shuttle vise.
3. Rotate the bundling arm completely out of the loading area until the control link weldment seats on to the spool.
