1. Raise the bundling clamp a couple inches off the table, and close the movable vise.
2. Unlatch and open the operator screen. All machine functions are inoperable.
SAW BUNDLING (INFEED VISE AND OUTFEED VISE)
The procedure below details how to remove the infeed or outfeed bundling clamps out of the loading area of the machine:
NOTE: The bundling clamps will remain stationary in AUTO MODE if the “Bundling Close” push button is not activated
(No light on the push button).

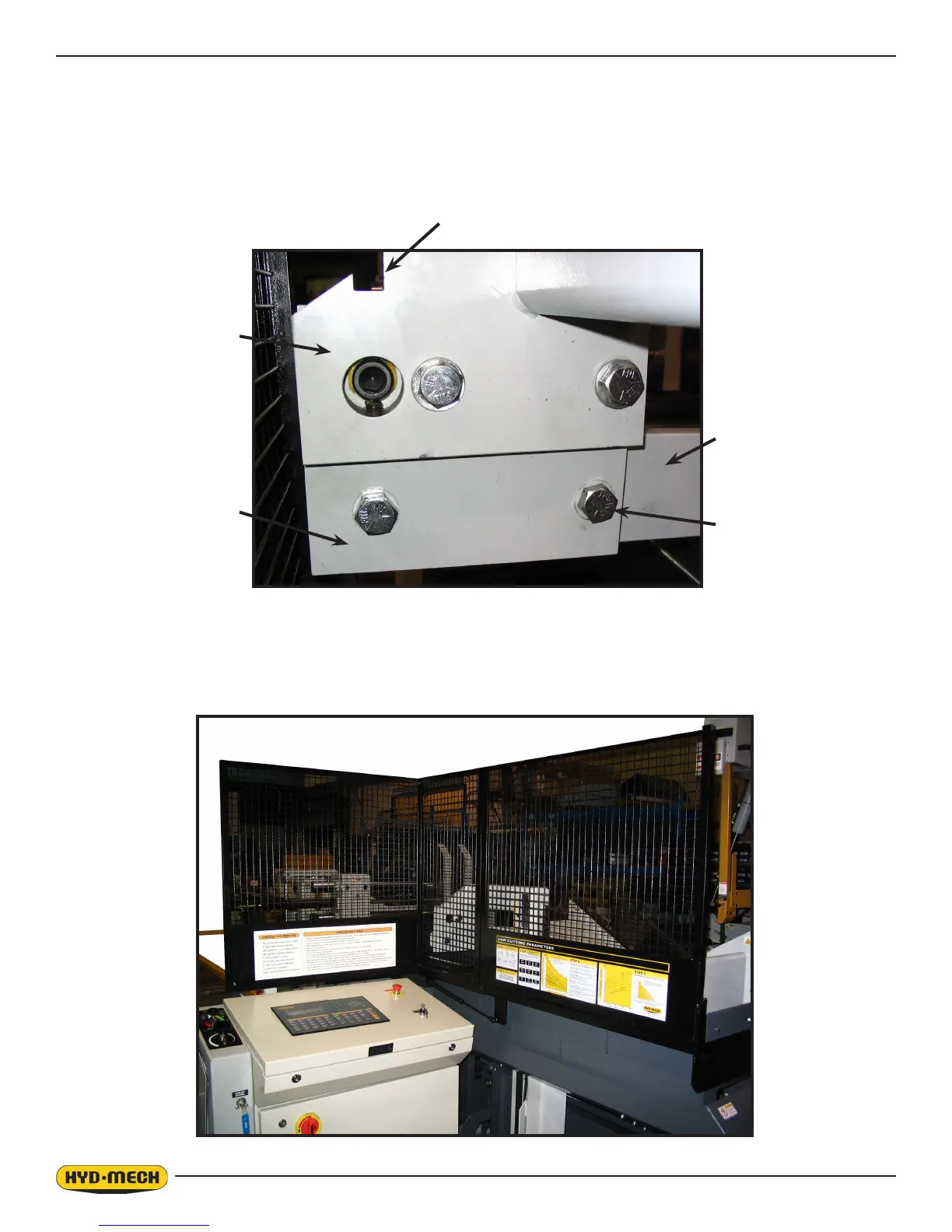

Bundling Clamp Arm
Clamp Post Weldment
Adjusting Plate
Slot to fasten in vertical position
0.75NC Hex Bolt
Remove to lift clamp to
vertical postion
To Next Page
