11 Output Signals
11.1 Switching outputs
The ETS 3000 IO-Link has 2 switching outputs whose switching behaviour (window mode
or two-point mode) is parameterisable.
In addition to the IO-Link Smart Sensor Profile Specification, a switch and switch-back
delay can be set in HYDAC IO-Link sensors.
ATTENTION
Exceeding or falling below the measuring range leads to a limitation to the
corresponding upper or lower limit of the measuring range.
CAUTION !
11.1.1 Two-point mode - Switch point setting (SP)
One switch point and one switch-back point can be set for each switching output. The
particular output will switch when the pre-set switch point is reached and then switch back
when the level drops below the switch-back point.

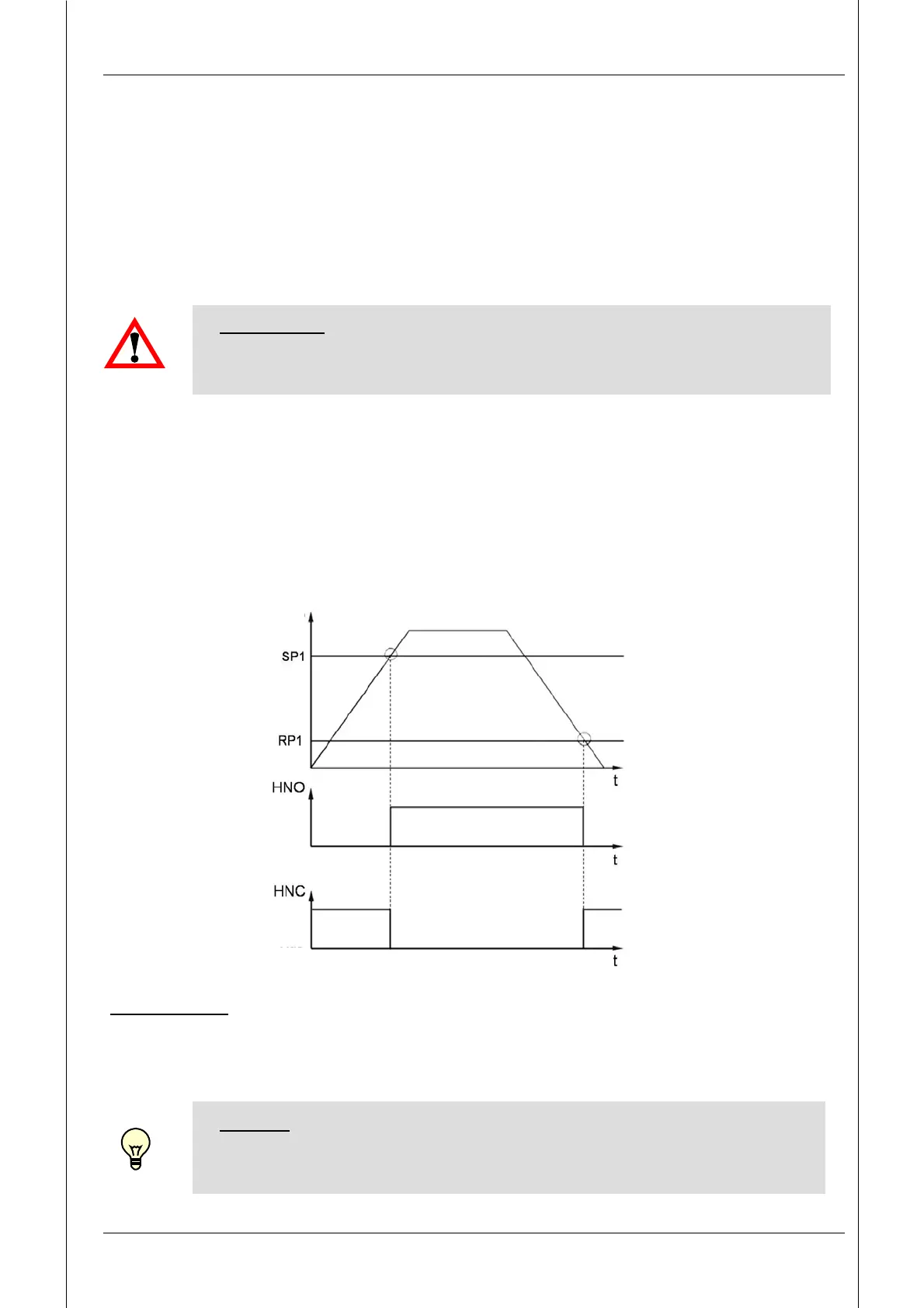

Example for switch point 1 (N/C and N/O function):
Abbreviations: "SP1", "SP2" = switch point 1 / switch point 2
"RP1", "RP2" = switch-back point 1 / switch-back point 2
"HNO", = N/O when hysteresis function is active
"HNC" = N/C when hysteresis function is active
NOTICE
It is only possible to set the switch point (SP) if it is higher than the
respective switch-back point (RP).
T
On
Normally closed function
Of
f
On
Normally open function
Of
f
