Hydac ETS 3000 Series - PIN Connection

ETS 3000 IO-Link 21
Stand: 28.04.2020 HYDAC ELECTRONIC GMBH Mat. Nr.: 669904 D

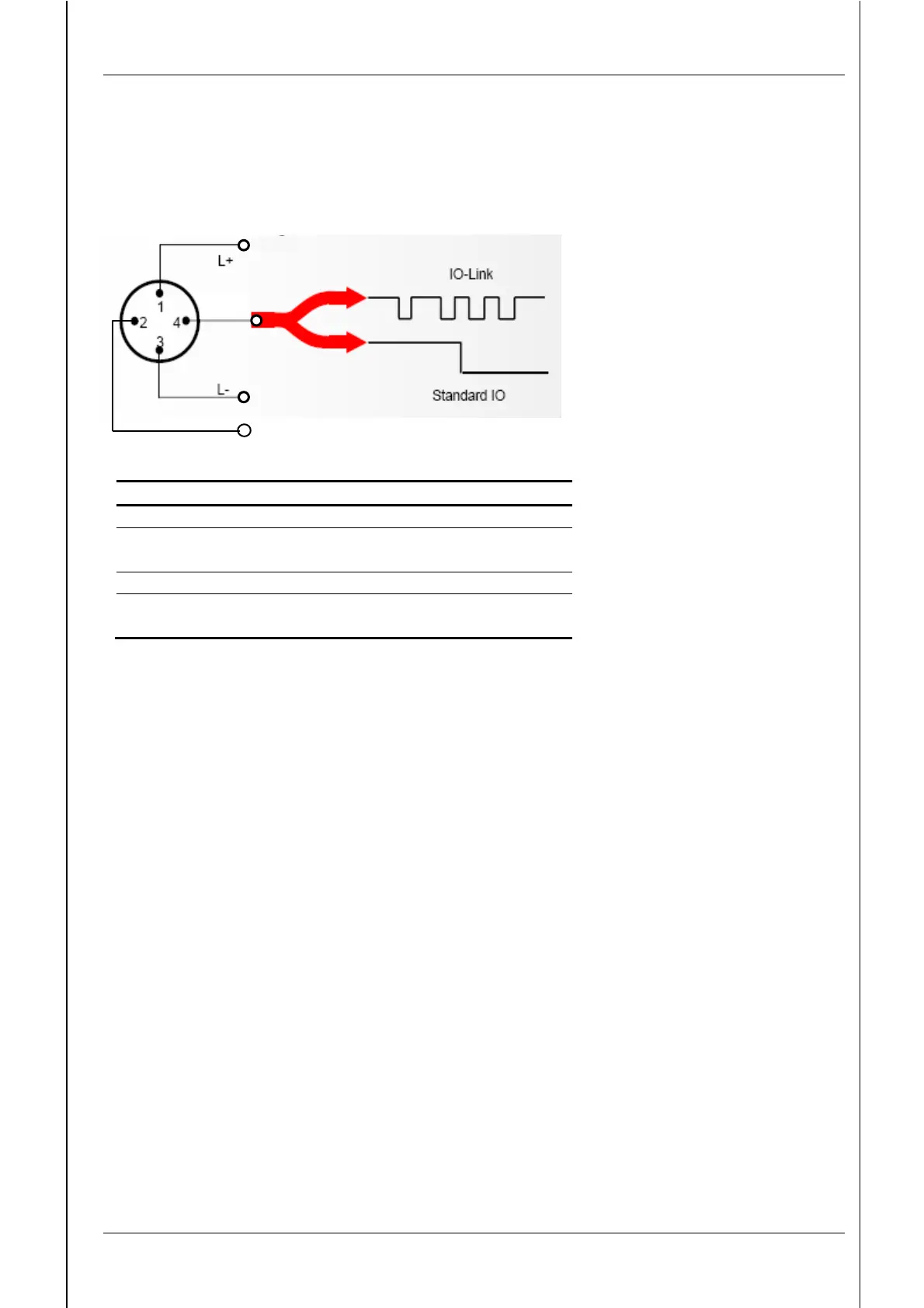

16 PIN connection
M12x1, 4-pin
Pin Signal Code
1 L+ +U
B
2 Q2/QA Switching output (SP2) /
Analogue output
3 L- 0V
4 Q1/C IO-Link communication / switching
output (SP1)
Q2/QA
Q1/C
