Hydac ETS 3000 Series - External PT100 Sensor; Dimensions and Technical Data; Electrical Connection

30 ETS 3000 IO-Link
Stand: 28.04.2020 HYDAC ELECTRONIC GMBH Mat. Nr.: 669904 D

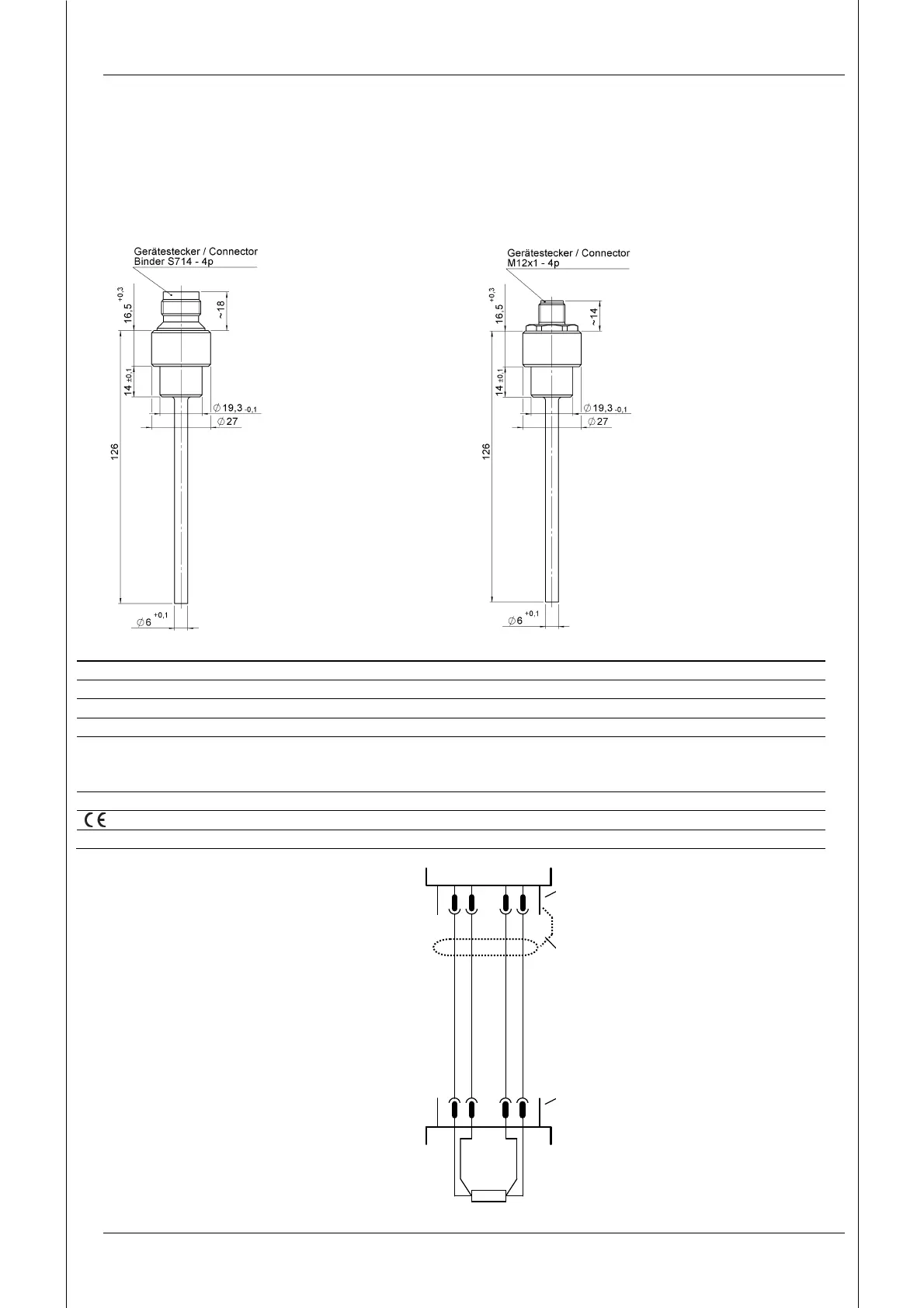

19.3 External PT100 Sensor
19.3.1 Dimensions and technical data
Type designation: TFP 104-000 Type designation: TFP 106-000
Order no.: 904696 Order no.: 921330
Technical specifications
Measuring element PT 100
Measurement range -40 .. +125 °C ( -40 .. +257°F)
Probe length 95.5 mm
Probe diameter 6 mm
Electrical Connection: Connector Binder series 714 M18 , 4 pole
(ZBE 03 mating connector included)
Male connector, 4 pole, M12x1 (mating connector not supplied)
Parts in contact with the fluid Brass
marking EN 61000-6-1 / 2 / 3 / 4
Sensor current 0.3 .. 1.0 mA
19.3.2 Electrical connection
Kabelbuchse
TFP
Sensor-
Widerstand
12 34
12 34
ETS 386X
M12x1, 4-pol.
Geräteeinbau-
Stecker, 4-pol.
Binder, Serie 714
geschirmte
Anschlussleitung
Device connector Binder series
714 M18, 4 pole or
Male connector M12x1
,
4
p
ole
Screened
connector cable
Cable plug connection
M12x1, 4-pole
Senso
r
resistance
