HydraMaster Titan 625 - High Pressure Washing Kit Lower Left Dash Assembly Parts List; Figure 9-43. High Pressure Washing Kit - Lower Left Dash Assembly

9-63: Assemblies and Parts Lists
High Pressure Washing Kit - Lower Left Dash Assembly Parts List
Item Part Number Description Qty
1 000-027-008 Cap, 3/8” Brass Pipe 1
2 000-052-751 Elbow, 3/8” JIC X 1/4” NPT 1
3 000-052-086 Elbow, 3/8” NPT Street 1
4 000-052-105 Insert, #68 (3/8” NPT X 1/2” Barb) 1
5 000-081-305 Label, Lower Dash - Left - Pressure Washing 1
6 000-052-072 Nipple, 1/4” NPT Close 1
7 000-052-533 Nipple, 3/8” JIC X 1/4” NPT 1
8 000-100-188 Panel, Lower Dash, Left, Pressure Washing - Coated 1
9 000-052-052 Quick Connect, 660 3/8” Brass w/ EPDM O-Ring 1
10 000-052-769 Quick Connect, High PSI Female 1/4” NPT 1
11 000-052-768 Quick Connect, High PSI Male 1/4” NPT 1
12 000-143-126 Screw, #10-24UNC X 0.50” Lg. Hex Head 5
13 000-157-157 Switch, Nason 1,350 psi Shuto󰀨 1
14 000-052-090 Tee, 1/4” NPT Branch M-F-F 2
15 000-169-214 Valve, 2 Way Chem Pump - 1/4” FPT S/S 1
16 000-174-001 Washer, #10 Flat 5
17 000-174-027 Washer, 3/4” Flat - Brass 1
18 000-174-008 Washer, 5/8” Flat 1
18
3 4
13
14
15
6
14
2
7
10
111
15
17
9
12 16
8
5
5X
5X

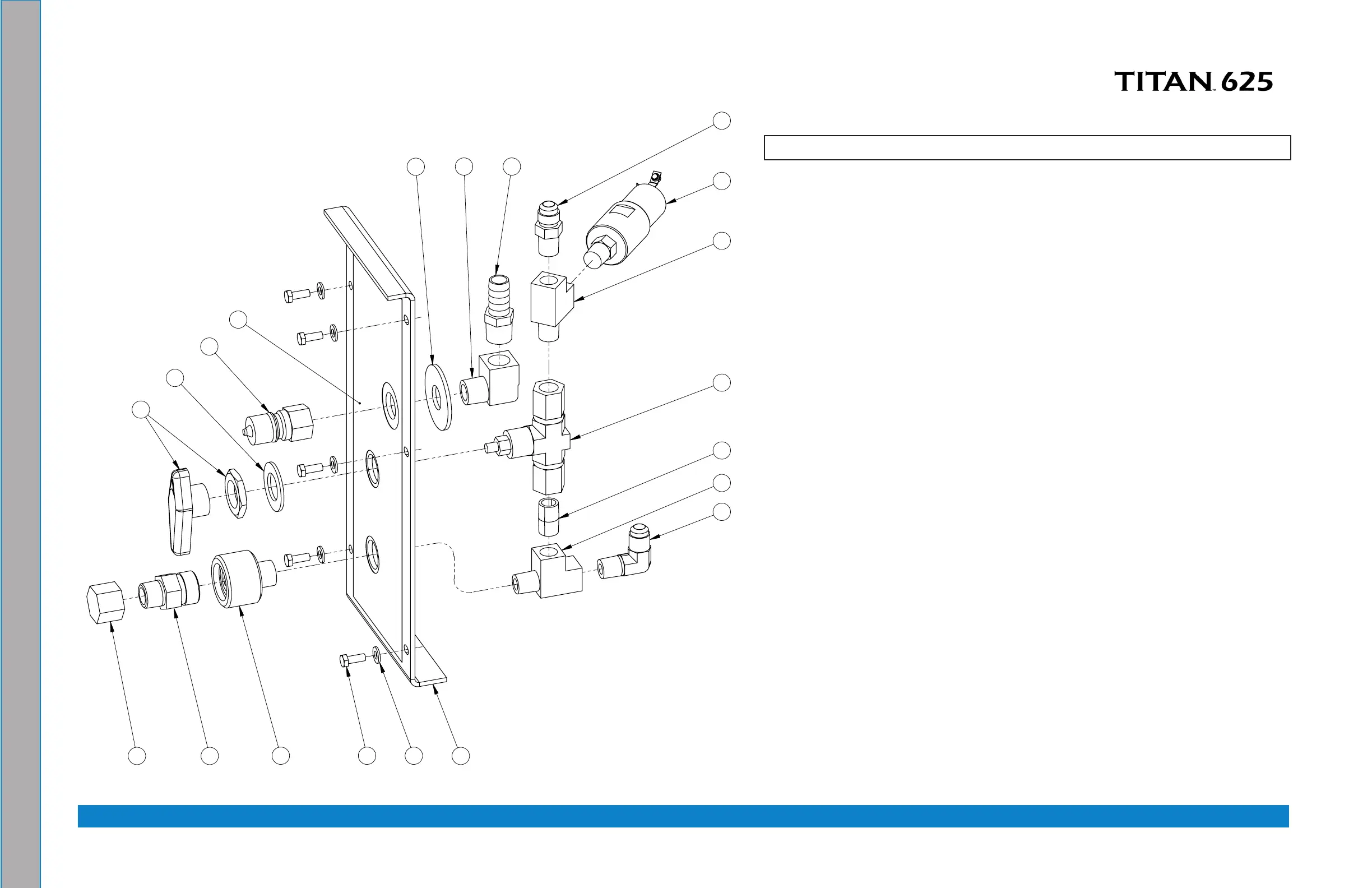

Figure 9-43. High Pressure Washing Kit - Lower Left Dash Assembly
610-021-014 Rev. C
