HydraMaster Titan 625 - Figure 5-3. Replace Center Inlet Check Valve with Modified Check Valve; Figure 5-4. Apply Grease and Install Valves; Figure 5-5. Replace Valve Cap and Torque to 95 Ft. Lbs

5-9: Machine Maintenance
7. Replace the center inlet check valve with a modied check valve (Figure 5-3).
8. Apply O-ring grease to O-rings and install valves (Figure 5-4).
9. Replace valve cap and torque to 95 ft. lbs (see Figure 5-5).
10. Remove the fasteners retaining the manifold
11. Separate manifold from crankcase (see Figure 5-6).
Figure 5-4. Apply Grease
and Install Valves
Figure 5-5. Replace Valve Cap
and Torque to 95 ft. lbs.

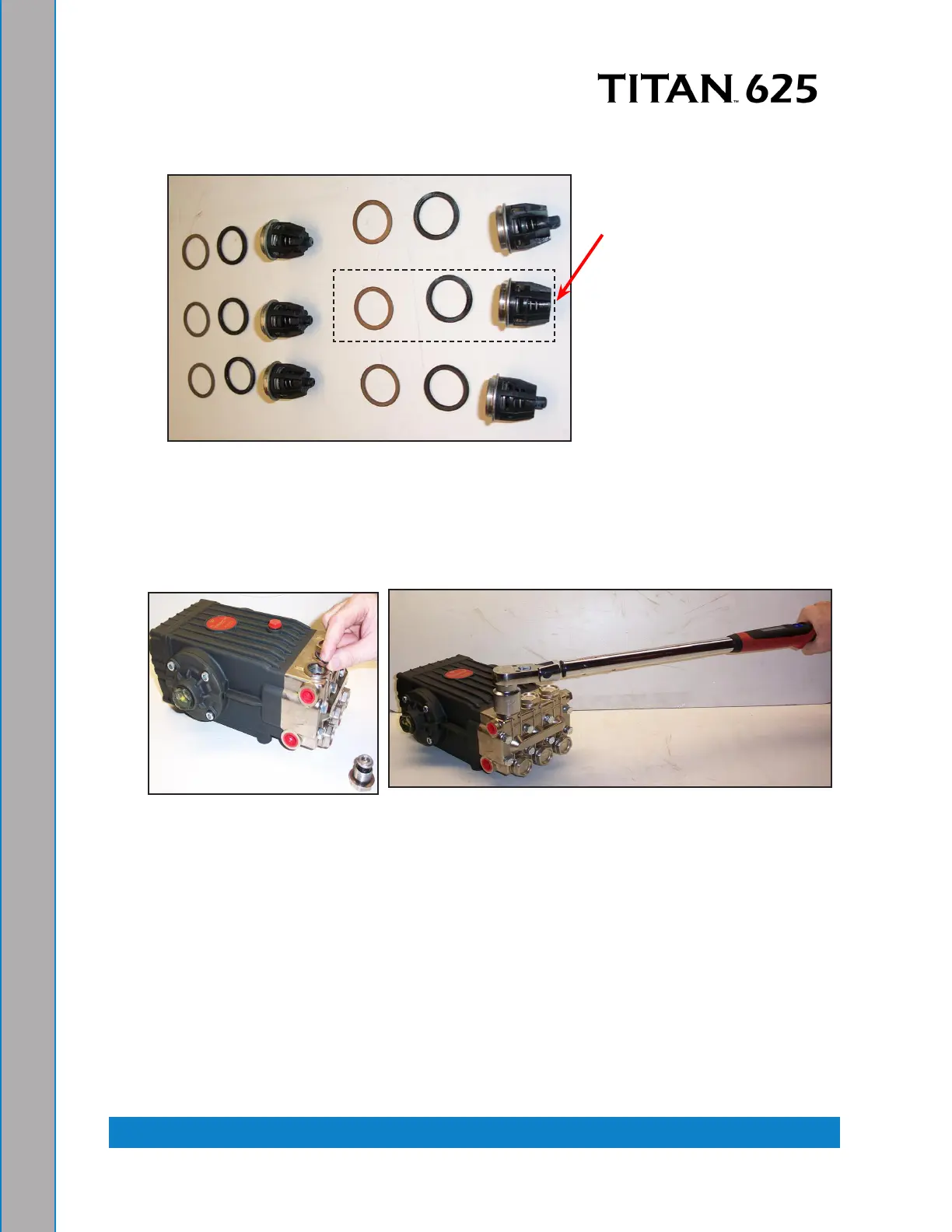

Figure 5-3. Replace Center Inlet Check Valve With Modied Check Valve
Modied Check Valve
