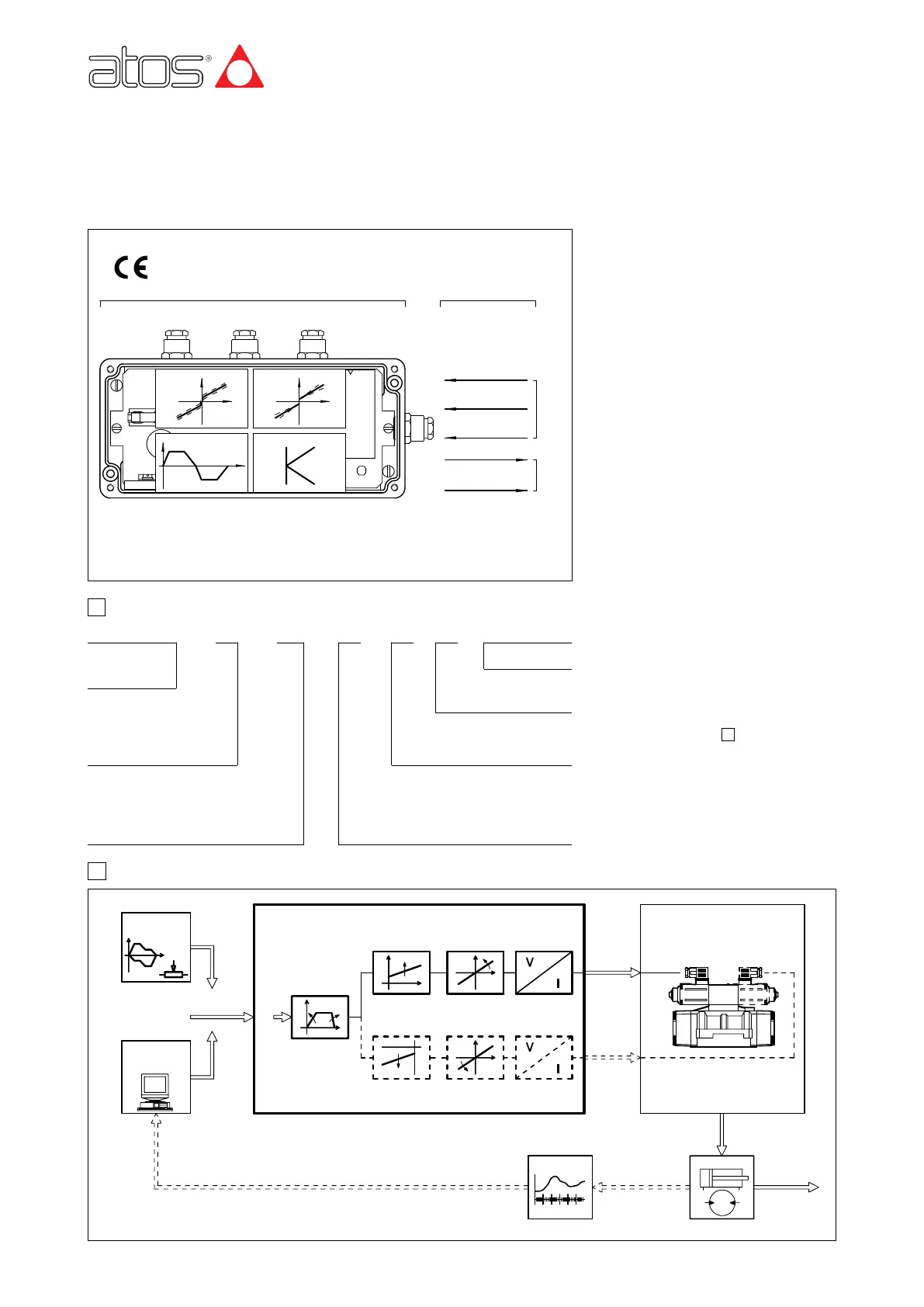

Electronic drivers type E-RP-AC
analog, sealed and rugged box, for proportional valves without transducer
Table G100-11/E
E-RP-AC drivers control the current to
the solenoid of Atos proportional valves
without pressure or position transducer,
regulating the spool position, the flow or
the pressure according to the electronic
reference signal.
Features:
• bias and scale regulations by poten-
tiometers
• symmetrical (standard) or dissym-
metrical (/RR option) rising and fal-
ling ramp generator
• factory pre-setted
• alluminium box with IP65 protection
degree
• power supply 24 V
DC or 12 VDC (/12
option)
• electronic filters on input and output
lines
• CE marking granting the conformity
to the EMC Directive (Electromagne-
tic compatibility)
Applications:
Pressure, flow, position open or closed-
loop regulation systems, according to
the block diagram .
2
E-RP
E-RP = Electronic
driver in
sealed box
AC = for proportional valves
without transducer
01F = for single solenoid proportional valves
05F = for double solenoid proportional valves
Options:
- = standard symmetrical ramp
/RR = with adjustable dissymmetrical ramps
/RRE = with external ramp setting
/I = suitable to receive current reference
signal 4 ÷ 20 mA
Series number
Set code (see 4.4)
AC – **01F /*–
1 MODEL CODE
G100
–
USER FUNCTIONS AND CONTROL OPTIONS USER INTERFACE
SUPPLY 24 V
REFERENCE SIGNALS
ENABLE SIGNALS
SOLENOID SUPPLY
OUTPUTS INPUTS
DEAD BAND ADJUST
RAMP GENERATOR
SCALE ADJUST
POWER SECTION
SOLENOID SUPPLY
–
Options:
- = 24 V
DC power supply
/12 = 12 V
DC power supply (see 4.1)
www.atos.com
2 BLOCK DIAGRAM
ELECTRONIC DRIVER E-RP-AC-01F (*)
CLOSE LOOP
CONTROL
(AXES CARD)
DEAD BAND SCALE
CURRENT
AMPLIFIER
RAMP
(*) dotted line for E-RP-AC-05F
ACTUATOR FEEDBACK
COIL S1
COIL S2
REFERENCE
PROPORTIONAL VALVE
DRIVING CURRENT
FLOW
PRESSURE
POSITION
SPEED
ACCELERATION
FORCE
TRANSDUCER
ACTUATORS
DRIVING CURRENT
EXTERNAL
GENERATOR
DEAD BAND SCALE
CURRENT
AMPLIFIER
