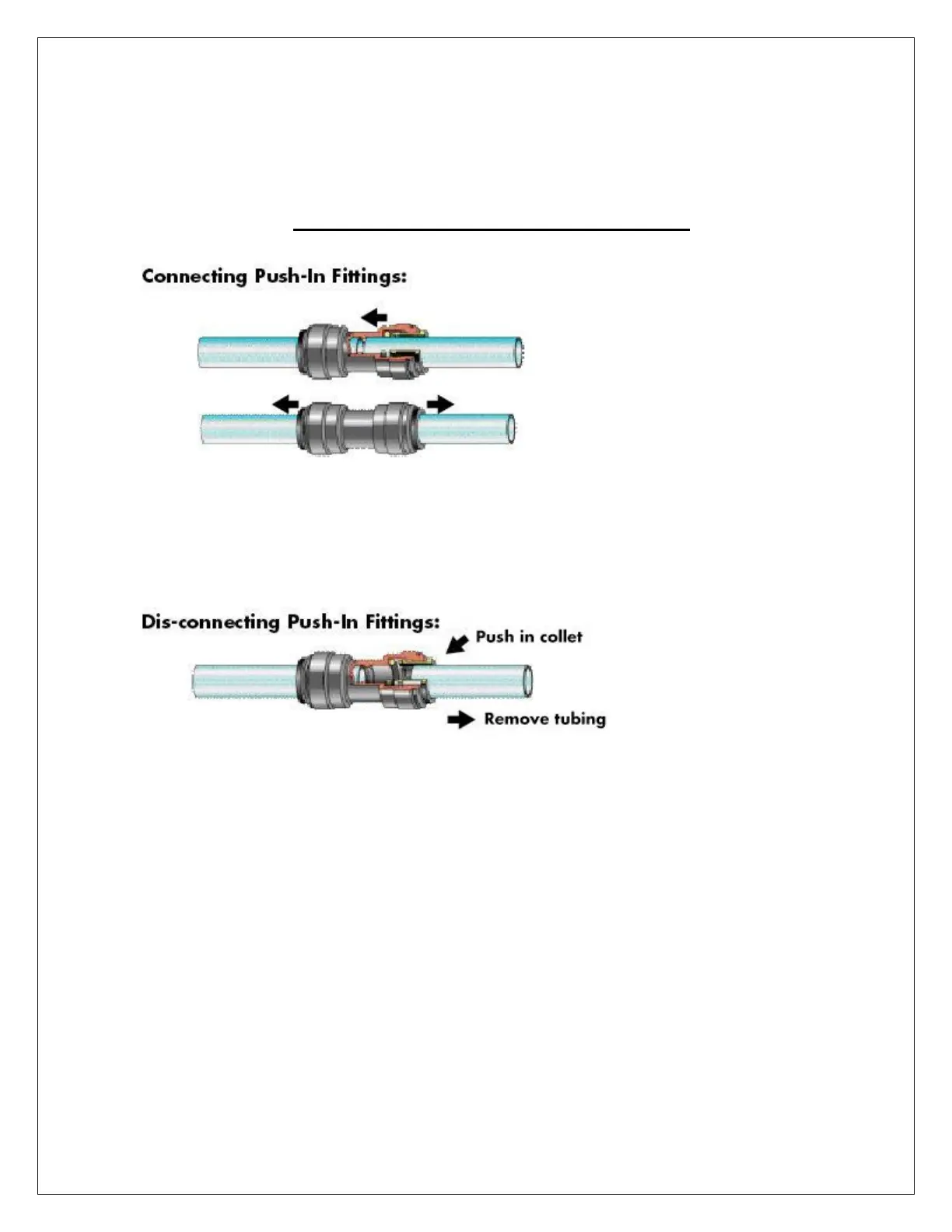

PUSH IN/QUICK CONNECT FITTINGS:
Push tube firmly into the fitting, all the way to tube stop. The collet (gripper) has stainless
steel teeth which hold the pipe firmly in position whilst the O-Ring provides a permanent leak
proof seal. Pull tubing to check for security. If some tube pulls out then push all the way in
again until it stops.
Ensure system is depressurized by turning off source water before removing fittings. Push
in the collet evenly toward the fitting. With the collet held in this position the tube can be
removed by simply pulling the tubing. You can use a collet release tool (available from your
dealer) or small crescent wrench. The fitting can then be re-used. If the tube has been
removed several times you may see score marks on the ends. This can lead to leaks so cut
the end off the tubing totally square with a sharp blade using care.
