Page 23 of 36 Pages

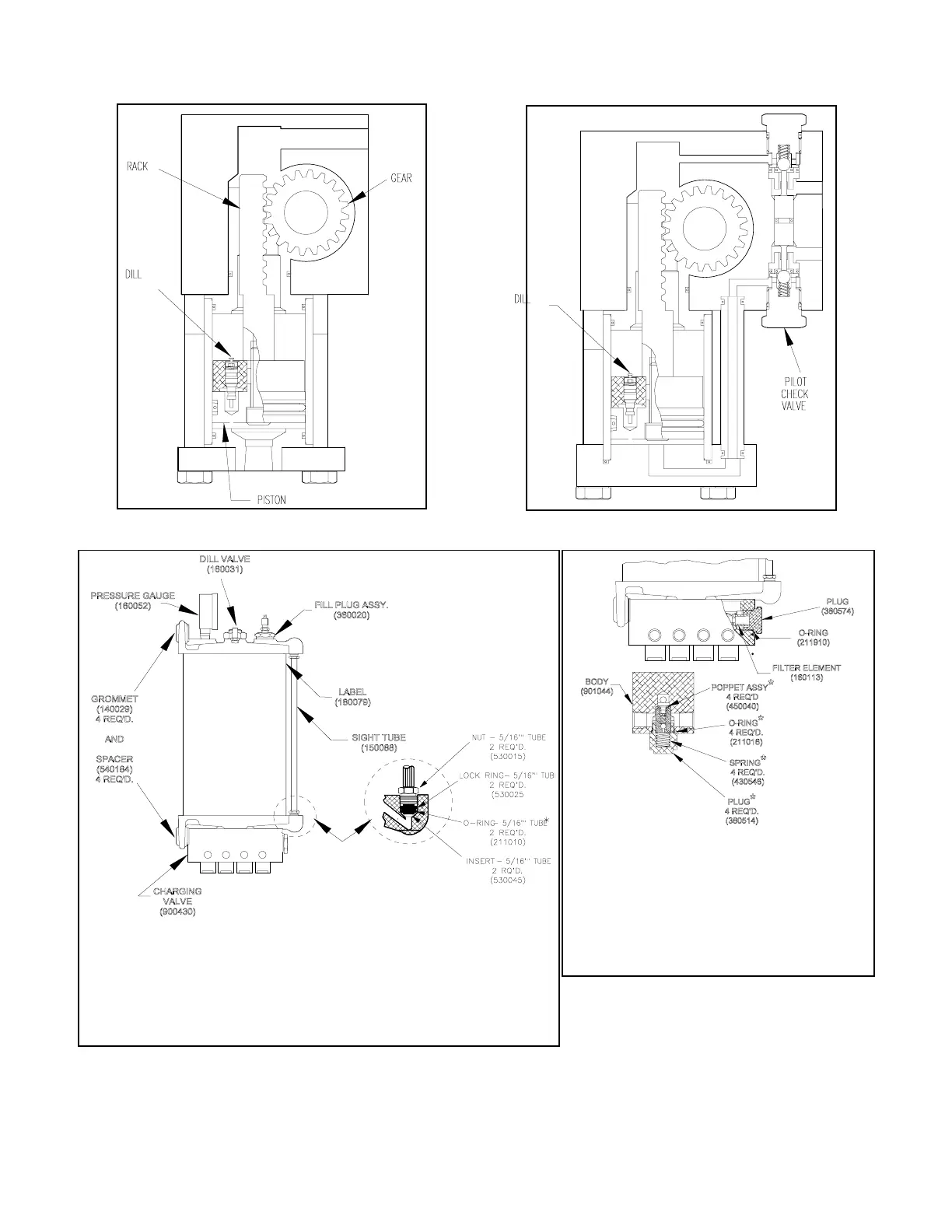

Figure 24. Clutch Slave
Figure 25. Throttle Slave
Figure 26. R-13 Integrated Reservoir
Figure 27. Charging Valve on
R-13 Integrated Reservoir
*
Part of Fitting Kit MCVF-08
Consists of:
4
O-ring
211016
4
Plug
380514
4
Spring
430546
4
Poppet
Assy
450040
1
Reservoir
Plug
380030
1
Inst.
Sheet
180054
*
Part of Fitting Kit RS-01 Seal Kit
Consists of:
2
O-ring
211010
1
O-ring
211011
1
O-ring
211117
2
O-ring
211206
2
O-ring
211910
2
Seal
224014
1
Inst.
Sheet
181033
22
24
Table of Contents
Table of Contents
3
Teleflex Morse Engine Control System
4
Why It Works
4
Preparation for Installation
4
Component Installation
4
Sender Installation
4
Throttle Slave Installation
6
Clutch Slave Installation
8
Tubing Installation and Connection
10
Rules for Routing Tubing
10
Install Tubing between Senders and Slaves
11
Filling and Bleeding System
11
Filling the System
11
Bleeding the System at Slave
11
Bleeding the System at Senders
12
System Fluid
12
Making the System Operational
12
Synchronizing the Controls
12
Connecting Engine Controls
12
Operation
12
Throttle Senders
12
Clutch Senders
13
Maintenance
13
System Parts List (Nylon)
16
System Parts List (Copper)
17
Templates
25
Cdf-04 Mounting Plate
27
Plan I-Twin Engine, One Station
28
Plan II-Twin Engine, Two Station
29
Plan III-Twin Engine, Three Station
30
Plan IV-Twin Engine, Four Station
31
Circuits
31
Plan III-S
33
Plan IV-S
33
Troubleshooting
34
