3. Firmly screw-in the binding screw inside the rotor (the binding screw is spring loaded):
Put the screwdriver into the screw hole (Picture 10).
Push the binding screw in until it stops.
Tighten the binding screw until it stops by turning it to the right.

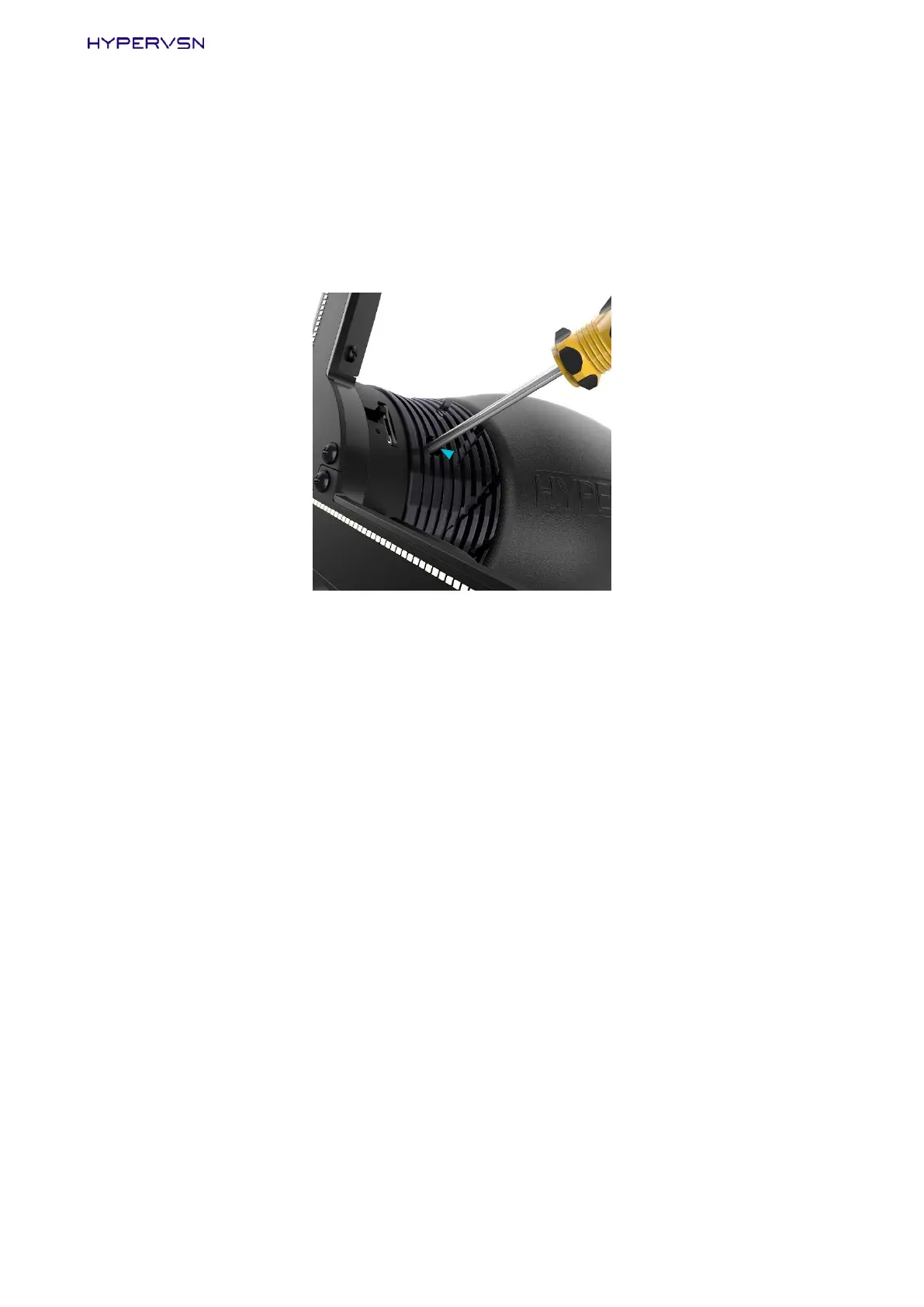

Picture 10. Tightening in the binding screw
If the assembly steps are performed correctly, there will not be any backlash of the stator or rotor elements.
