32
d. AC Output Information:
Selecting the AC Load button on the
Homepage UI touchscreen will show the
real-time running status of Loads, Voltage,
Current, and Frequency.
e. Battery Information:
Selecting the Battery button on the
Homepage UI touchscreen will show the
real-time running status of the Energy
Available, Voltage, Current, and
Temperature.
f. DC Output Information:
Selecting the DC Load button on the
Homepage UI touchscreen will show the
real-time running status of Power, Voltage,
and Current.
DC Output
Back
Power 330 W
12.8 V
25.7 A
Voltage
Current
Battery
Back
Energy Available 99.5 Ah
54.8 V
41.7 A
Voltage
Current
45.9 ° cTemperature
120VAC
PV
12VDC
AC Load
DC Load
11/15/XXXX 15:15
2560 W 2560 W
2500 W
120 W 330 W
AC ON
DC OFF
100%
ECO
Home
Settings
Information
Alerts

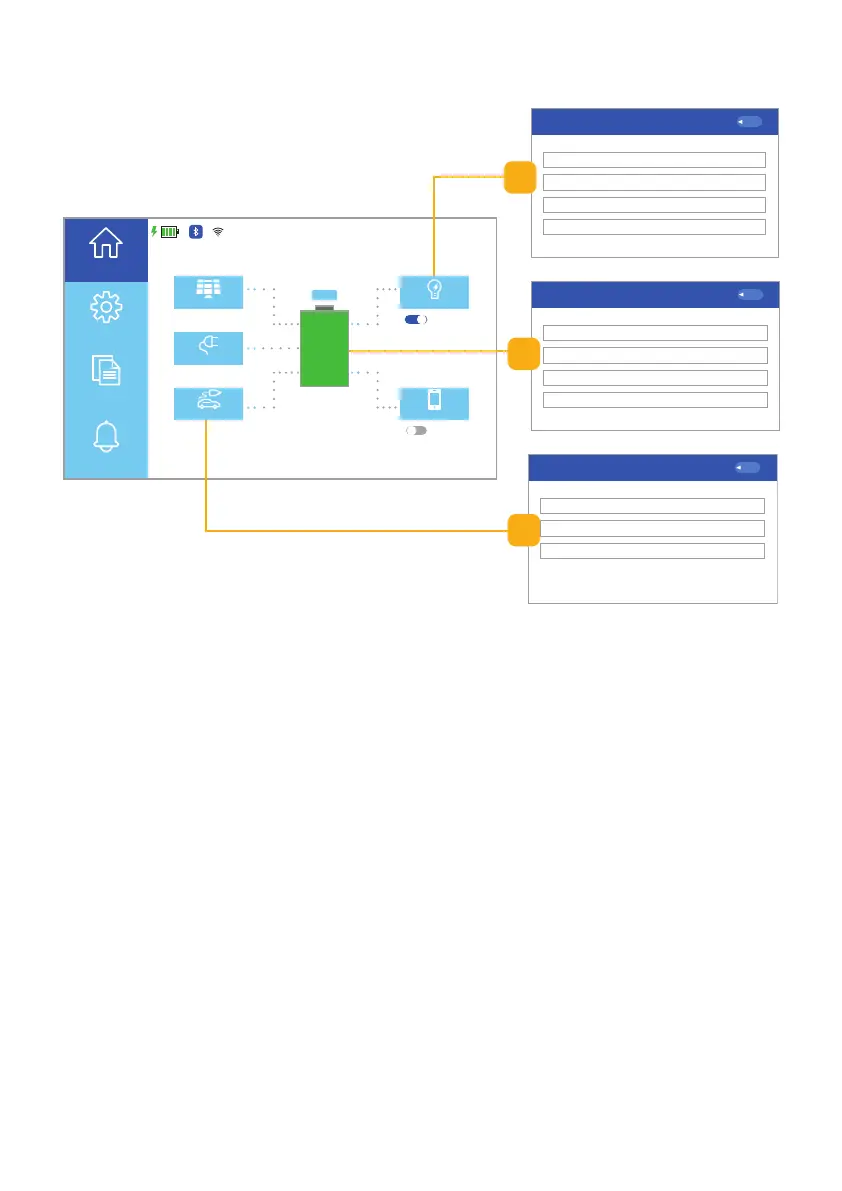

Fig. 6.7 Information screens
AC Output
Back
Loads 85 %
120.5 V
22.5 A
Voltage
Current
49.99 HzFrequency
Homepage UI screen (continued)
d
e
f
To Next Page
