Hyster A970 - Page 21

1. TIP ALIGNMENT (MUST BE WITHIN 3%
OF FORK LENGTH)
2. CRACKS
3. LATCH
4. HEEL OF FORK (MUST BE 90% OF DIMEN-
SION X)
5. CARRIAGE
6. LOAD BACKREST EXTENSION
7. MAXIMUM ANGLE 93°
8. FORK REMOVAL NOTCH

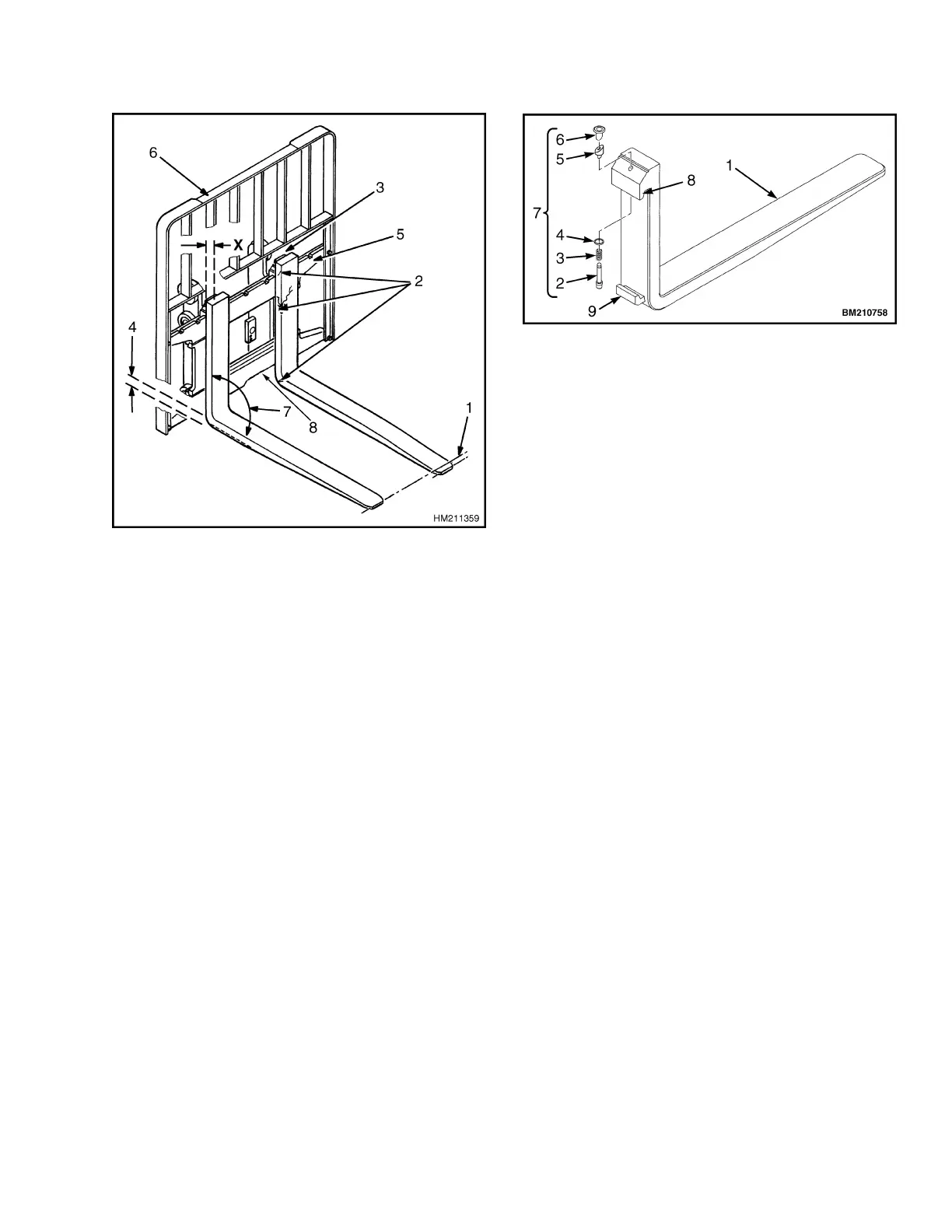

Figure 6. Forks Check
1. FORK
2. LOCK PIN
3. SPRING
4. WASHER
5. WEDGE
6. KNOB
7. LOCK PIN ASSEMBLY
8. TOP FORK HOOK
9. LOWER FORK HOOK
Figure 7. Fork Lock Pin Assembly
8000 SRM 1541 Maintenance Procedures Every 8 Hours or Daily
13
