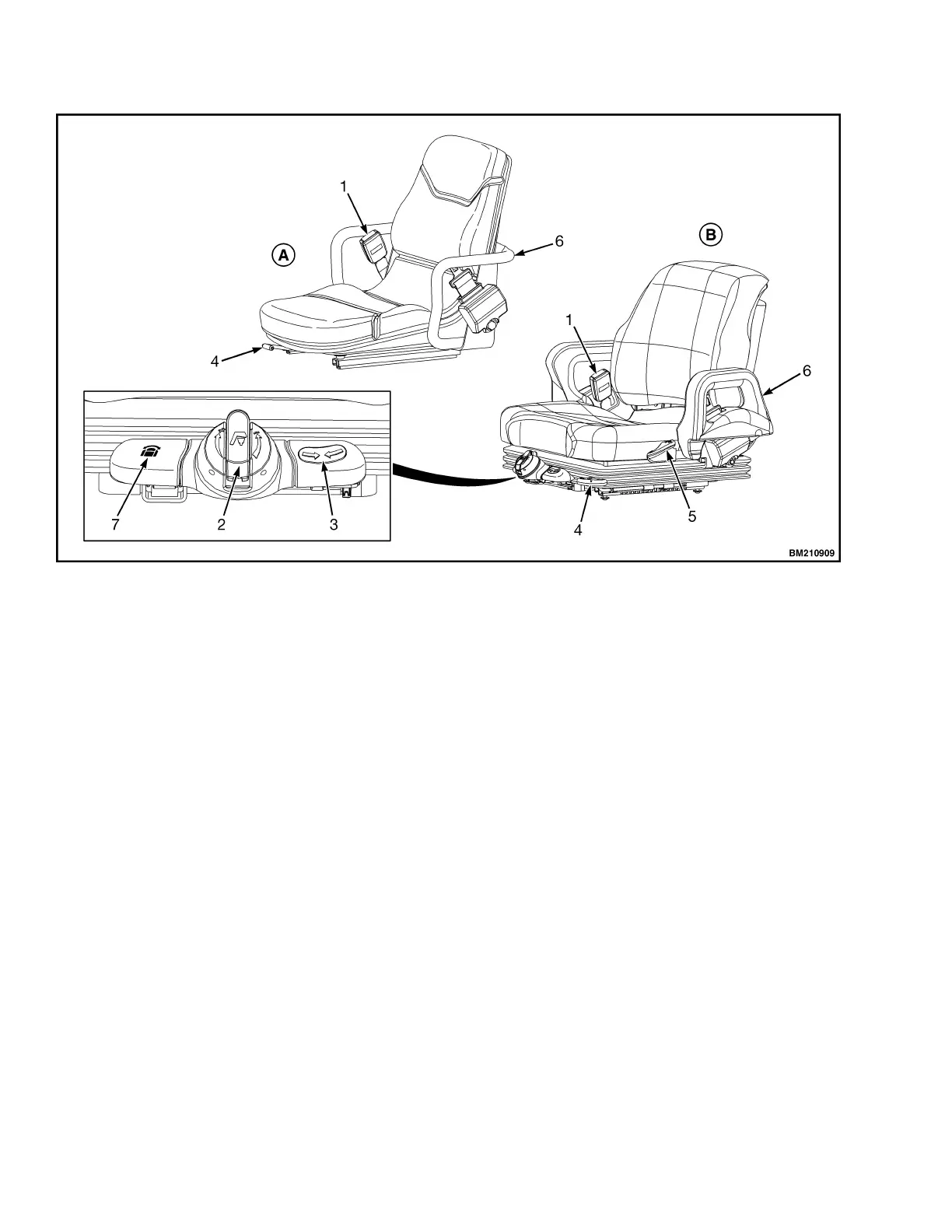

A. STANDARD, NON SUSPENSION SEAT B. FULL SUSPENSION SEAT
1. SEAT BELT
2. WEIGHT ADJUSTMENT HANDLE
3. RIDE POSITION INDICATOR
4. FORWARD/BACKWARD ADJUSTMENT LEVER
5. BACKREST ANGLE ADJUSTMENT LEVER
6. ARMREST
7. SWIVEL LATCH RELEASE LEVER
Figure 11. Seat Adjustment (Full Suspension and Swivel Seats)
Maintenance Procedures Every 8 Hours or Daily 8000 SRM 1541
18
