Installation
No.
Part Name
Radio Unit
BNC Antenna Connec
tor
Locking Knobs
Mounting Bracket
4.8 * 20 mm Self-
tapping Screws
6
Power Inlet
7
Black Power Cord
8
Red Power Cord
9
Fuse
0
Palm Microphone
Microphone Hanger
4 * 16 mm Self-tapping
Screws

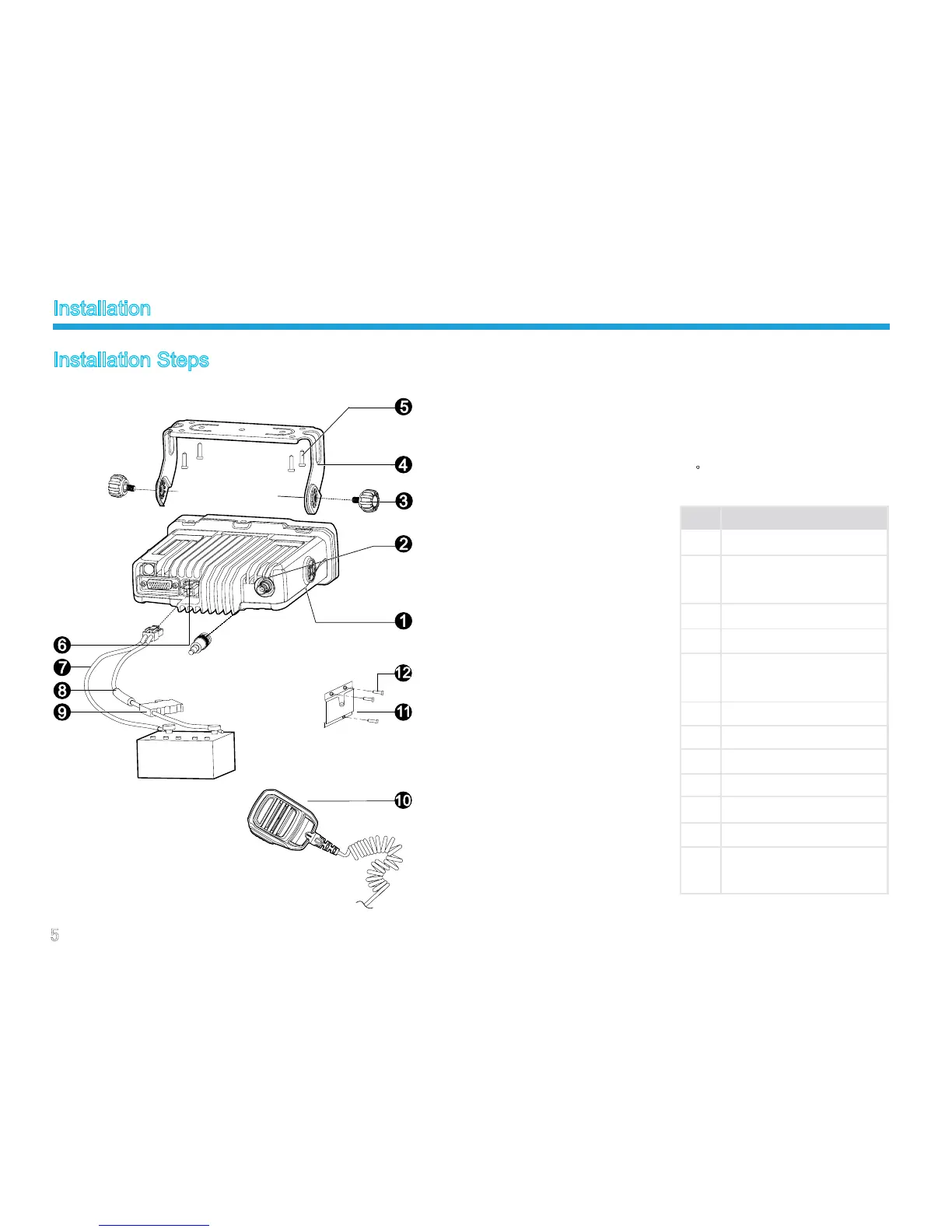

Installation Steps
A
B
C
D
E
I n s t a l l t h e b r a c k e t i n a
location where it’s easy to
operate the radio.
Connect accessories such as
antenna and power cord to
the radio.
S l i d e t h e r a d i o i n t o t h e
mounting bracket and secure
it using the locking knobs.
Install the microphone hanger
in a location where it’s easy
to reach the microphone.
Plug the palm microphone
into the microphone jack on
the front panel, and place it
on the hanger when you do
not use it.
To Next Page
