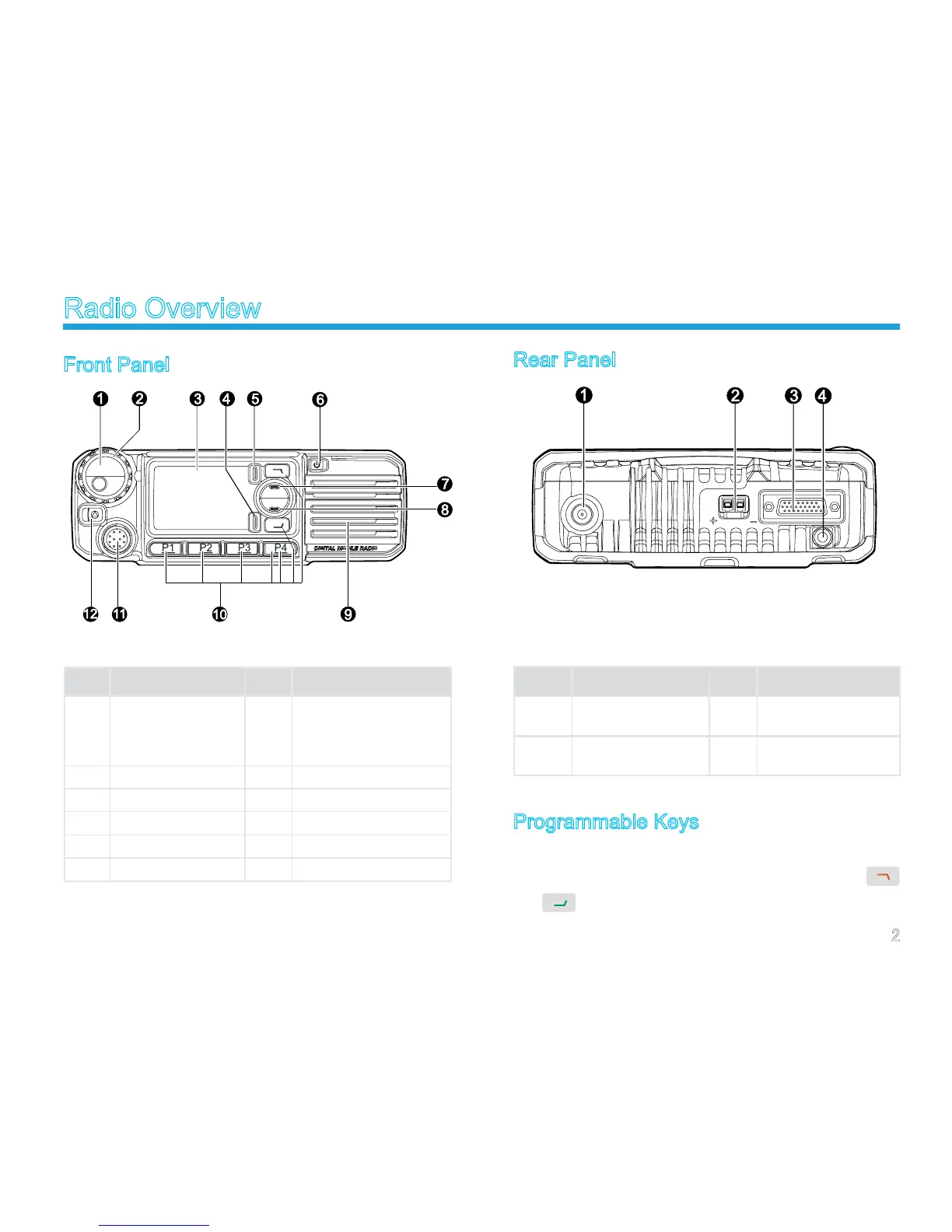

Radio Overview
Front Panel
No. Part Name No. Part Name
1
Volume Control /
Channel Selector
Knob
2 LED Indicator
3 LCD Display 4 OK/Menu Key
5 Back Key 6 Power On/Off key
7 Up Key 8 Down Key
9 Speaker 10 Programmable Keys
11 Microphone Jack 12 Emergency Key
Rear Panel
No. Part Name No. Part Name
1
BNC Antenna
Connector
2 Power Inlet
3 Accessory Jack 4
GPS Antenna
Connector
Programmable Keys
For enhanced convenience, you may request your dealer
to program the keys P1, P2, P3, P4, Emergency key,
and as shortcuts to the functions listed below:
