UHF1 (400‐470 MHz)
Block Diagram
35

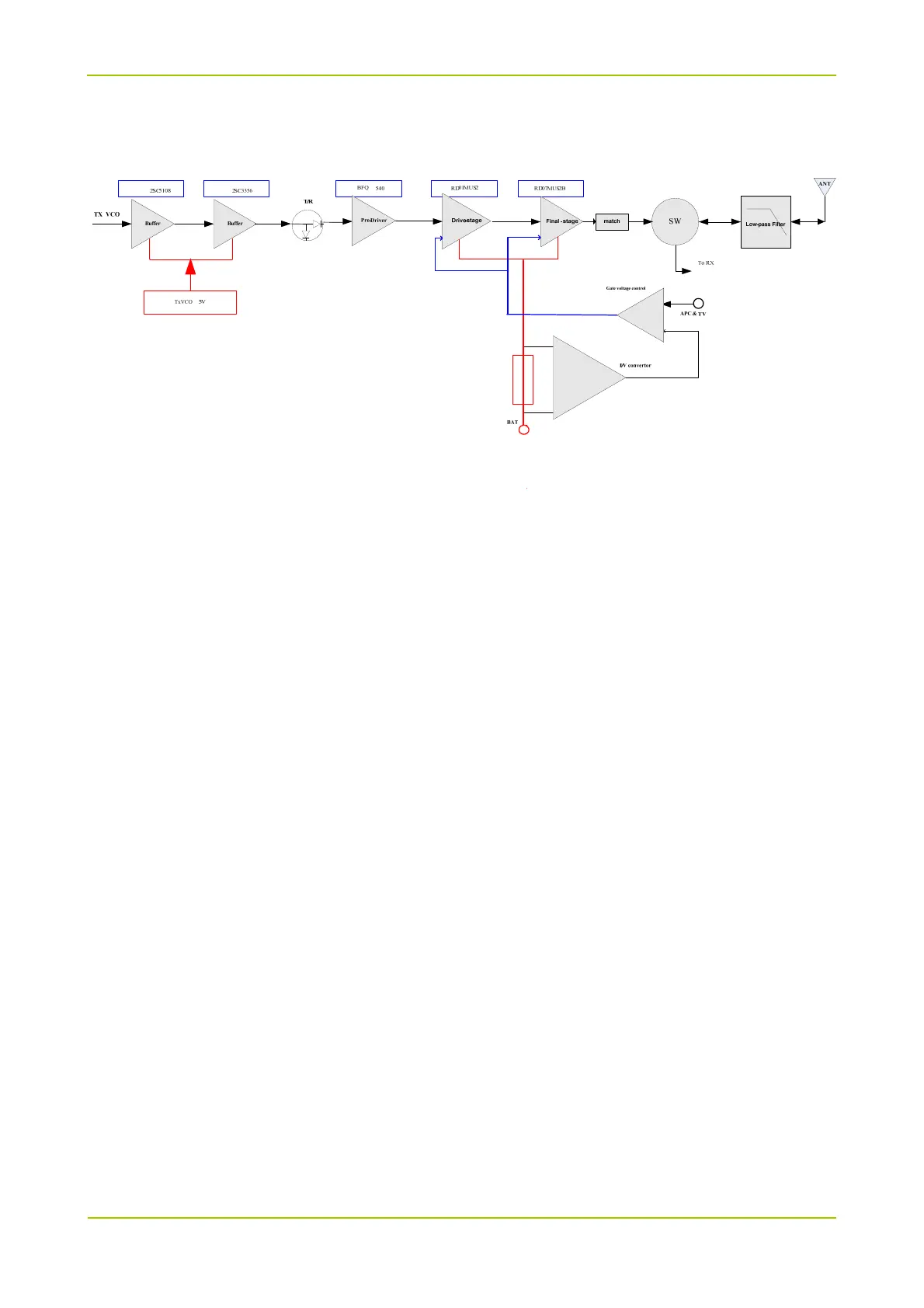

10.4 Block Diagram of Transmitter Circuit
Sampling Resistor
Subtracted
37
