Hytera PD415 - 3 Exploded View and Packing Guide; Exploded View

Exploded View and Packing Guide
VHF1 (136
‐
174 MHz)
4
3. Exploded View and Packing Guide

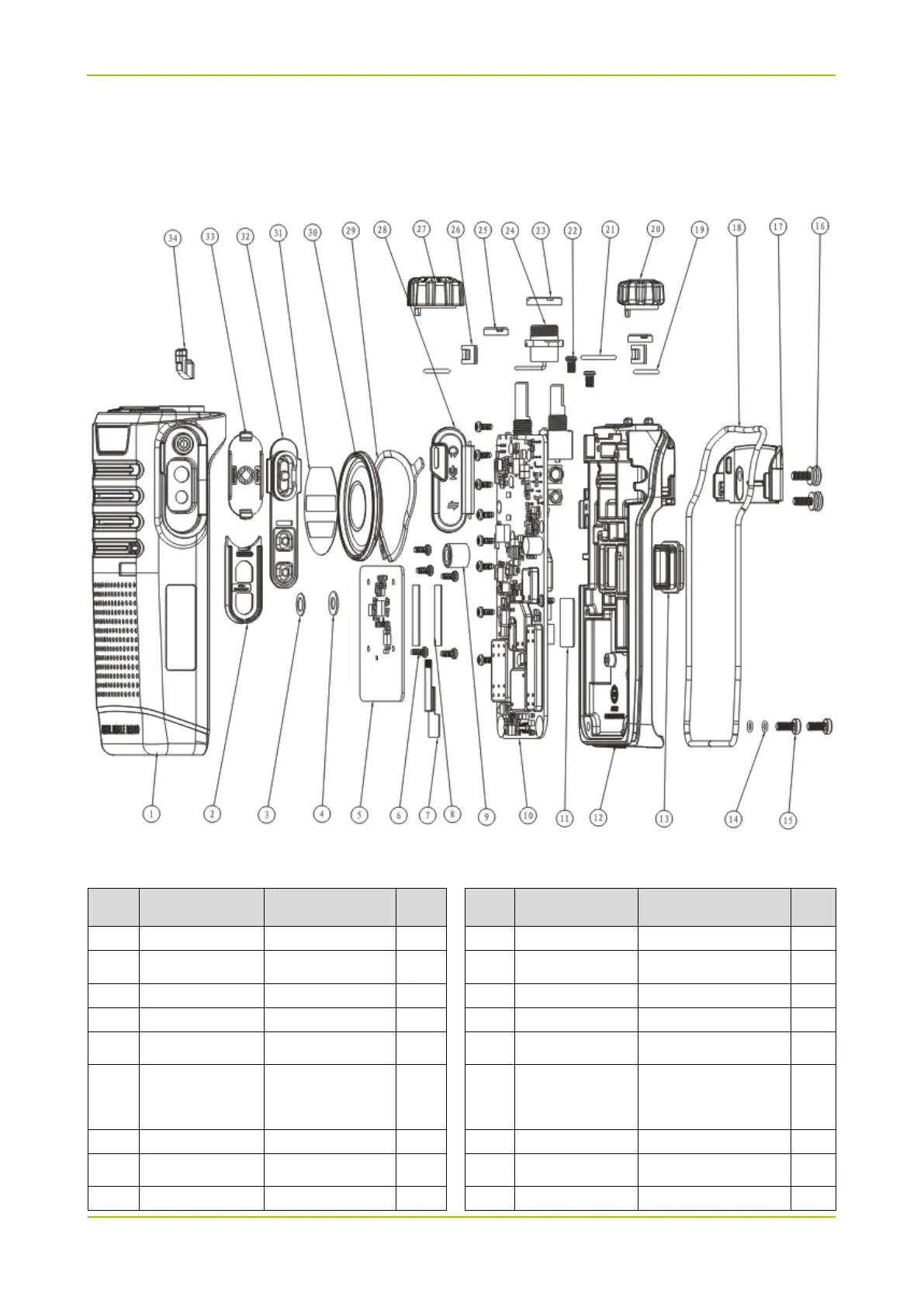

3.1 Exploded View
Parts list:
No. Part No. Description Qty. No. Part No. Description
Qty
.
1 6002448000000 Front Case 1 18 6100890100000 Main Waterproof Ring 1
2 6002337000000
Bracket for PTT
Key Cover
1 19 6100334000000
O-RING of Code
Switch
2
3 7400141000000 MIC Mesh 1 20 6001069000010 Volume Knob 1
4 7400329000000 MIC Pad 1 21 6100335000000 O-RING of Antenna 1
5 5499000001680 Patrol Module 1 22 7102504000300
Machine Screw
M2.5*4.0mm
2
6 7101904020200
Self-tapping
Screw (second
version)
ST1.9*4.0 mm
14 23 7209002501000 Antenna Nut 1
7 1300TD5100000 Patrol Board FPC 1 24 4400100036000 SMA RF Connector 1
8 7600136000000
Wave-absorbing
material
1 25 7206002500210 Nut of Volume Switch 2
9 6100345000000 MIC Cover 1 26 6201739000000 Knob Inner Lining 2
