Hytera PD415 - Page 69

UHF1 (400
‐
470 MHz)
Disassembly and Assembly
3

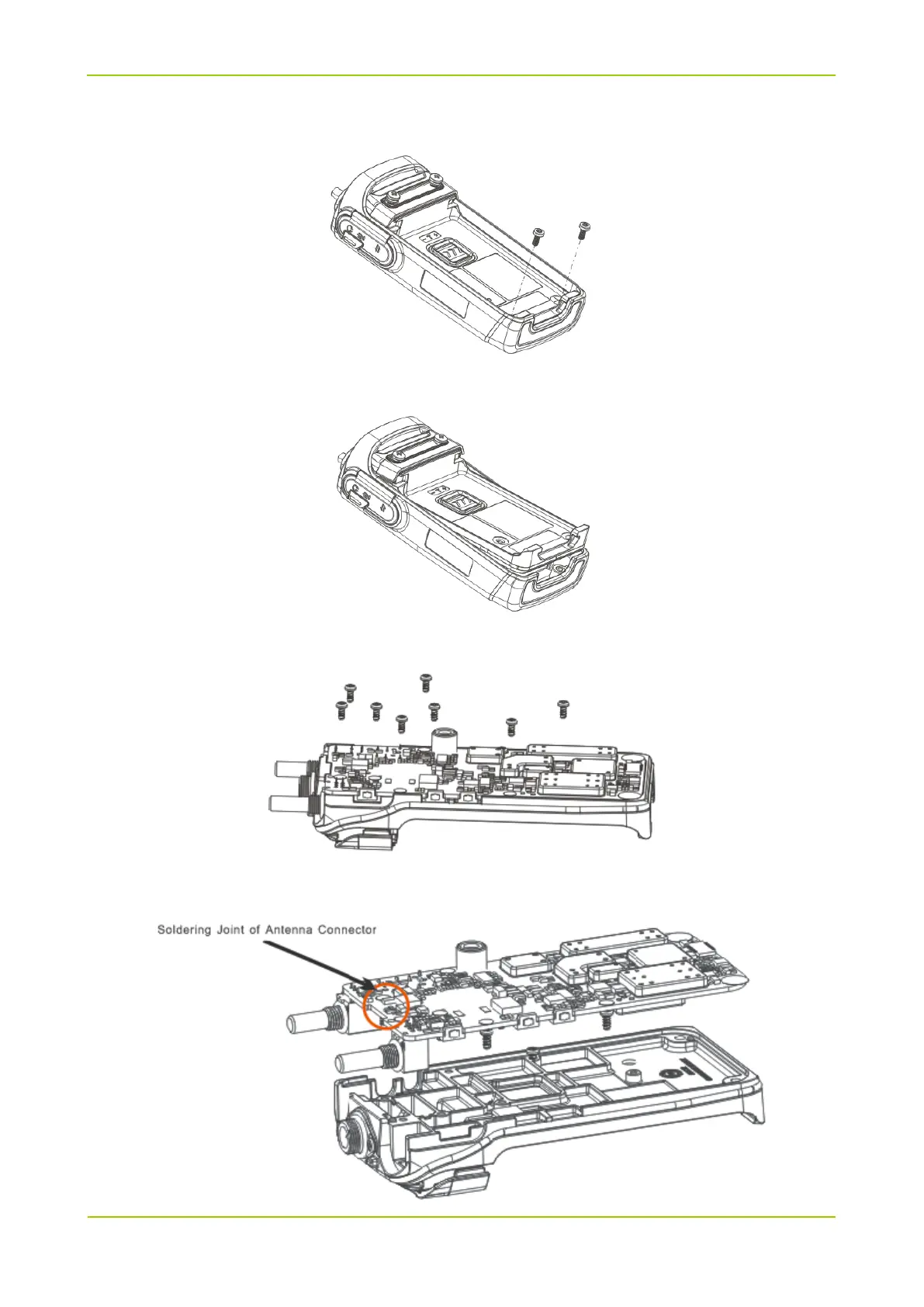

Step 4 Remove the two screws on the aluminum chassis.
Step 5 Remove the aluminum chassis and the main board.
Step 6 Remove the eight screws on the main board.
Step 7 Unsolder the soldering joint of the antenna connector and remove the main board.
