Hytorc LITHIUM Series Operation Manual

33
TIGHTENING WITH THE HYTORC WASHER DRIVER

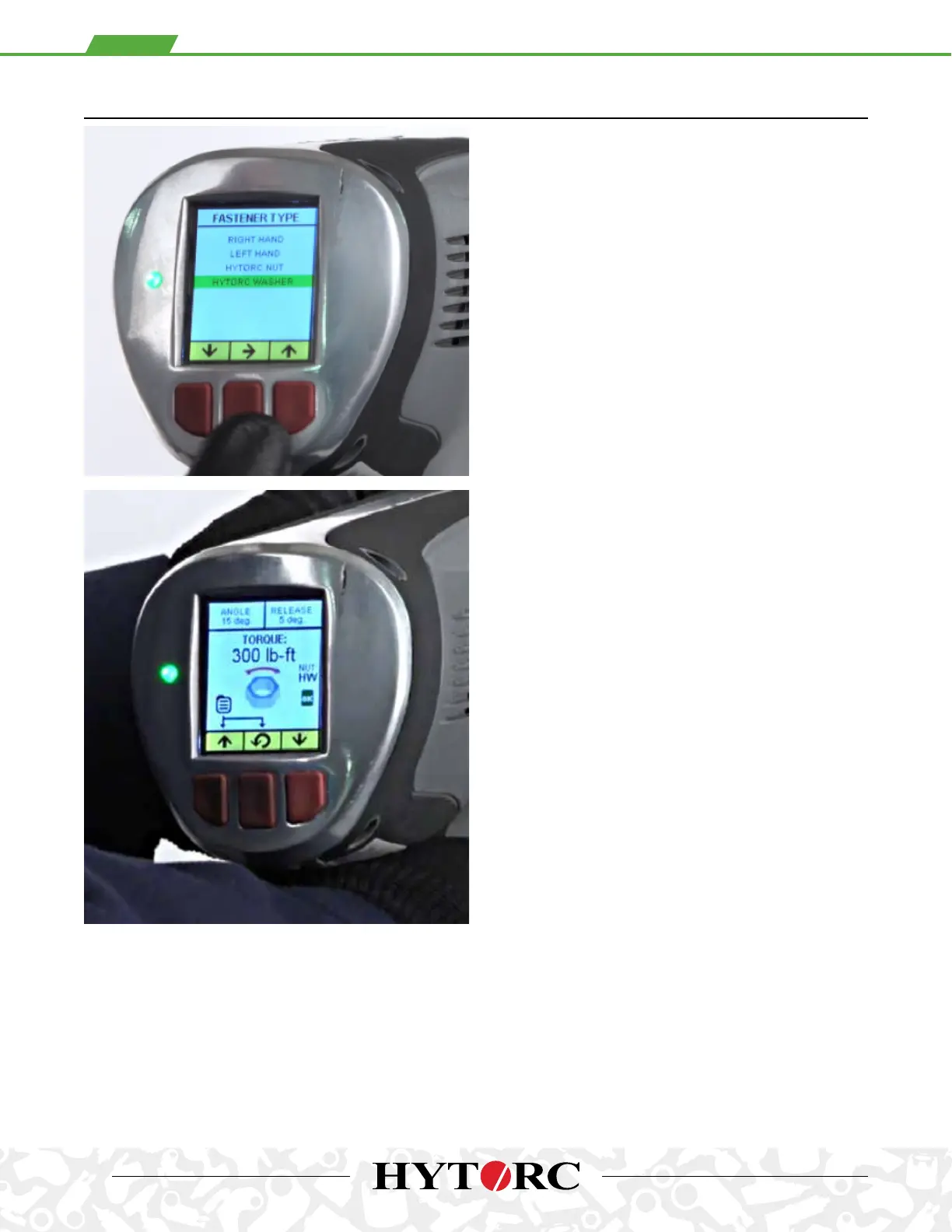

• Power on the tool, adjust tool settings and set the
fastener type to HYTORC WASHER.
• If necessary set the speed switch to Rundown to quickly
run down the nuts until they are flush against the flange.
Set the speed switch back to Torque.
• Position the tool over the nut and HYTORC Reaction
Washer.
• Pull the trigger to apply torque until the tool reaches the
desired torque and stops.
• If an Angle has been specified, continue holding trigger,
the tool will pause and restart after the angle delay.
• If a Release has been specified, continue holding the
trigger, the tool will pause and restart.
• Release the trigger after the tool has completed all
specified operations.
• During operation the status light will turn amber. If the
operation is successful the status light will turn green, if
unsuccessful the status light will turn red
• If the Beeper is enabled the tool will provide an audible
beep upon completion of the operations.
• Remove the tool from the nut.
• Should torque be applied without a release angle the
tool may lock onto the nut. If this happens set the tool to
Loosen to free the tool and repeat the tighten operation.
(CONT’D.)
