[3] Set parameters as shown below from now. Mode setting should be “Remote net [Ver. 1 mode].”

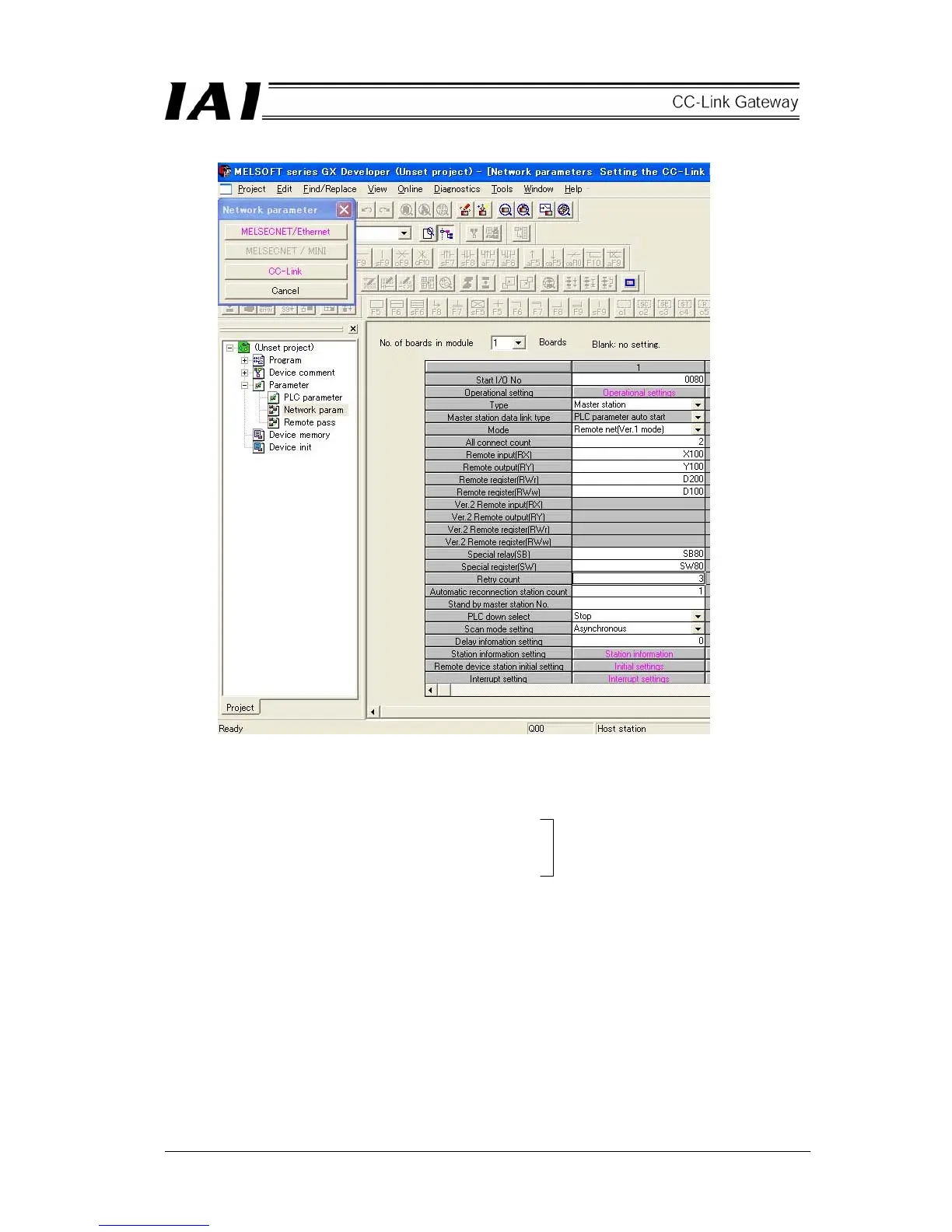

Parameters different from initial setting are as follows.
･ “Start I/O No”····················I/O address of master unit, 0080
･ “All connect account” ·······Number of remote stations, 2
･ “Remote input (RX) Refresh device” ·············· X100
･ Remote output (RY)·······································Y100
･ Remote register (RWr)···································D200
･ Remote register (RWr)···································D100
･ Special relay (SB) ·········································· SB80
･ Special register (SW) ····································· SW80
Install master station buffer
memory to an internal device
of the PLC-CPU.
