IAI RCM-GW-CC User Manual

25

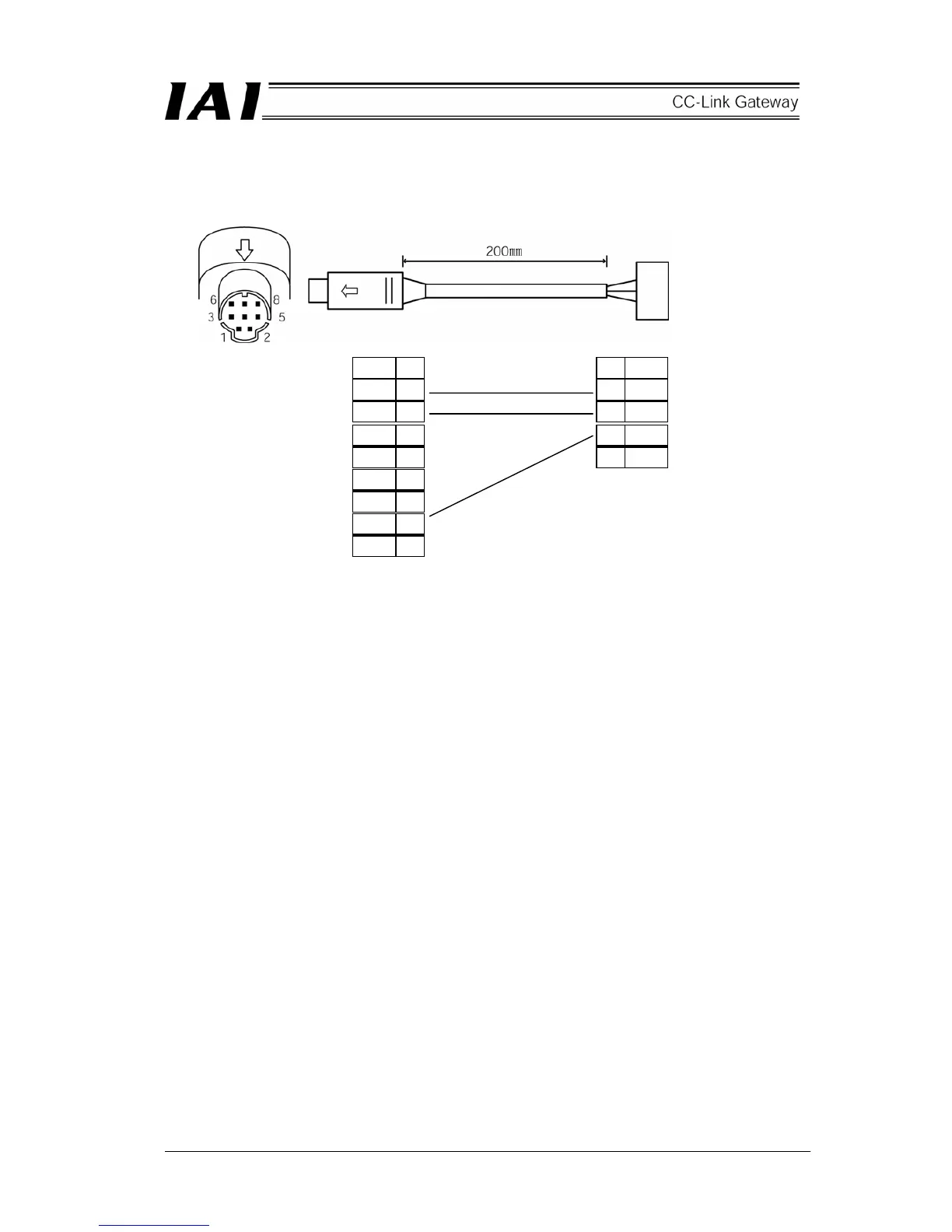

c. Controller Link Cable (CB-RCB-CTL002)
* Controller’s option
The following parts are provided together:
[1] Four-way junction
Model: 5-1473574-4, Manufacturer: MP, Quantity: 1
[2] E-Con connector
Model: 4-1473562-4, Manufacturer: MP, Quantity: 1
Compatible wire coating outline: 1.35-1.6mm
[3] Terminal resistor: 220Ω, 1/4W, with E-Con connector, Quantity: 1
Controller end
Mini DIN connector
E-Con connector
3-1473562-4
(Housing color: Orange)
No
1
2
3
4
Signal
SGA
SGB
GND
Signal
No
SGA 1
SGB 2
+5V 3
ENB 4
EMGA 5
+24V 6
GND 7
EMGB 8
Yellow
Orange
Blue
