(2) Remote register

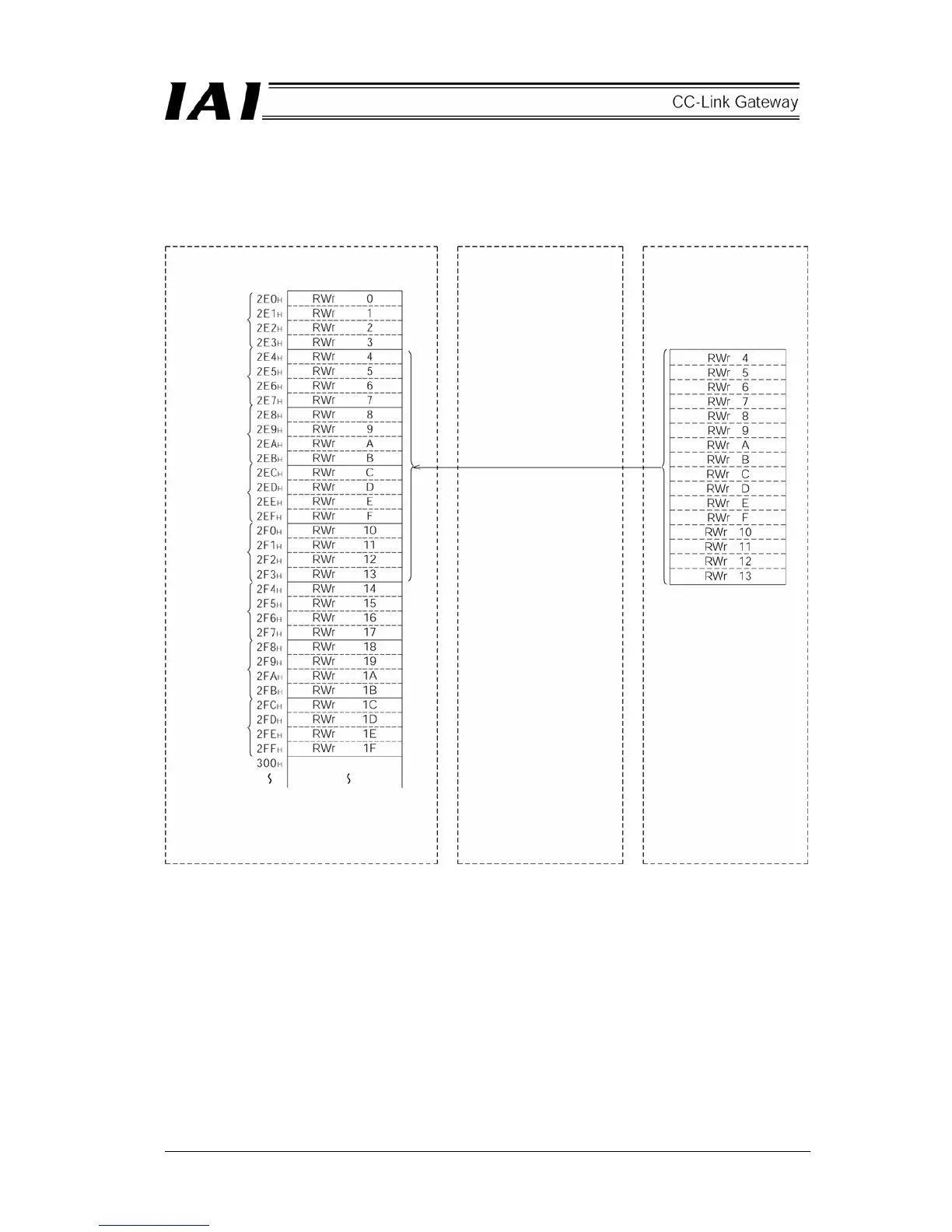

[1] Master station ← Gateway unit
Master station
Remote I/O station
(Station No. 1: Exclusive
one station)
Gateway unit
RCM-GW-CC
(Station No. 2: Exclusive
four stations)
Buffer address
Remote register
(RWr)
For station No. 1
For station No. 2
For station No. 3
For station No. 4
For station No. 5
For station No. 6
For station No. 7
For station No. 8
Output
