Advanced
 No. analog signals
Defining the number of analog signals for this module (max. 252).
 No. digital signals
Defining the number of analog signals for this module (max. 1024).
PROFINET
 Device
Assigning the module to device 0 or 1
 Slot
Assigning the module to a specific slot of the device.
9.2.3.2 “Analog“ tab

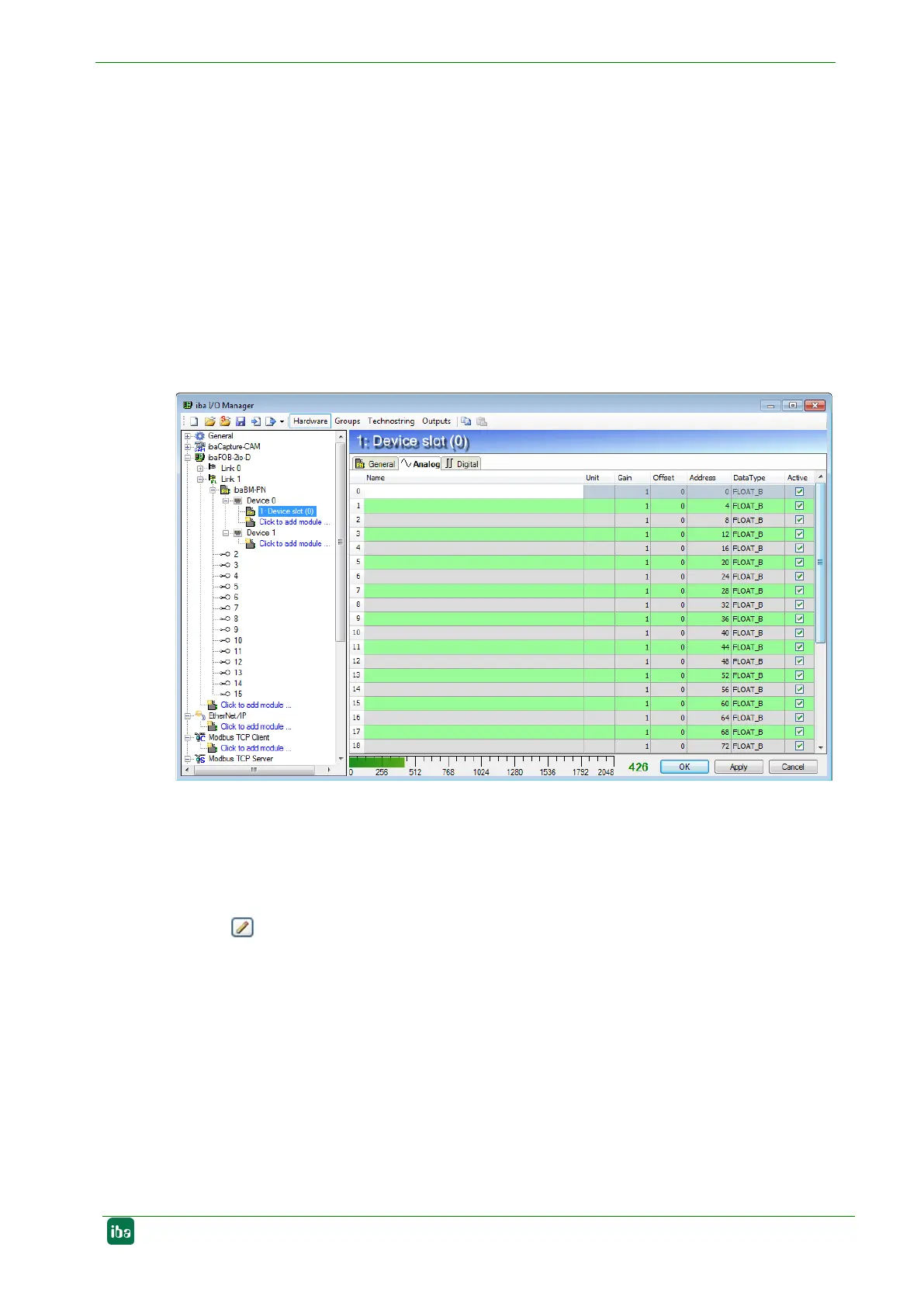

Figure 20: “Device slot“ module – “Analog“ tab
Enter the analog signals you want to acquire in sequential order here. The individual
columns in the signal list have the following meanings:
 Name
Here, you can enter a signal name and additionally two comments when clicking
the icon in the signal name field.
 Unit
Here, you can enter the physical unit of the analog value.
 Gain / Offset
Gradient (Gain) and y axis intercept (Offset) of a linear equation. You can convert a
standardized and unitless transmitted value into a physical value.
