9.2.8.2 „Analog“ tab

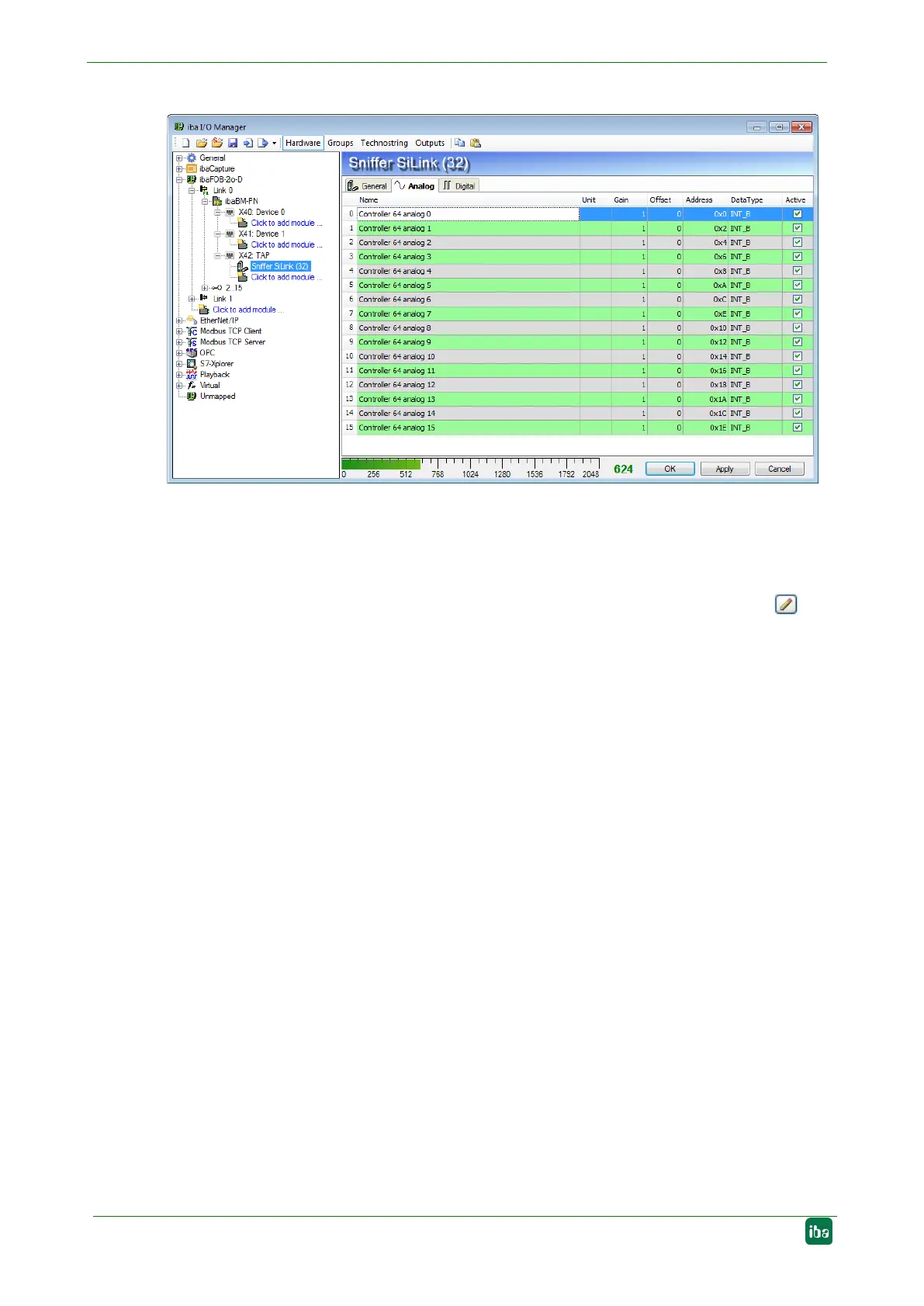

Figure 33: „Sniffer SiLink“ module – „Analog“ tab
Enter the analog signals you want to record in sequential order. The columns of the signal
list have the following meaning:
Name
You can enter a signal name and additional two comments when clicking the
symbol in the name field.
Unit
Physical unit of the signal
Gain / Offset
Gradient (gain) axis intercept y (offset) of a linear equitation. You can convert a
standardized and unitless transmitted value into a physical value.
Address
Byte address of the signal. The adress range starts with address 0.
Data type
see chapter 9.2.3.2
Active
Only when this option is selected, the signal is acquired and also considered when
checking the number of licensed signals.
