Containing the following IO modules:

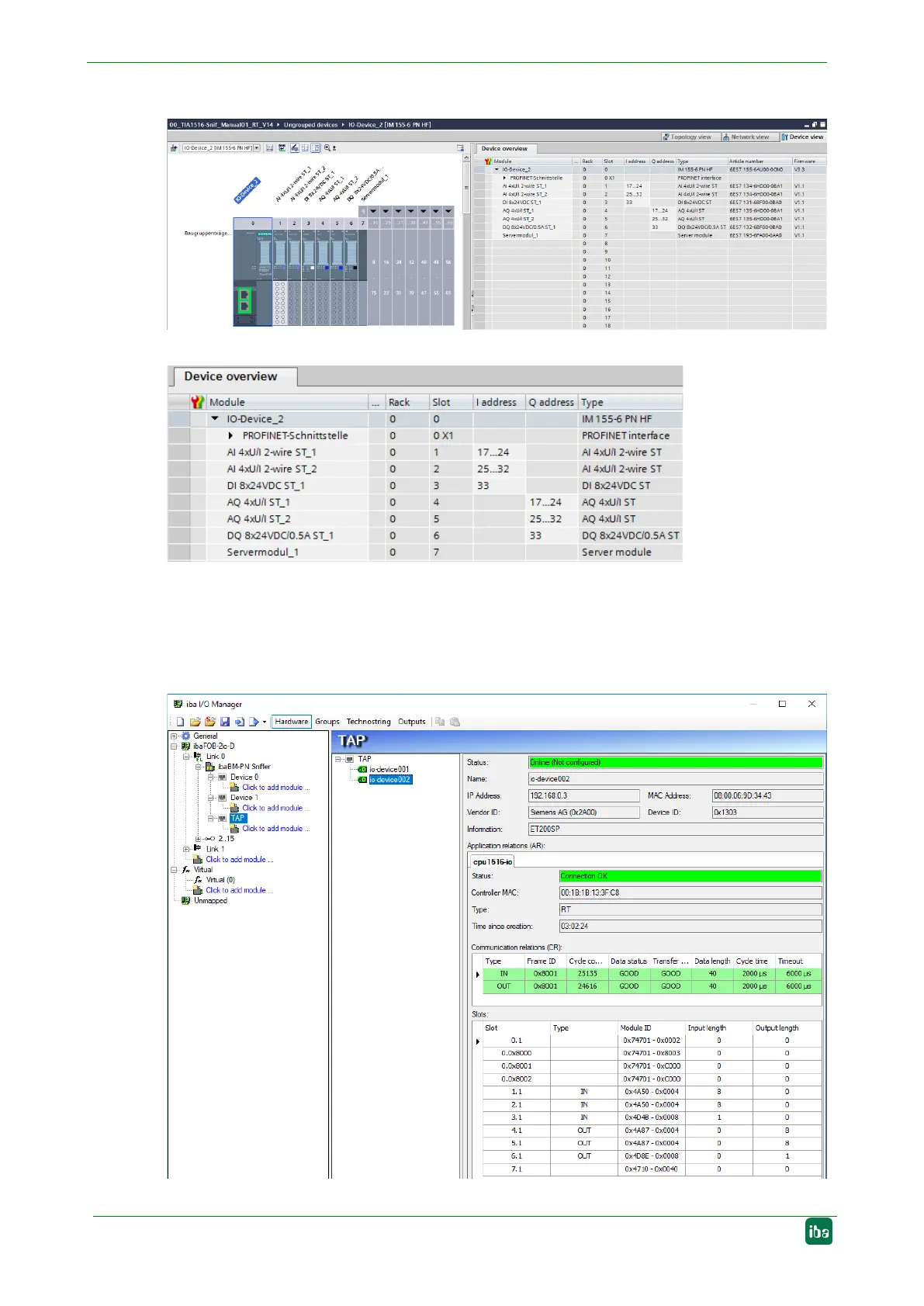

Figure 48: Configuration IM155-6 PN
Figure 49: Slot / subslot configuration
After rebooting the CPU resp. restoring the network connection, the list of all detected
PROFINET devices is available under the „TAP“ node (see Figure 47: Network overview
and PROFINET device name) as well as the list of the configured slots (see Figure 48:
Configuration IM155-6 PN and Figure 49: Slot / subslot configuration).
