IBC AHU Series User Manual

AHU 1600 - Heating Capacity (Entering Dry Bulb Temperature 70°F) @ 1600 CFM
Entering Water Temperature 3 GPM 4 GPM 5 GPM
195°F (90°C) 96.9 MBH 106.7 MBH 113.2 MBH
190°F (88°C) 92.9 MBH 102.3 MBH 108.6 MBH
180°F (82°C) 84.9 MBH 93.5 MBH 99.3 MBH
170°F (77°C) 77 MBH 84.8 MBH 90 MBH
160°F (71°C) 69.1 MBH 76.1 MBH 80.8 MBH
150°F (66°C) 61.2 MBH 67.4 MBH 71.6 MBH
140°F (60°C) 53.3 MBH 58.8 MBH 62.5 MBH
130°F (54°C) 45.5 MBH 50.2 MBH 53.4 MBH
120°F (49°C) 37.7 MBH 41.6 MBH 44.3 MBH
110°F (43°C) 30 MBH 33.2 MBH 35.3 MBH
Table 3 Heating Capacity rating at 1600 scfm (cubic feet / minute) - AHU 1600

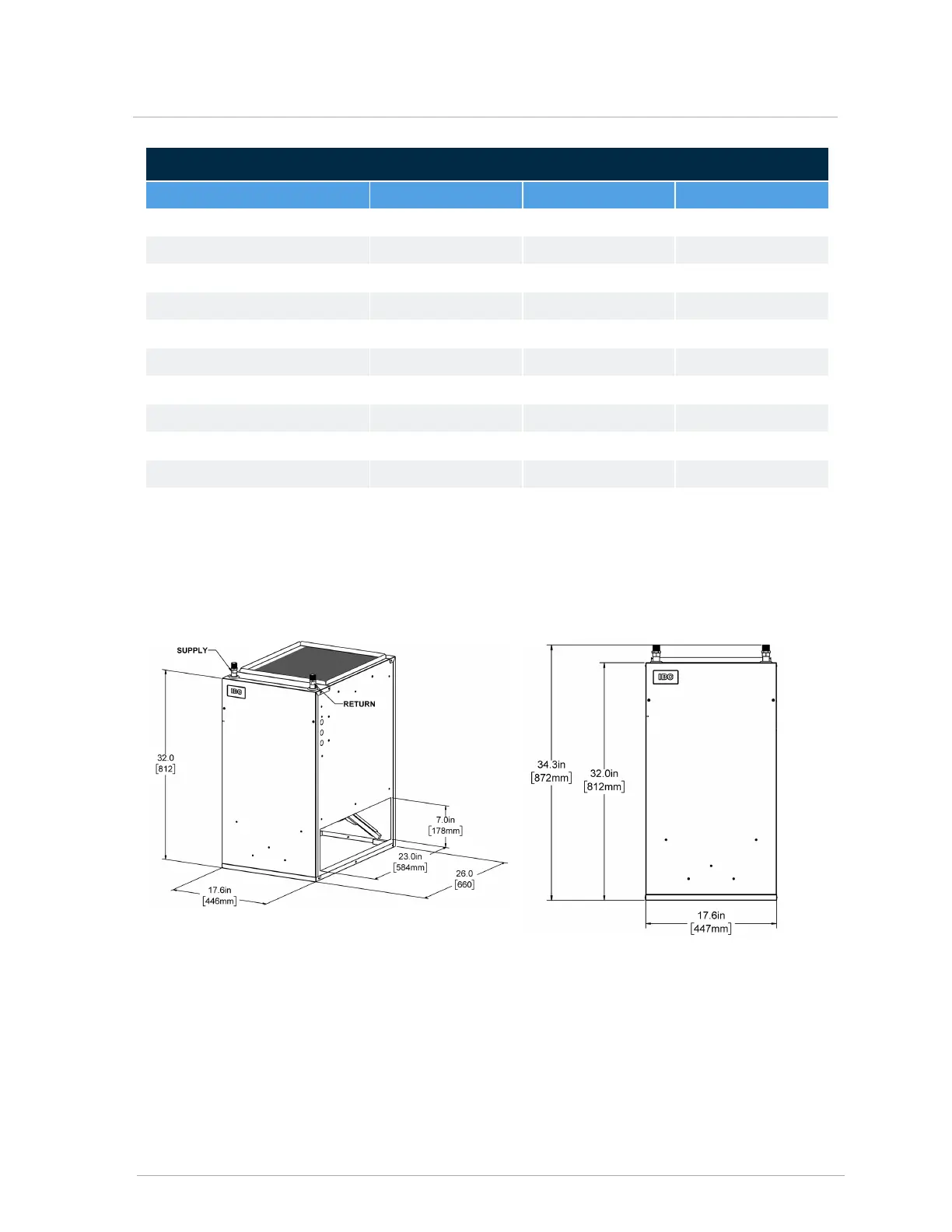

Cabinet and air supply dimensions
Dimensions for the AHU 800 model
Figure 1 Supply and return air, boiler supply and return Figure 2 Frontal view
