Nonport side of the switch

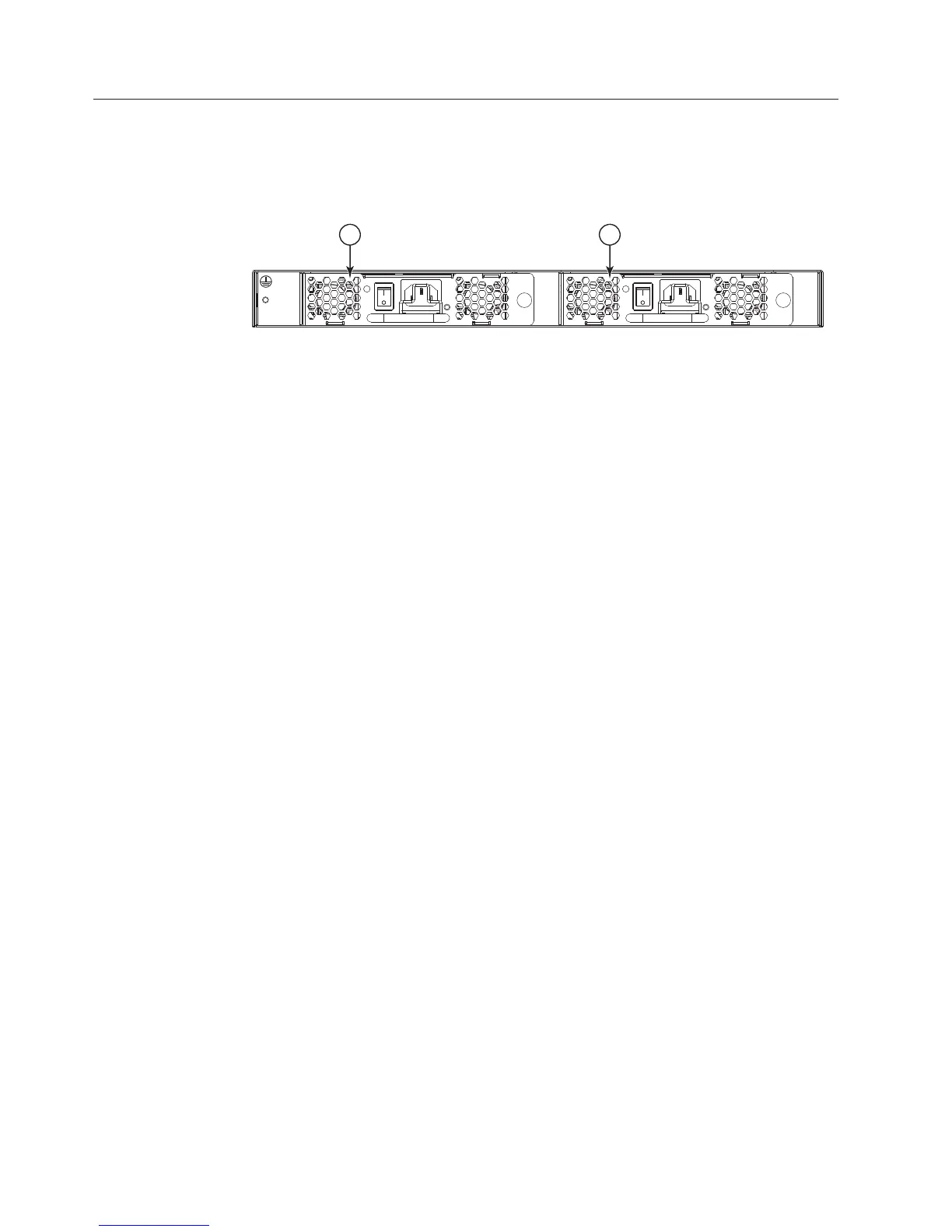

Figure 2 shows the non-port side of the switch, which contains the combination
power supply / fan assemblies. These assemblies include the AC power receptacle
and AC power switch.
1 Power supply/fan
assembly #2
2 Power supply/fan assembly #1
1
2
b48f007
Figure 2. Non-port side of the switch
4 SAN48B-5 Installation, Service, and User Guide
