Installing 8 Gbps SFP+ transceivers with wire bails
1. Making sure that the bail (wire handle) is in the unlocked position, place the 8
Gbps SFP+ in the correctly oriented position on the port, as shown in Figure 9.
2. Slide the SFP+ into the port until you feel it click into place; then close the bail.
3. Orient a cable connector so that the key (the ridge on one side of the connector)
aligns with the slot in the transceiver (see Figure 10). Then, insert the cable into
the transceiver until the latching mechanism clicks.
4. Connect the other end of the cable to the appropriate device.
Refer to “Planning for cable management” on page 7 for suggestions on organizing
cables.
!
b48f012

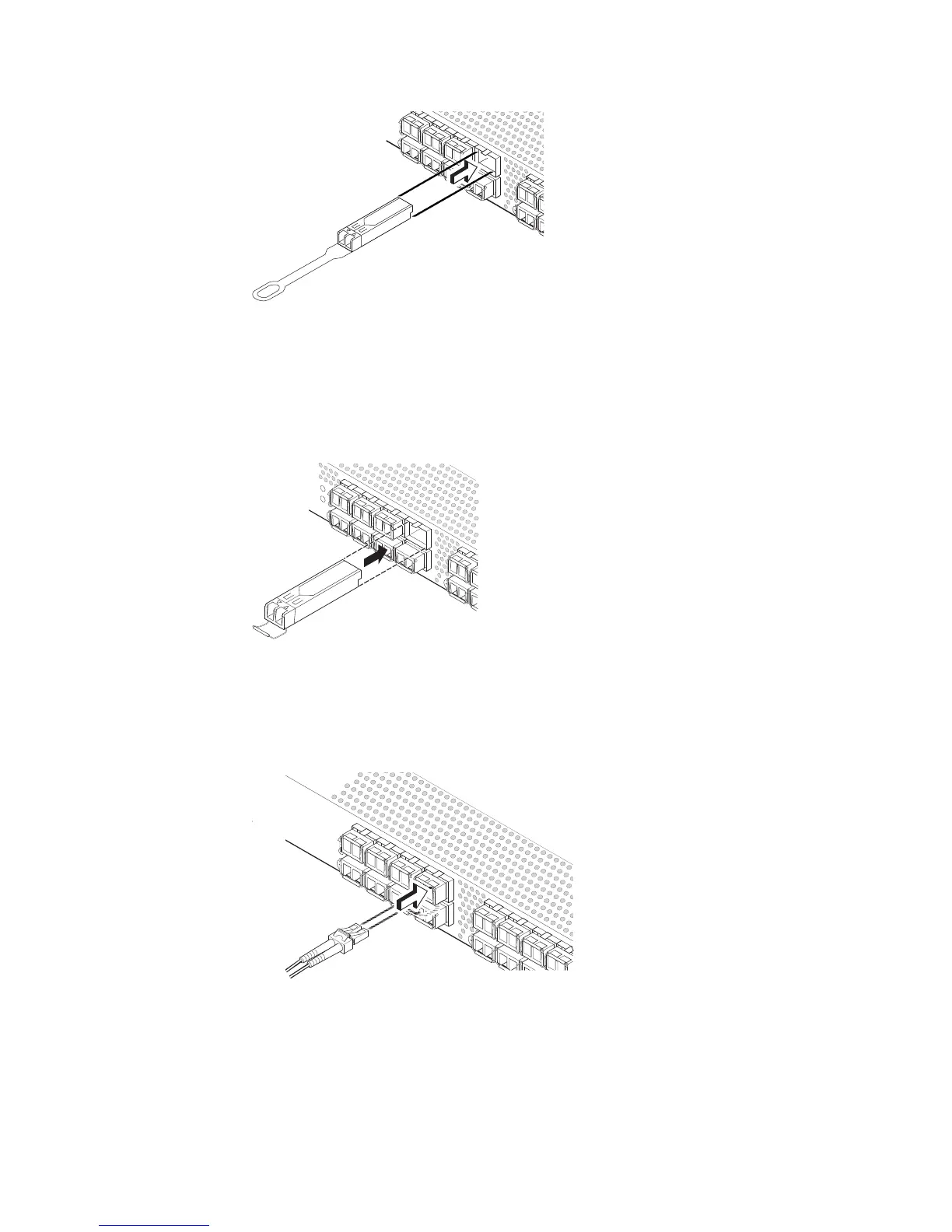

Figure 8. Installing a 16 Gbps SFP+ with pull tab (shown without cable attached)
!
b32e4008
Figure 9. SFP+ with wire bail latch
!
b48f013
Figure 10. Installing a cable
20 SAN48B-5 Installation, Service, and User Guide
